24V LED Strips, FOOD/SHOP SPECIAL LED STRIPS
10mm LED CRI Food flex stripe Bread, 24V 14,4W, IP20, 5m roll, 140LED/m
Out of stock status:
7-14 Days

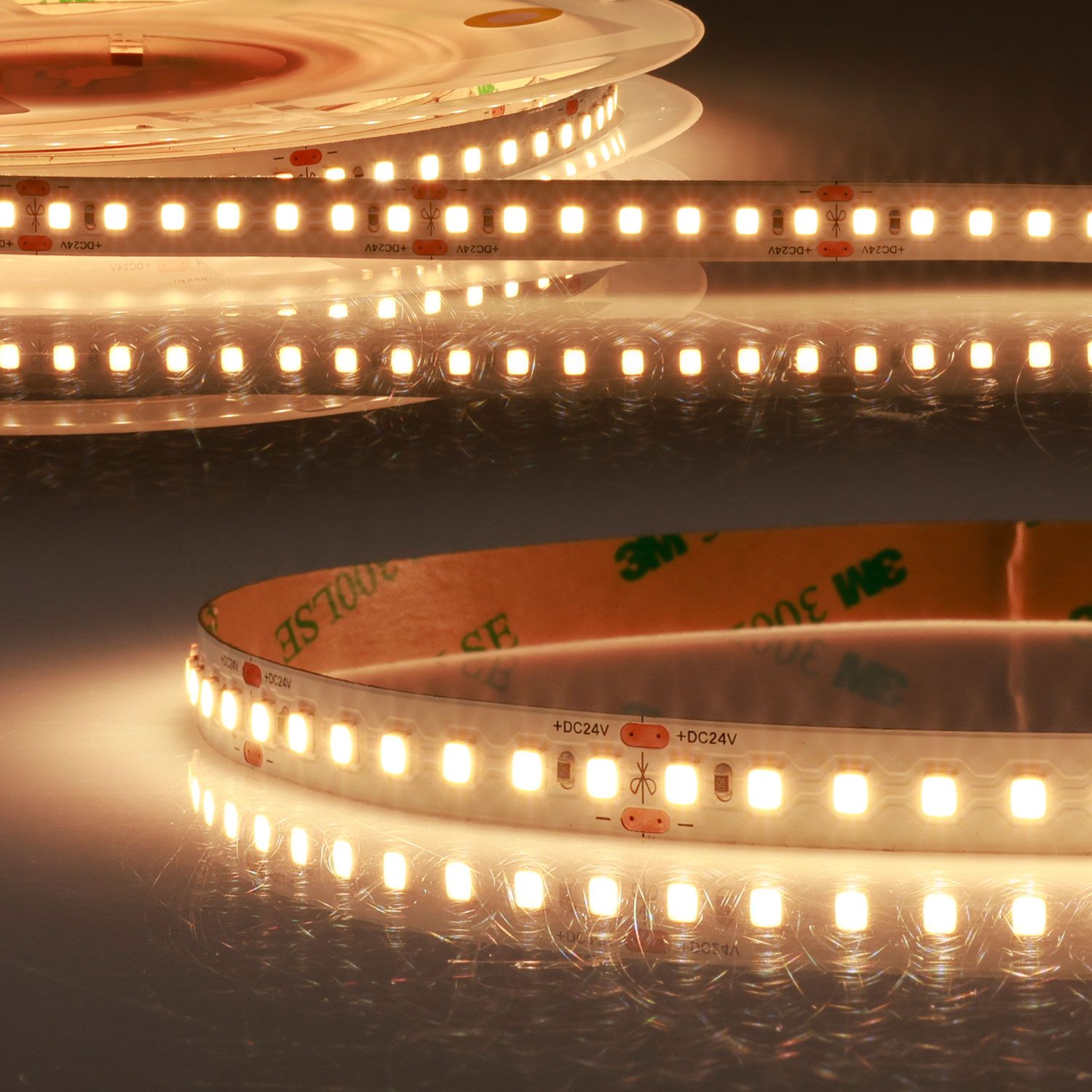

10mm LED CRI97 Food flex stripe Bread 2700K, 24V DC, 14,4W, IP20, 5m roll, 140LED/m
94,00 €
Price without 24% VAT: 75,81 €
| Product description | LED CRI97 Food flex stripe Bread, 24V DC, 14,4W, IP20, 5m roll, 140 LED/m |
|---|---|
| GTIN – EAN | 9009377095382 |
| Features |       |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14,4 W/m |
| Active power | 14,4 W/m |
| RGB light source | No |
| Color temperature | 2700K |
| CRI Ra | 97 |
| Beam angle | 120° |
| Dimmable | Yes |
| Protection class | IP20 |
| Outdoor | N |
| Permissible ambient temp. | -20°C – 45°C |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 140,000000 |
| LED/roll | 700,00 |
| Properties of connection cable | Connection cable in one end |
| Matching connectors | C1-210 / C2-210 / K1-210 / K2-210 |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 7,000000 |
| Pitch SMD (mm) | 7.69 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 3 |
Data
| Height (mm) | |
|---|---|
| Working temperature | |
| In stock (Vana-Tartu mnt 79A) | No |
| Length (mm) | |
| LEDs count x type | |
| Input voltage | |
| Beam angle | |
| Lifetime L70 | |
| Width (mm) | |
| Dimmable (adj. brightness) | |
| IP class | |
| Color Rendering Index | |
| Light Color | |
| Light output- Lumens | |
| Power consumption | |
| Brands | |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
