24V LED Strips, COLOR LED strips
LED CRI9P Linear10 24V 15W pink 280LED/m 5m strip
Out of stock status:
7-14 Days
Separation point: 25mm with 7 SMD each | Pitch (chip centre to centre).LED CRI9P Linear10 24V 15W pink 280LED/m 5m strip
99,00 €
Price without VAT: 81.15 €

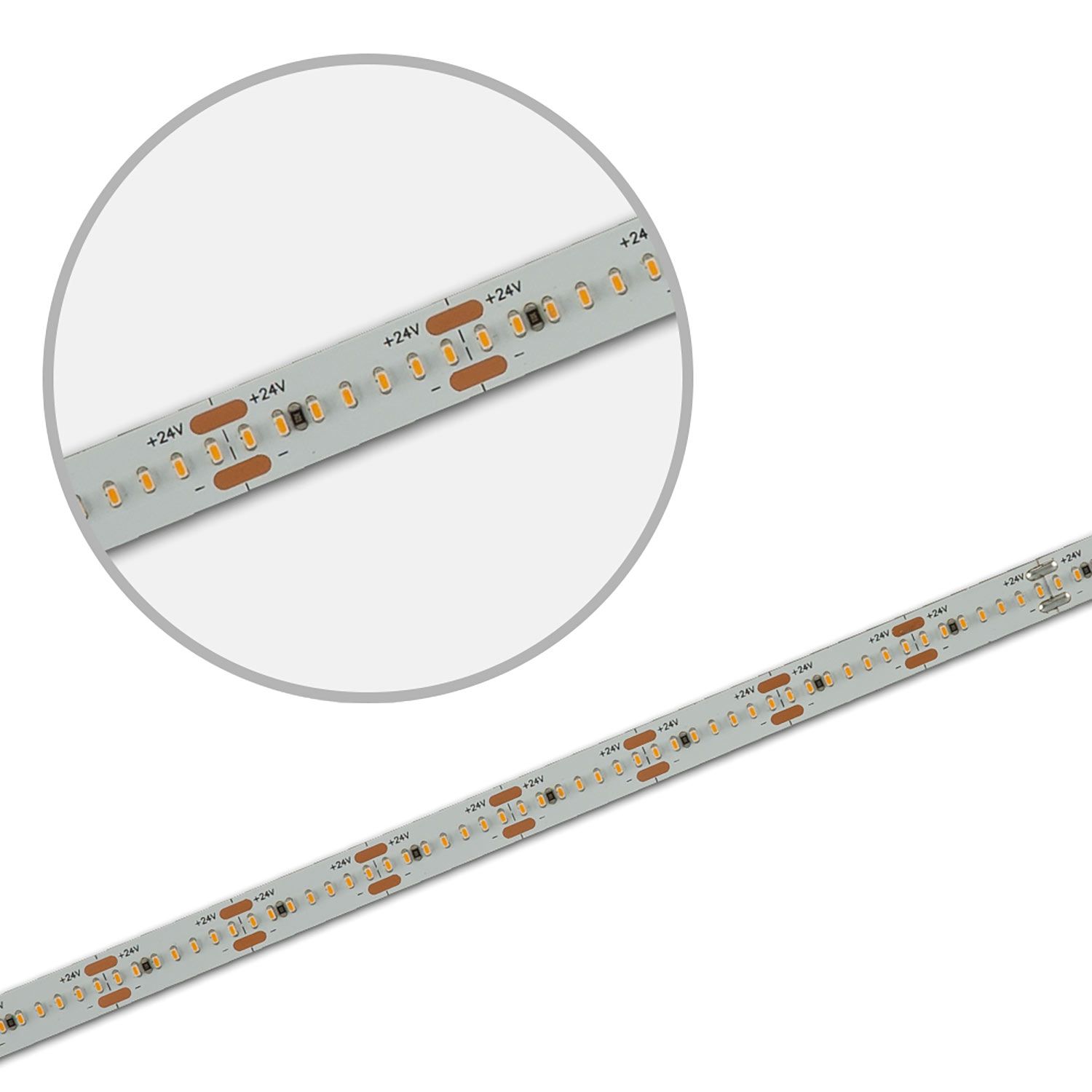

| Product description | LED CRI9P Linear10 flex stripe, 24V DC, 15W, IP20, pink, 5m roll, 280 LED/m |
|---|---|
| GTIN – EAN | 9009377069796 |
| Features |     |

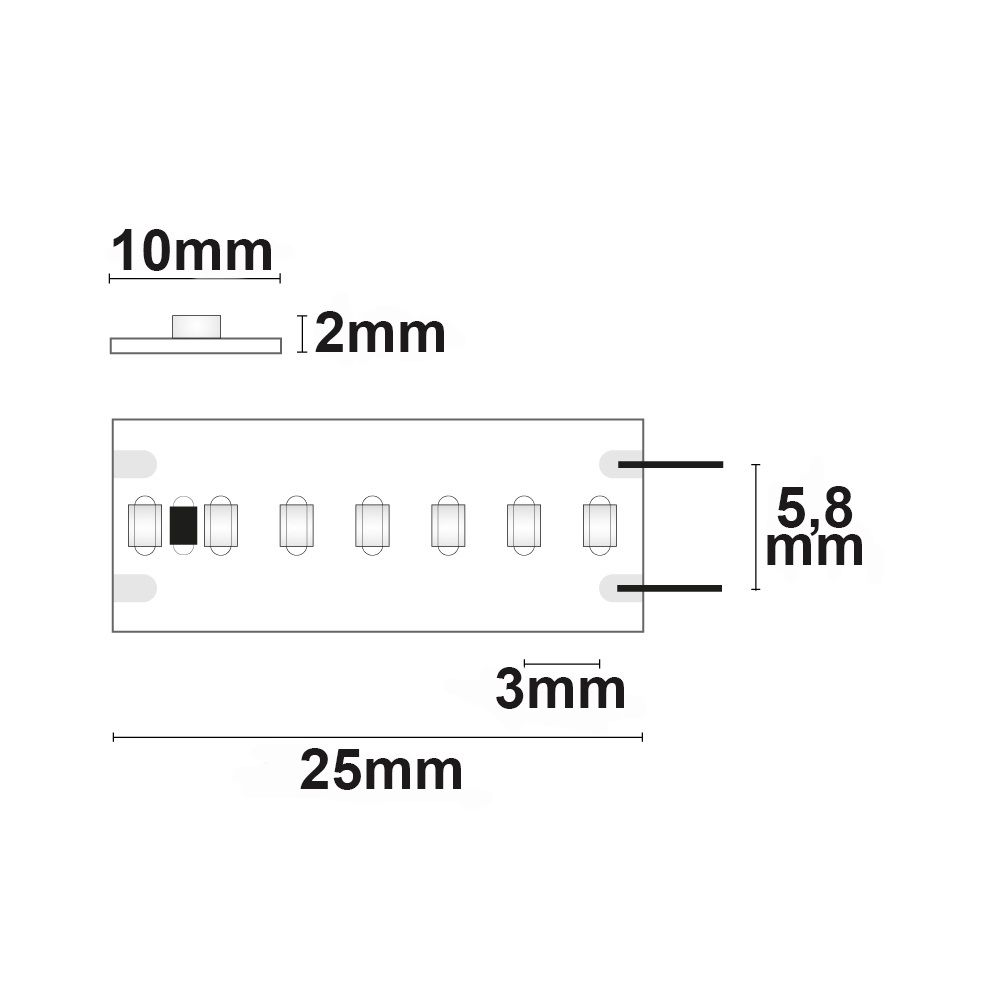

| Special features | Separation point: 25mm with 7 SMD each | Pitch (light point center-center): 3,57mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 |
| Nominal voltage | 24 V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| RGB light source | Yes |
| CRI Ra | 85 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C – 45°C |
| LED chips per metre | 280.000000 |
| LED/roll | 1.400,00 |
| Matching connectors | K2-210 |
| Separation point (mm) | 25.00 mm |
| LED/disconnection point | 7.000000 |
| Pitch SMD (mm) | 3.57 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
