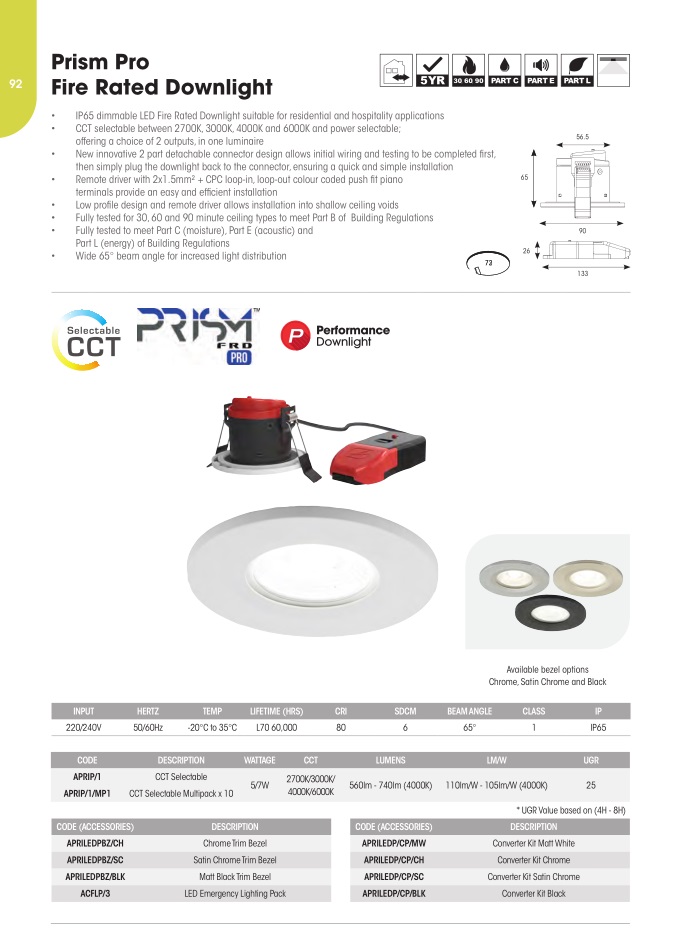

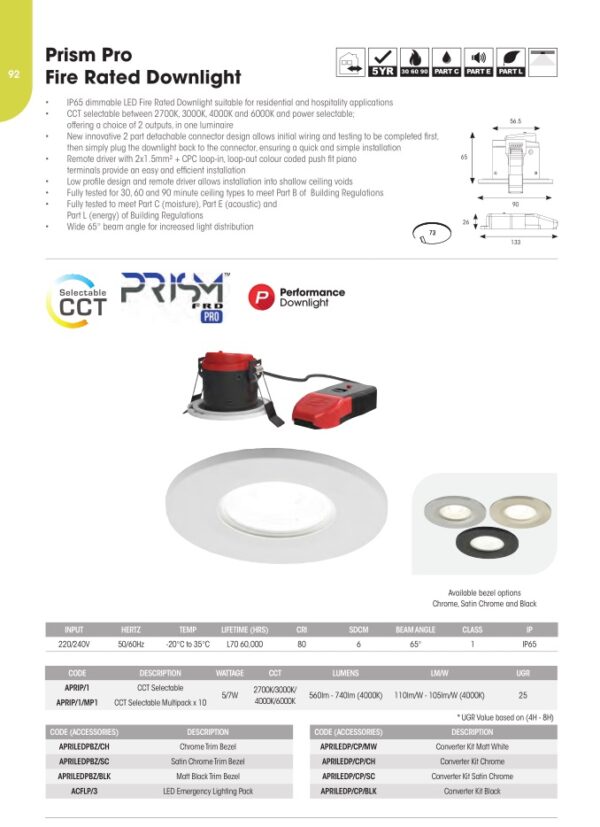

LED Downlight 5W/7W CCT 690lm 65° Dim PRISM PRO™

• IP65 dimmable LED Fire Rated Downlight suitable for residential and hospitality applications
• CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
• New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
• Remote driver with 2×1.5mm² + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
• Low profile design and remote driver allows installation into shallow ceiling voids
• Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
• Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
• Wide 65° beam angle for increased light distribution

GENERAL INFORMATION
Wattage 5W – 7W
Lumens Delivered 560lm – 740lm
Lm/W 110lm/W – 105lm/W
Beam Angle 65
CRI 80
CCT 2700/3000/4000/6000K
Input 220-240V
Operating Temp -20°C – 35°C
SDCM 6
UGR 25
Cut-Out Size 73mm
Product Weight without Packaging 0.285 kg

TECHNICAL INFORMATION
Light Source LED
Colour / Finish White
Fire Rated Yes
IP Rating IP65
Class Protection 1
Internal / External Internal
Surface / Recessed / Suspended Recessed
Lumen Depreciation L70 60,000h
Warranty (Years) 5
CE Mark Yes
Diameter 90 mm
Height 62 mm

Category Downlights
Application Ancillary, Hospitality, Residential, Retail

Specification Architectural

Ansell Prism Pro Fire Rated CCT Dual Wattage Downlight: A Lighting Powerhouse with Versatility and Ease

The Ansell Prism Pro Fire Rated CCT Dual Wattage Downlight is a game-changer in the downlighting world. It’s not just a light; it’s a feature-packed powerhouse that combines cutting-edge technology, incredible versatility, and user-friendly design, making it the perfect choice for both residential and hospitality applications.

Unmatched Versatility:

• Adjustable Color Temperature and Wattage: Imagine having four downlights in one! This innovative fixture lets you switch between four color temperatures (2700K warm white, 3000K cool white, 4000K neutral white, and 6000K daylight white) and two wattages (5W and 7W) to create the perfect ambiance for any occasion. Want warm, cozy lighting for a relaxing evening? Choose 2700K at 5W. Need bright, functional light for a kitchen workspace? Opt for 6000K at 7W. The possibilities are endless!

Effortless Installation:

• Detachable Connector Design: Gone are the days of struggling with fiddly downlight installations. The Prism Pro boasts a revolutionary two-part detachable connector. Simply wire the connector in advance, then click the light unit into place with a satisfying snap – no mess, no fuss, just perfect lighting.

Remote Driver for Shallow Ceilings:

• Shallow Ceiling Savior: Don’t let limited ceiling space cramp your lighting style. The Prism Pro’s remote driver makes it ideal for even the shallowest voids. Tuck the driver away neatly, while the slim downlight unit graces your ceiling with its sleek presence.

Built to Impress:

• Fire Rated Safety: Rest assured knowing your lighting is as safe as it is stylish. The Prism Pro is fully tested and compliant with Part B of Building Regulations for fire safety, giving you complete peace of mind.
• Durability and Weather Resistance: This downlight isn’t afraid of a little moisture. Its IP65 rating ensures protection against dust and water jets, making it suitable for bathrooms, kitchens, and even outdoor soffit applications.
• Energy Efficiency: Embrace the future of sustainable lighting. The Prism Pro complies with Part L of Building Regulations for energy efficiency, helping you save on your electricity bills while doing your part for the environment.

Wide Beam Angle for Even Illumination:

• No More Lighting Gaps: Forget splotchy shadows and unevenly lit rooms. The Prism Pro’s generous 65° beam angle bathes your space in a beautiful, diffused light, eliminating dark corners and creating a cohesive, inviting atmosphere.

In short, the Ansell Prism Pro Fire Rated CCT Dual Wattage Downlight is more than just a downlight; it’s a lighting solution that adapts to your needs, simplifies your life, and elevates your space.

So, ditch the old, embrace the versatile, and let the Ansell Prism Pro illuminate your world with endless possibilities.
