LED Driver 200mA 4W Flicker Free | 10-20V | dimmable

This flicker-free LED driver has a maximum output of 4W and 200mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks smooth at all times.

Features

• Dimmable on phase cut-off and cut-on
• Output voltage from 10 ~ 20 V

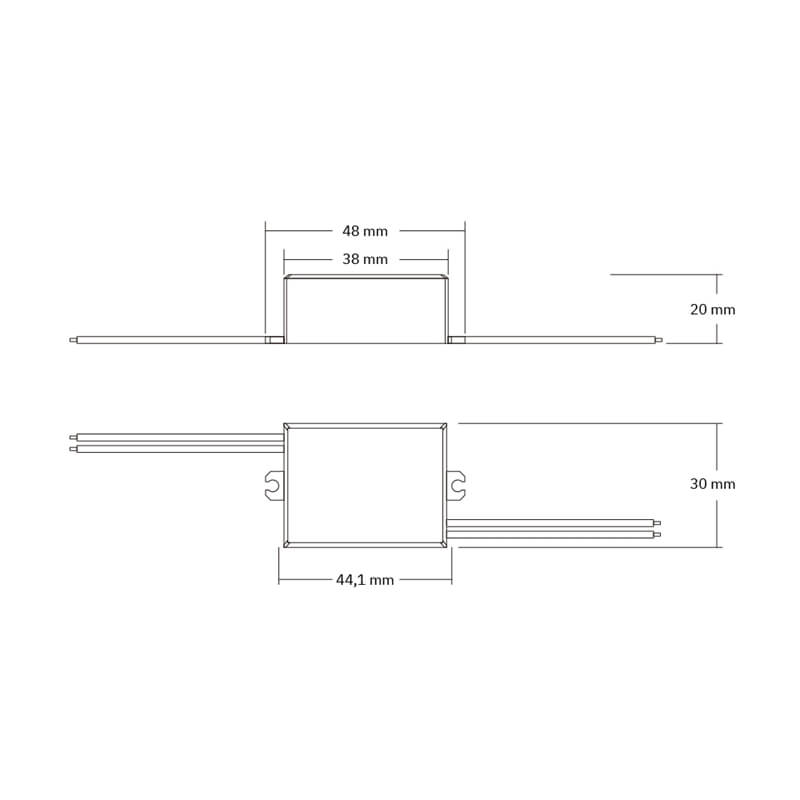

• Super compact size 48*30*20 mm

Technical data: LED driver | 200mA | 4 watt | IP20 | 10 ~ 20 volt | dimmable

• Input voltage220-240V
• Maximum Power4 Watt
• Output current200 mA
• Output voltage10 – 20 Volt
• DimmableYes
• ProtocolTriac
• Power factor>0.90
• Working temperature-20°C / +60°C
• IP rateIP20
• Length48 mm
• Width30 mm
• Height20 mm
• Cable length180 mm
• Connection typeStripped wire
• Housing colorWhite
• Maximum temperature housing90°C
• IsolationSELV
• Certification markTUV, CE, CB
• StandardsEN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60598-1, EN 50581, IEEE1789, (EU) 2019/2020
• Warranty5 years
