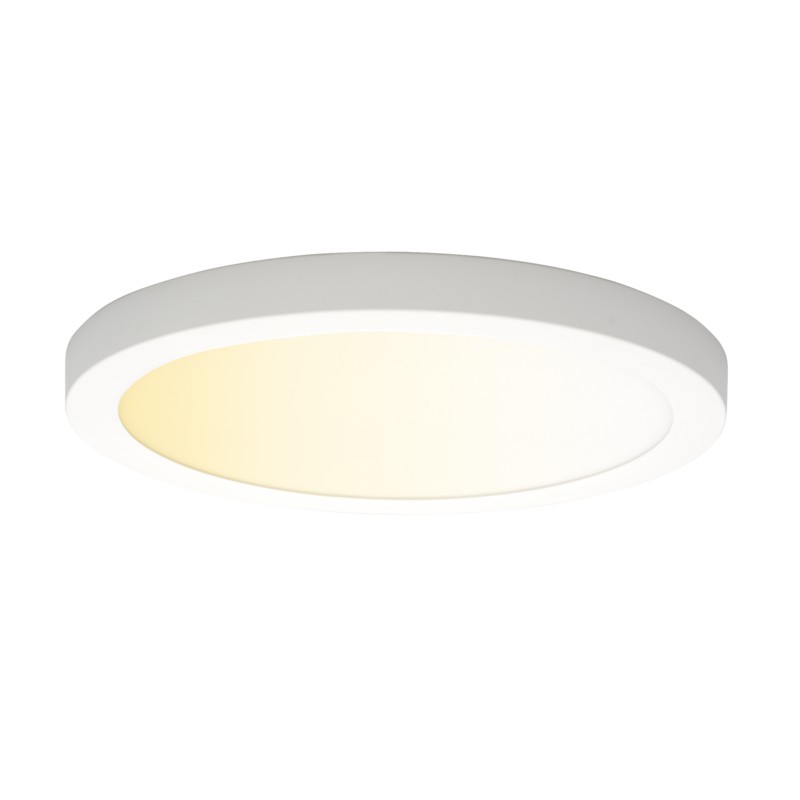

Surface/recess 30cm LED 12W/18W/24W CCT 3000K/4000K/6000K PavoCWS with MS motion sensor

SWITCH LITE (Fr)
Availability:

In Stock

Add to wishlist
Compare

Ø300 x 17mm MS motion sensor ceiling plafond lamp selectable wattage  12W/18W/24W 900-2000lm selectable light tone 3000K/4000K/6000K

49,99 €

Price without VAT: 40.98 €

3 in stock

Colour & Wattage Switchable Polycarbonate LED Downlight for surface or recessed installations with adjustable cut-out.
3 Wattage and 3 Colour Selections available for ultimate flexibility in every application and perfect retrofit solution for renovations.
One size fit all bracket for adjustable cut-out between 65-180mm (DL149529 & DL151133) or 65-240mm (DL150389 & DL151140) enables flexible recessed or surface mount installation.
Integrated non dimmable led driver for very low profile installation height of only 17mm.
Magnetic design allows customization of white standard version with magnetic Black and Satin Nickel bezels.

https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/257f33d5-60f5-4d4d-b8bd-633c85ae385a/class_ii_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/3ae270e9-8cfd-4547-9ce8-44e421dfba78/indoor_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/c9bb1a79-3c42-4e28-91e5-edb45bf2ad1c/ip20_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/6c547250-ecce-4186-b110-c4f0a7a7dd49/ik05_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/2585bb5d-9c8a-4057-9f45-adb0834acfd8/colour_wattage_switchable_black.pnghttps://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/a84be968-4ad1-40d7-9037-354f446bc945/120_beam_angle_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/d75dfd94-a362-4d68-98d6-4408dd3f7c0d/non_dimmable_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/25fc0bb1-e088-41d2-b1d5-0d67a027b69c/microwave_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/de52292f-018f-4f7b-b117-eb5f7f6c4ef1/loop_in_loop_out_black.png https://cdnapi.interactiv-database.fr/api/public/0f6e5cae-e620-4a07-b18d-7b66db952dbd/image/display/site_internet/f6159ec5-02e2-48cd-8968-efa4c7409515/rg_1_black.png

Motion sensor settings (selectable from dip switches during installation):
Sensor Enable/Disable
Detection area 3m/6m
Light on after motion  30sec/60 sec
Max mounting height 3m

Data sheet

Power (watts) 12/18/24
Dimmable NO
Colour temperature 3000K/4000K/6000K
Lumens 12W – 900 / 960 / 900lm
18W – 1350 / 1440 / 1350lm
24W – 1800 / 1920 / 1800lm
Colour  White
Height (mm) 17
Cutout diameter (mm) 65 or surface mounted
Product Diameter (mm) 225
Warranty (years) 5
Type of use Indoor
Mount Options Surface mounted / Semi-recessed
Lifetime class L80
Lifetime class hours 50000
IP Rating IP20
IK Rating IK05
Energy class F
CRI 80
UGR rating 27
SKU: DL151140 Categories: , , , ,

Data

Out of Stock Delivery Time From Supplier

7-14 Days
Power consumption

, , ,

In stock (Vana-Tartu mnt 79A)

Yes
Brands

IP class

Warranty

Beam angle

Light Color

, , ,

Finish Colour

Lifetime L70

Light output- Lumens

, , ,

Efficancy (lm/W)

Mounting hole / cutout (mm)

Mounting

Recessed/Surface
Length (mm)
