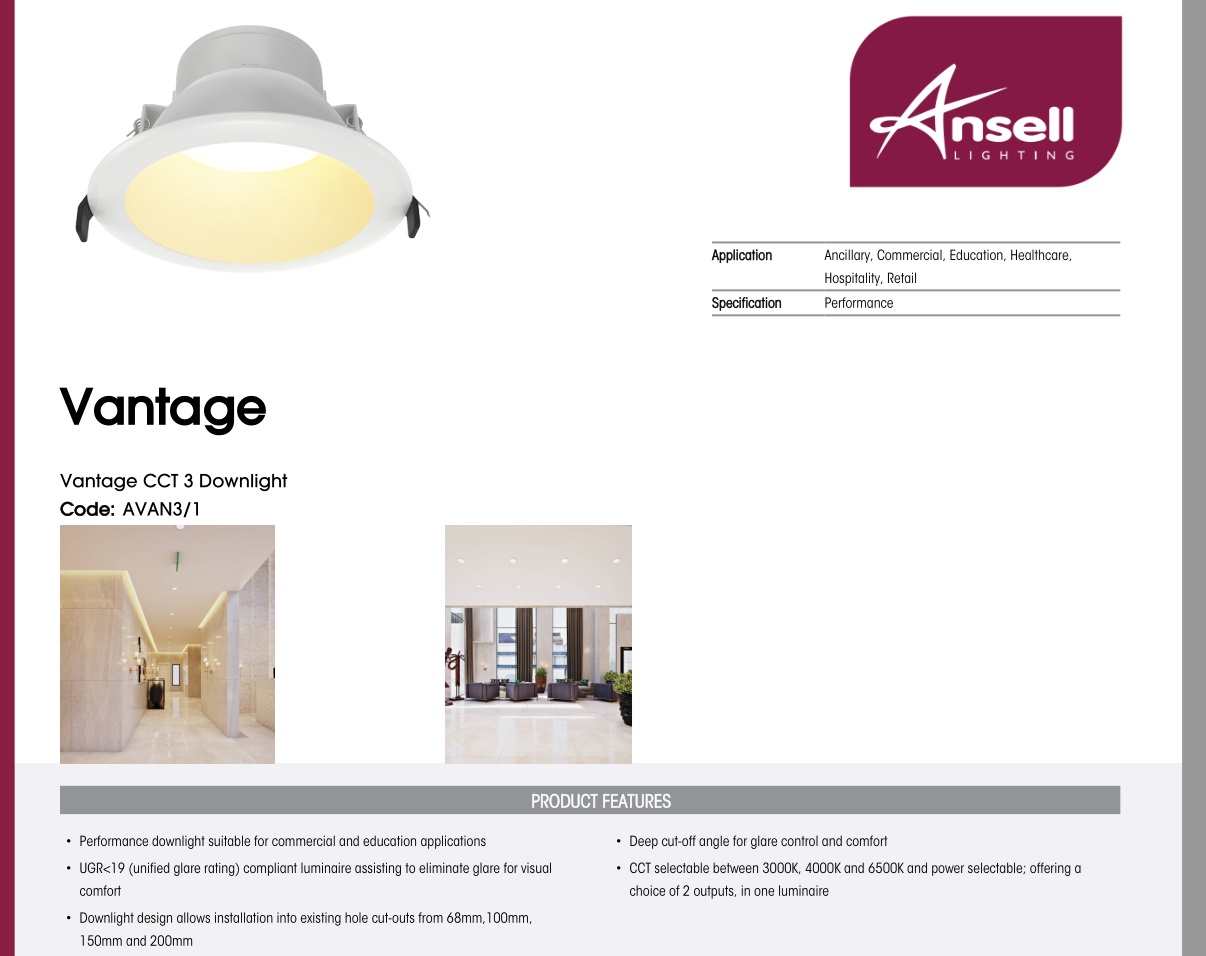

Vantage™ LED Downlight 15W/18W CCT 3000K/4000K/6000K 75° IP20

Performance downlight suitable for commercial and education applications
• UGR<19 (unified glare rating) compliant luminaire assisting to eliminate glare for visual
comfort
• This model is available in 4 sizes for mounting holes: 68mm,100mm, 150mm (this model) and 200mm
• Deep cut-off angle for glare control and comfort
• CCT selectable between 3000K, 4000K and 6500K and power selectable; offering a
choice of 2 outputs, in one luminaire

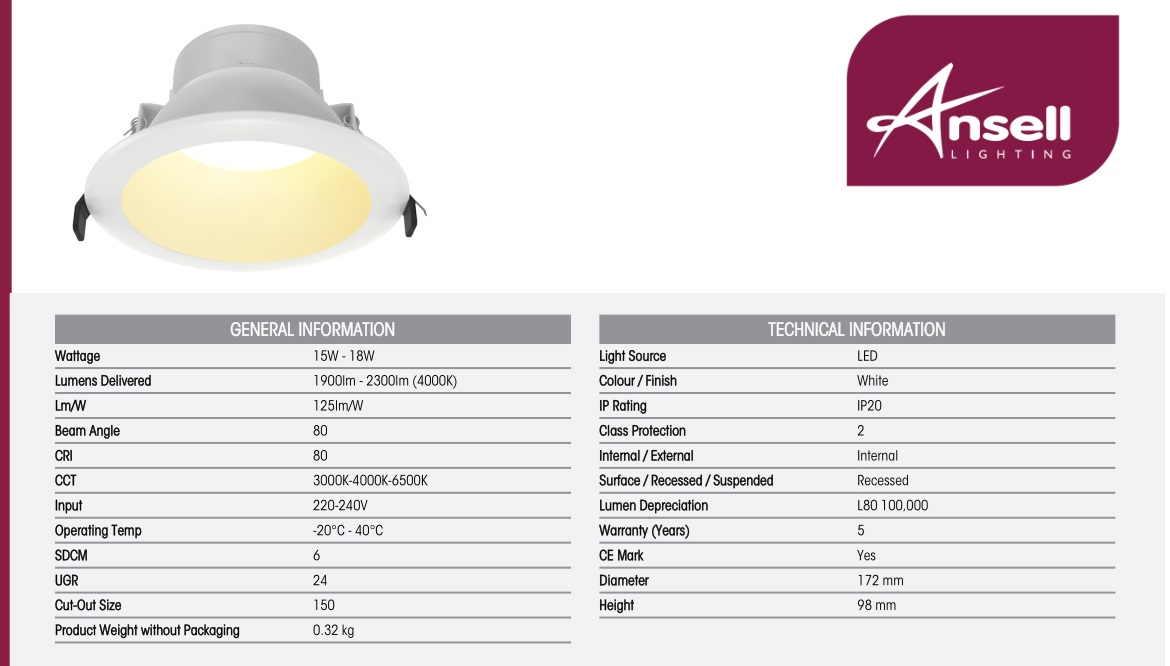

Key Features

Wattage 15W – 18W (selectable during installation)
Lumens Delivered 1900lm – 2300lm (4000K)
Lm/W 125lm/W

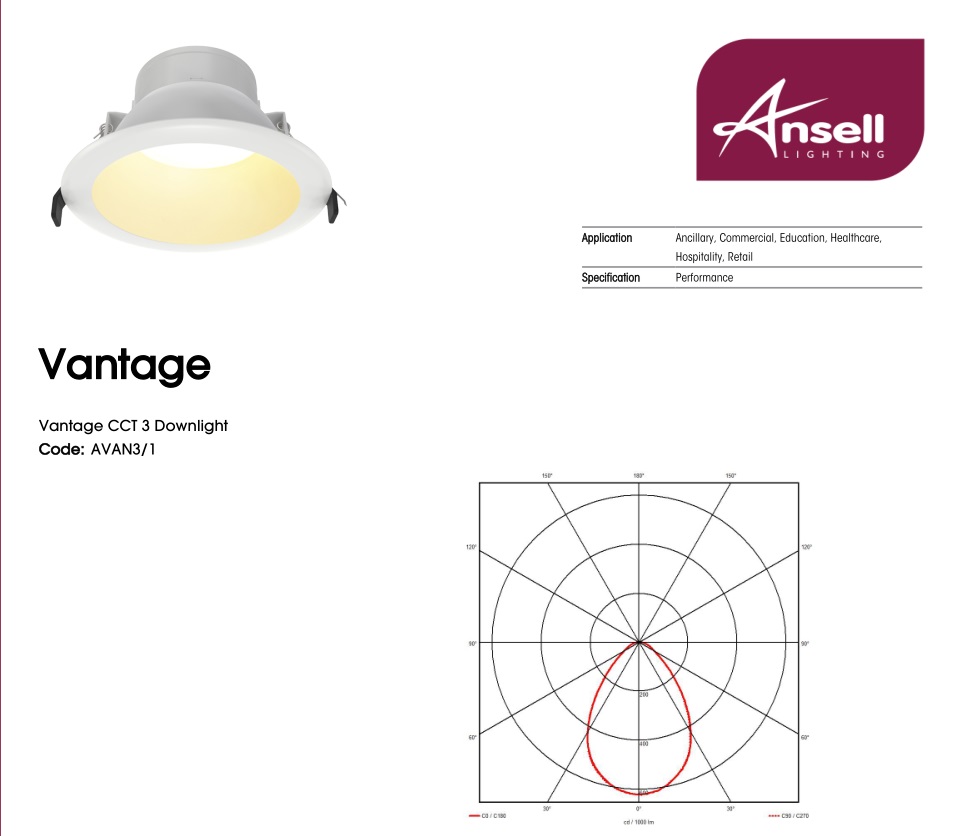

Beam Angle 80
CRI 80
CCT 3000K-4000K-6500K (selectable during installation)
Input 220-240V
Operating Temp -20°C – 40°C
SDCM 6
UGR 24
Cut-Out Size 150
Product Weight without Packaging 0.32 kg

TECHNICAL INFORMATION
Light Source LED
Colour / Finish White
IP Rating IP20
Class Protection 2
Internal / External Internal
Surface / Recessed / Suspended Recessed
Lumen Depreciation L80 100,000 h
Warranty (Years) 5
CE Mark Yes

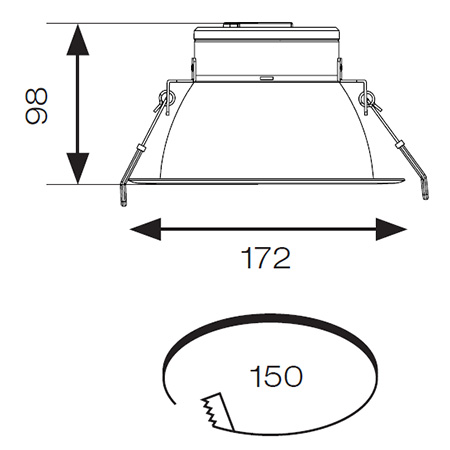

Diameter 172 mm
Height 98 mm

Application Ancillary, Commercial, Education, Healthcare,
Hospitality, Retail
