4mm LED CRI927 MICRO 24V 10W 2700K 900lm/m 5m roll 240LED/m

Name: 4mm LED CRI927 MICRO 24V 10W 2700K 900lm/m 5m roll 240LED/m
SKU: ISO-113457
Availability: BackOrder

Out of stock status:

7-14 Days

94,00 €

Price without 24% VAT: 75,81 €

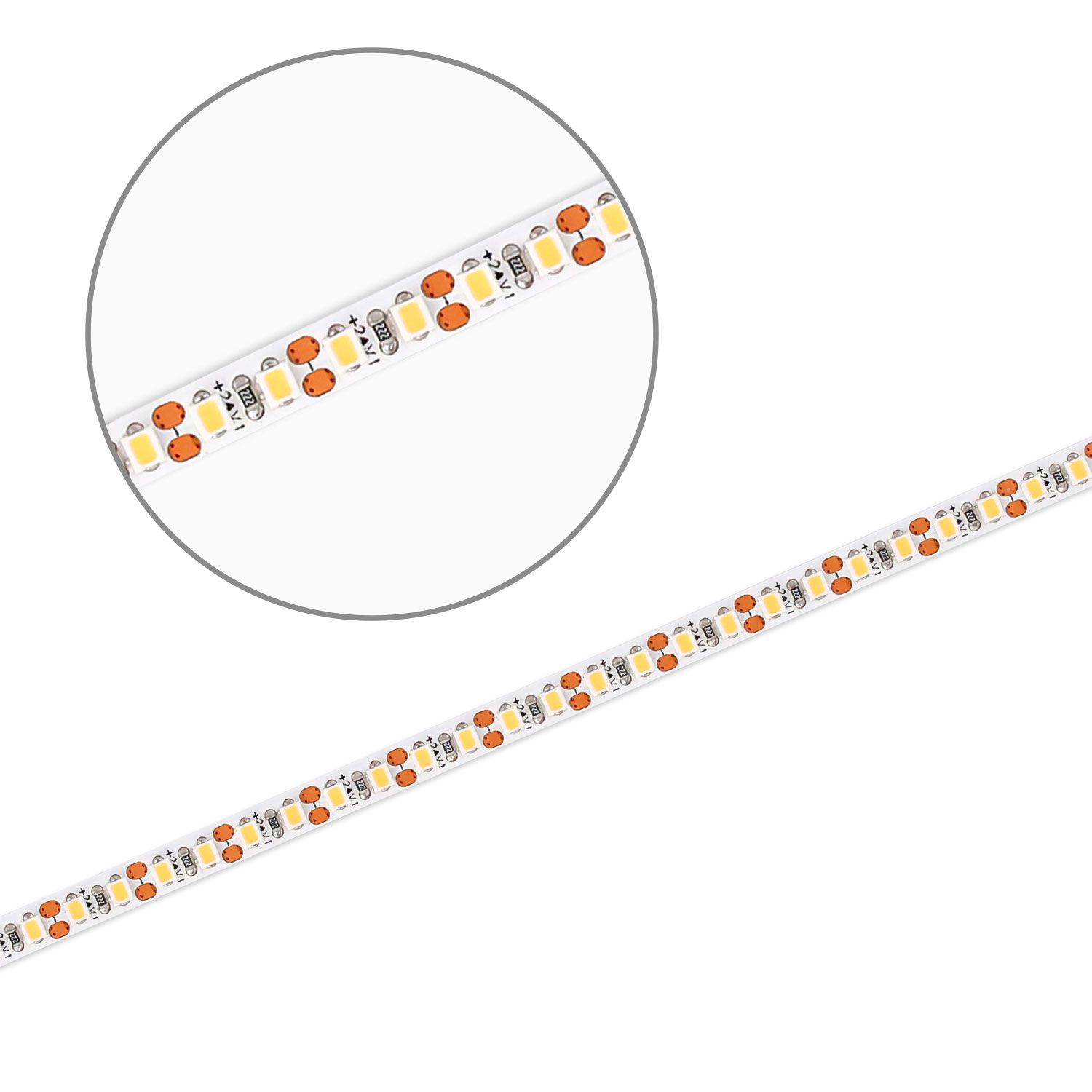

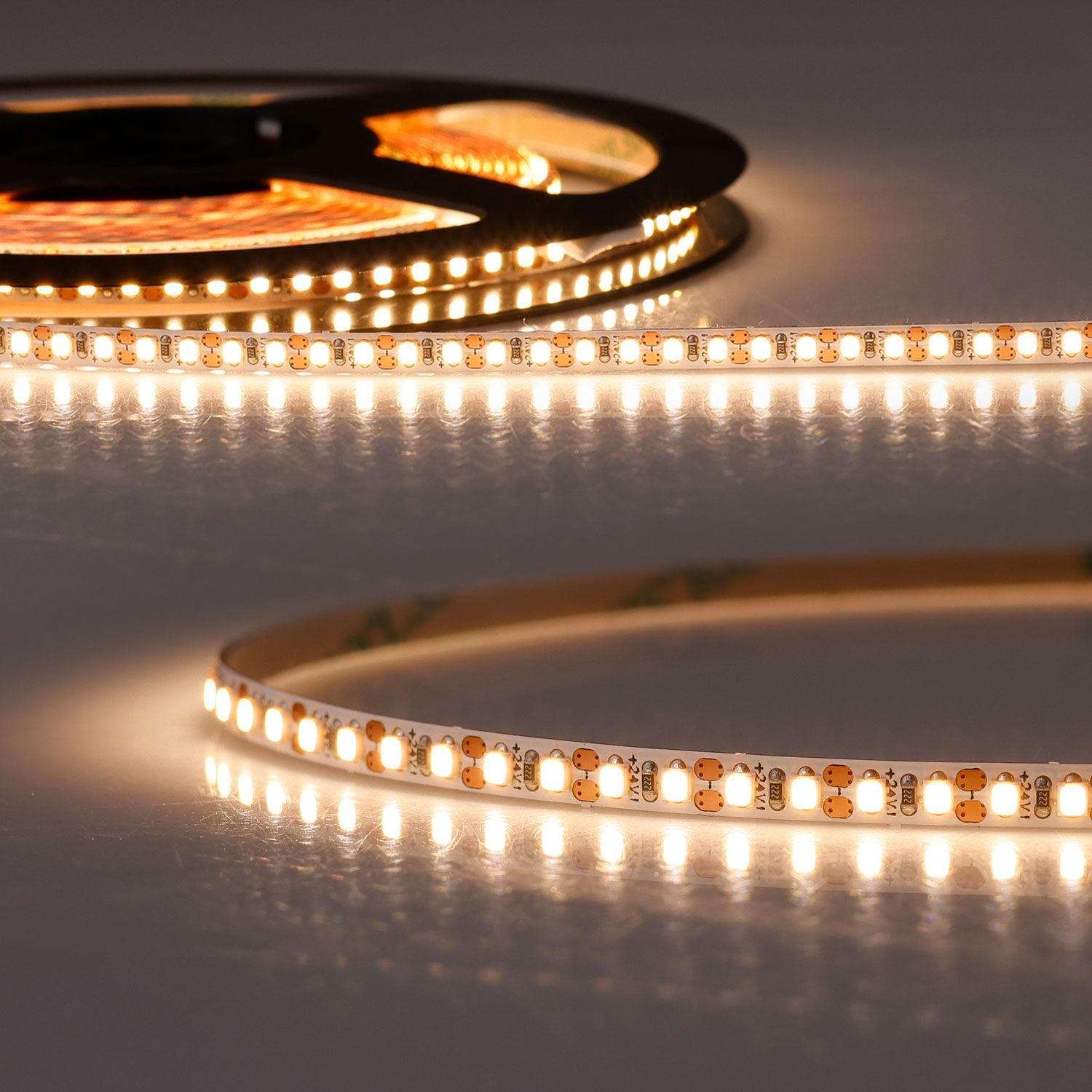

Product description	LED CRI927 MICRO Linear flex stripe, 24V DC, 10W, IP20, 2700K, 5m roll, 240 LED/m
GTIN – EAN	9009377054631
Features
Special features	Separation point: 8,33mm with 2 SMD each \| Pitch (light point center-center): 4,17mm \| 1 unit (roll) = 5m \| max. flex stripe length per infeed: 5m \| length tolerance + thermal expansion: 1% \| required cooling mass min. 75 gr/m \| incl. 3M 300LSE adhesive tape \| Clean and degrease surface before application! Do not remove again! \| Special feature: connection cable on both sides
Nominal voltage	24 V DC
Rated power	10 W/m
Active power	10 W/m
Efficiency in LM	90
Luminous flux in lumen	900 lm/m
RGB light source	No
Color temperature	2700K
Permissible ambient temp.	0°C – 45°C
max. ambient temperature in °C	45
min. ambient temperature in °C	0
CRI Ra	93
Beam angle	120°
Dimmable	Yes
Dimming type	PWM
Dimming Specifications	Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer
Protection class	IP20
Outdoor	N
LED chips per metre	240.000000
LED/roll	1.200,00
Properties of connection cable	Anschlusskabel beidseitig

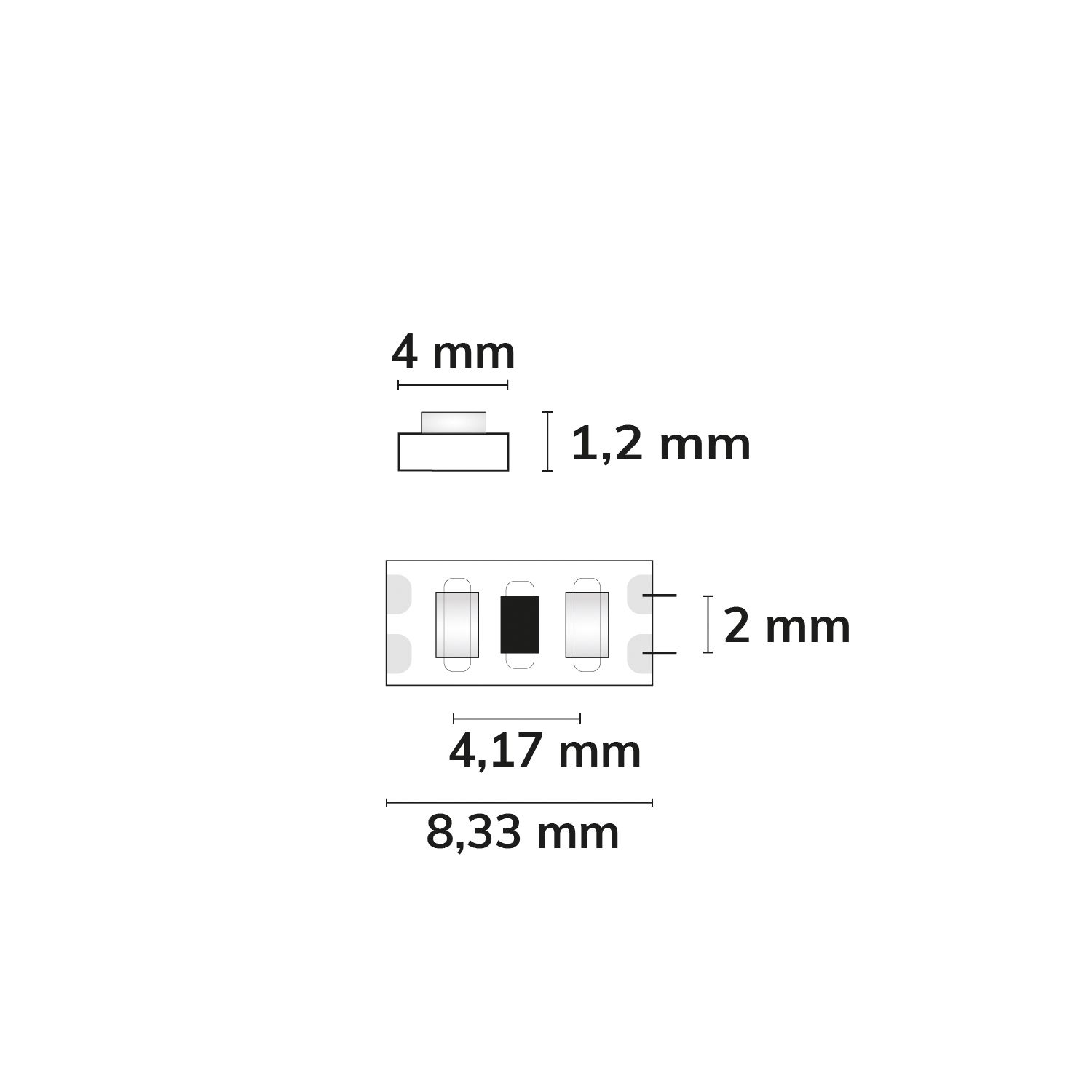

Separation point (mm)	8.33 mm
LED/disconnection point	2.000000
Pitch SMD (mm)	4.17
Cooling mass g/m	75.00 g/m
Max. length per feed (m)	5.00 m
Tape type	3M 300LSE
Weight in gramm	90
Width in mm	4,0
Length in mm	5000,0
Height in mm	1,0
Lifetime L70\|B10	53000
Useful life L70\|B50	80000
Useful life L80\|B50 in hours	70000
Guarantee in years	2

SKU: ISO-113457 Categories: 24V LED Strips, Narrow LED strips

Data

Height (mm)	1
Dimmable (adj. brightness)	Yes
In stock (Vana-Tartu mnt 79A)	No
Brands	ISOLED
Light output- Lumens	900lm/m
Light Color	2700K
Color Rendering Index	CRI>93
Width (mm)	4
Working temperature	-0° – +45°
IP class	IP20
Lifetime L70	53 000h
Beam angle	120°
Input voltage	24V DC
Finish Colour	White
LEDs count x type	SMD, 240 p/m
Length (mm)	5000
Out of Stock Delivery Time From Supplier	7-14 Days
Power consumption/Max power	10W
