CCT-CS-Colorselect, Reflector & Baffle

Refl downl | white | Ø228mm | 60° | 3-CCT | 18~30W | GST18i3

Name: Refl downl | white | Ø228mm | 60° | 3-CCT | 18~30W | GST18i3
SKU: TRX-136-466
Availability: BackOrder

Out of stock status:

7-14 Days

Add to wishlist

Compare

IP54, selectable wattage (during installation) 18/20/22/25/30W, selectable light tone 3000K/4000K/5700K max 3300lm

99,00 €

Price without 24% VAT: 79,84 €

Add to quote

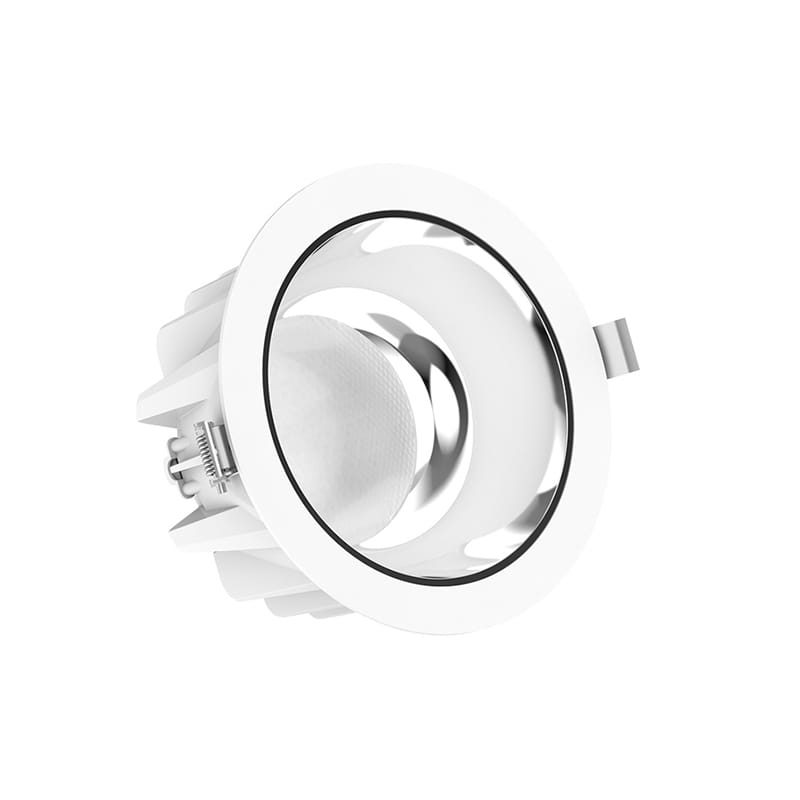

This modern downlight with mirror reflector minimizes glare and offers adjustable light color and power. Ideal for locations where bright, comfortable lighting is required.

Key product features:

• Power (W): 18 – 30
• Color temperature (K): 3000 – 5700
• Housing color: White
• Outer diameter (mm): 228
• Built-in diameter (mm): 180 – 210
• Connection type: Plug-in connector for plug-in building installation
• Unified Glare Ratio (UGR): 19

Technical data: Refl downl | white | Ø228mm | 60° | 3-CCT | 18~30W | GST18i3

TypeRound
Input voltage230V
Power18/20/22/25/30 Watt
Luminous flux3300 Lm
Color temperature3-CCT
Light colorWarm white, natural white and cold white (3000K, 4000K en 5700K)
Dimming methodOptional
LifetimeL80B50 (50.000 uur)
CRI value>80
DriverIncl. external non-dimmable driver
Power factor>0.90
Beam angle60°
AdjustableNo
IP rateIP20 (IP54 when mounted)
MountingRecessed
DiameterØ 228 mm
Mounting holeØ 180 mm
Mounting depth107 mm
Cable length30 cm
Connection typeGST18i3
Housing materialAluminium
Housing colorWhite
Material coverPC
Certification markCE, RoHS
Warranty5 years

SKU: TRX-136-466 Categories: CCT-CS-Colorselect, Reflector & Baffle Brand: Tronix

Data

In stock (Vana-Tartu mnt 79A)	No
Brands	TRONIX LIGHTING
Input voltage	230V
Light output- Lumens	Optional, 3300lm
Light Color	Selectable – 3000K/4000K/5700K, 3000K, 4000K, 5700K
Dimmable (adj. brightness)	No, Optional
Lifetime L70	50 000 h
Color Rendering Index	CRI>80
Driver	Incl. external non-dimmable driver
Power factor	>0.9
Beam angle	60°
IP class	IP54
Width (mm)	Ø 228 mm
Mounting hole / cutout (mm)	180 mm
Recess depth (mm)	107 mm
Cable length	30 cm
Connection type	GST18i3
Finish Colour	White
Material	aluminium
Certifications	CE, RoHS
Power consumption/Max power	18W, 20W, 22W, 25W, 30W
Length (mm)	228
Out of Stock Delivery Time From Supplier	7-14 days
