24V LED Strips, DOTLESS-COB LED Strip, Narrow LED strips
5mm LED COB927 Micro 24V 7W 2700K 600lm/m 504LED/m 5m
Out of stock status:
7-14 Days
5mm LED COB927 Micro 24V 7W 2700K 600lm/m 504LED/m 5m
72,00 €
Price without 24% VAT: 58,06 €

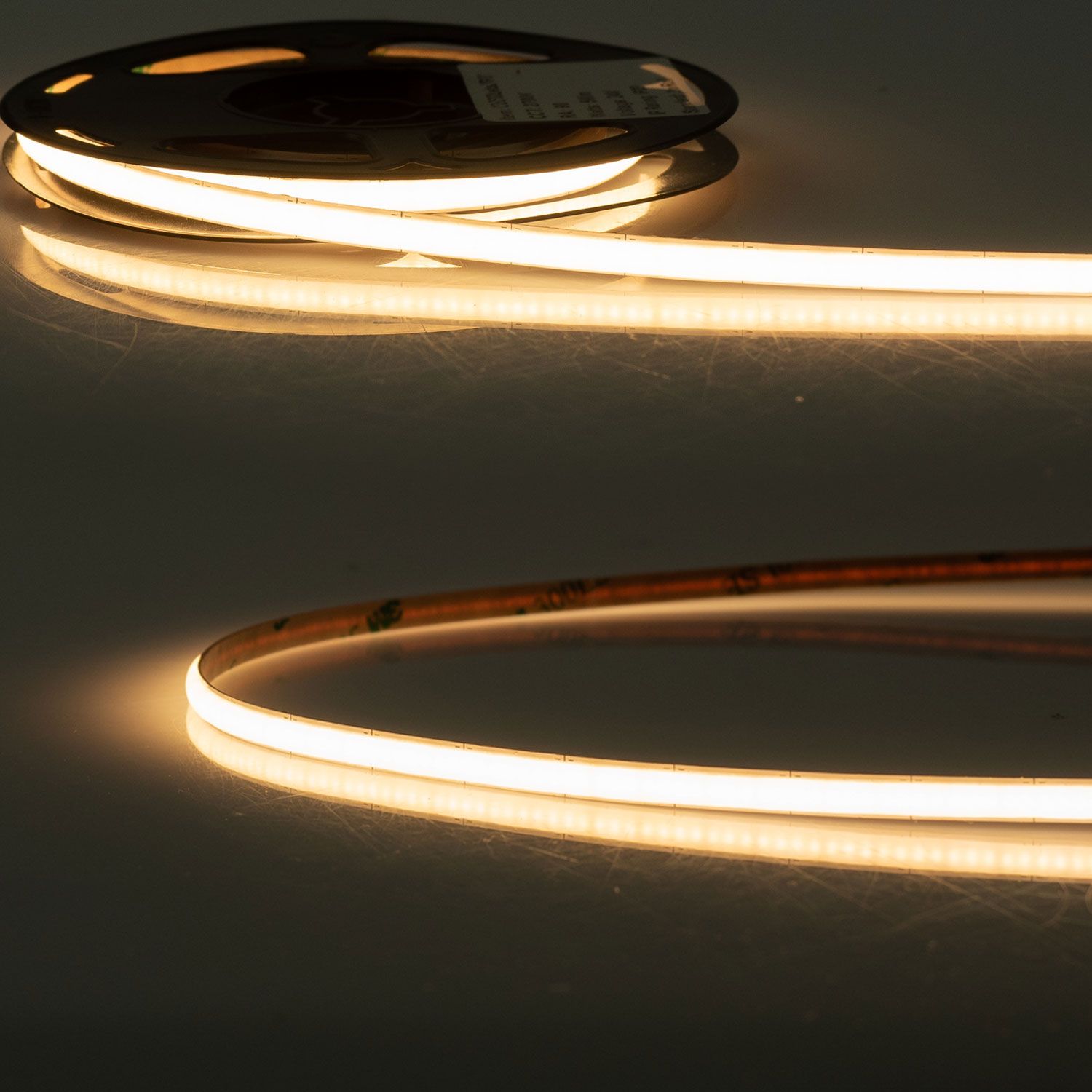

| Product description | LED COB927 MICRO Linear flex stripe, 24V DC, 7W, IP20, 2700K, 5m roll, 504 LED/m |
|---|---|
| GTIN – EAN | 9009377147944 |
| Features |      |
| Special features | Separation point: 13,89mm with 7 SMD each | Pitch (light point center-center): 1,98mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-25 | Special feature: connection cable one-sided |
| Nominal voltage | 24V DC |
| Rated power | 7 W/m |
| Active power | 7 W/m |
| Efficiency in lm/W | 85 |
| Luminous flux in lumen | 600 lm/m |
| RGB light source | No |
| Color temperature | 2700K |
| Permissible ambient temp. | 0°C – 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 90 |

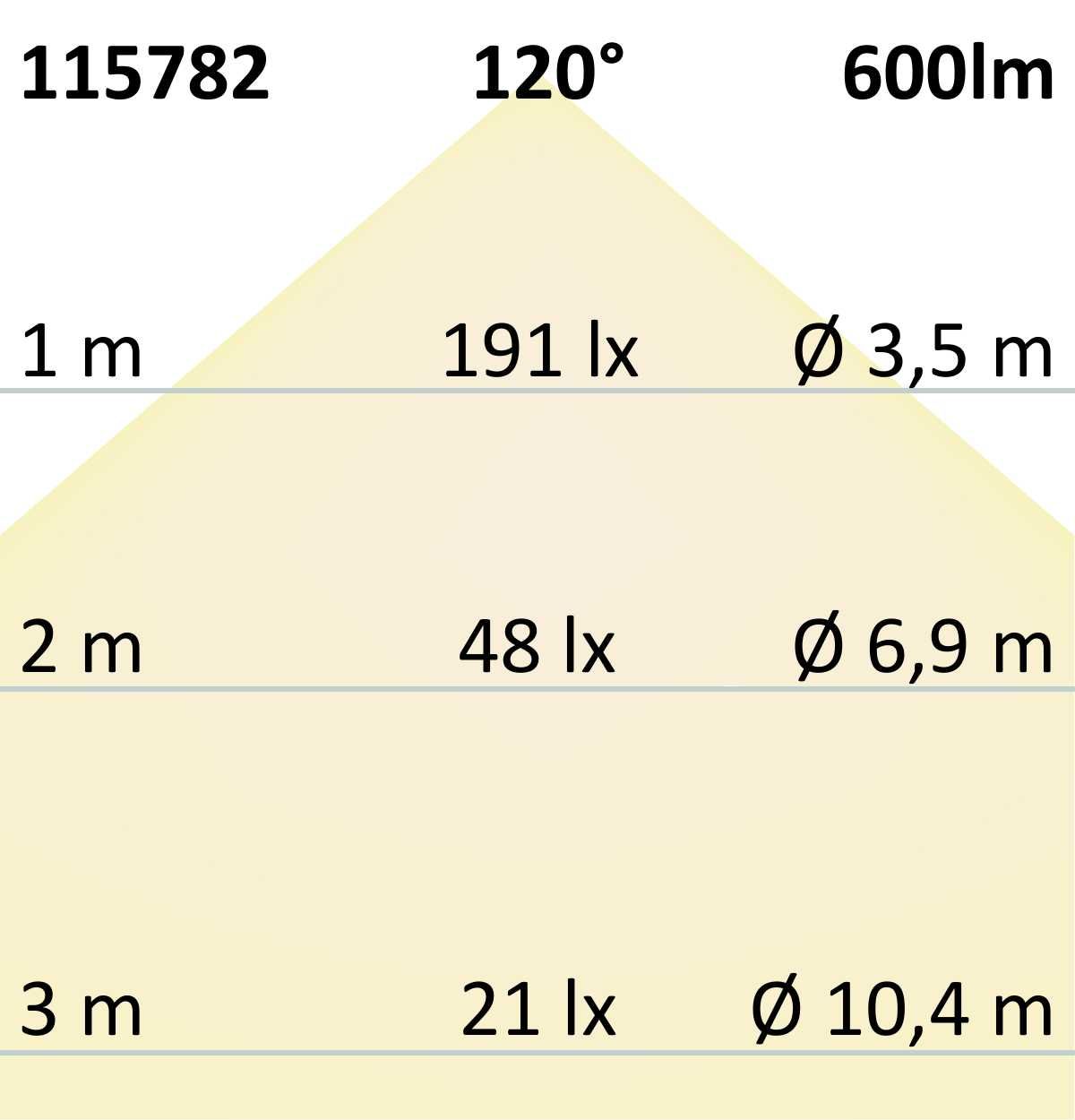

| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| LED chips per metre | 504.000000 |
| LED/roll | 2.520,00 |
| Properties of connection cable | Connection cable on one side |
| Matching connectors | K2-25 |
| Separation point (mm) | 13.89 mm |
| LED/disconnection point | 7.000000 |
| Pitch SMD (mm) | 1.98 |
| Cooling mass g/m | 45.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 170 |
| Width in mm | 5,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
