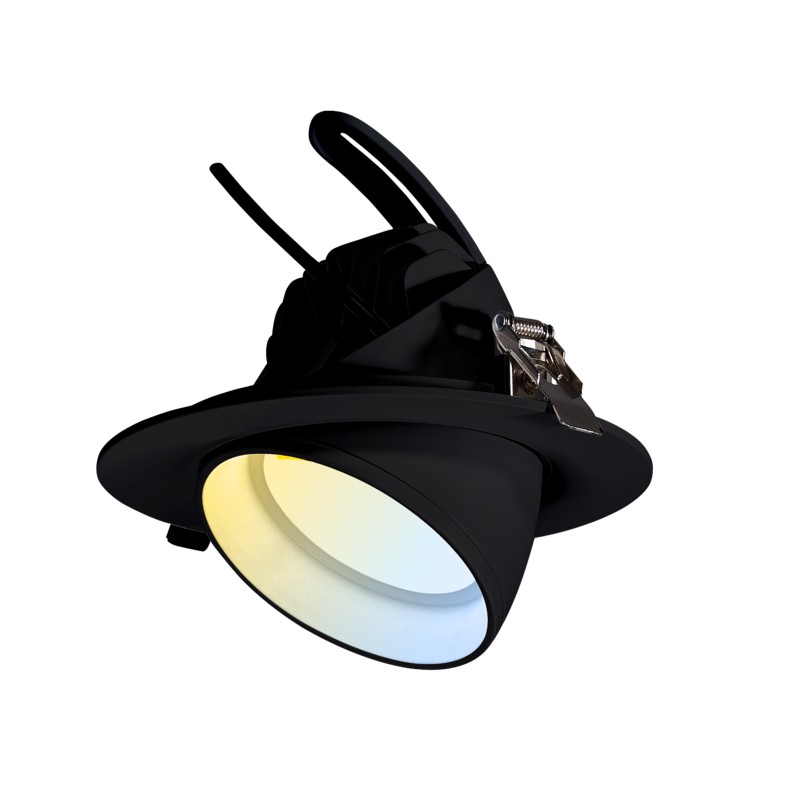

APEXCWS™ 28/38W 90° RETAIL WALLWASHER BLACK 3CCT 3000/4000K/5700K

• Colour & Wattage Switchable adjustable recessed Aluminium LED wallwasher designed to highlight displays and
wall features. Perfect for applications that require high quality light output and superior colour rendering (CRI90).
• Adjustable rotate and tilt angles to adapt to changing point of sales environments. Producing up to 3800 lumens
from 38W LED, it is the perfect replacement for metal halide.
• Rotates 350° with a horizontal adjustment of 50°. Opaque Polycarbonate diffuser with 90° beam angle.
• Non-dimmable flicker-free driver pre-wired for ease of installation.

Data sheet

Dimmable NO

Colour temperature 3000/4000/5700

Lumens (lm) 2900-3800

Lumens (lm/w) 96

Height (mm) 135

Cutout diameter (mm) 165

Product Diameter (mm) 195

Warranty (years) 5

Type of use Indoor

Positional adjustment Rotatable

Lifetime class L80

Lifetime class hours 50000

IP Rating IP20

IK Rating IK02

CRI 90

UGR rating 25

Specifications and Benefits
Ingress Protection Rating IP20
IK Rating IK02
Operating Temperature Range -20°C / +40°C
Certification CE
Protection Class Class II
Installation Location Indoor
Body Material Aluminium
Cover Material Glass

Photometric Specifications

Efficiency Up to 96lm/W

Colour Temperature selectable 3000K/4000K/5700K

Light Colour SDCM <5

Beam Angle 36°

CRI >80

Dimming Type Non-Dimmable

Technical Specifications
Nominal Voltage 220-Vac
Power Factor >0.95
Switching Cycles >8,000
Lifetime Hours L70 B50 50,000hrs
L80 B20 50,000hrs
Insulation Coverable NO

Logistic Details
EAN / Barcode 3609640154202
Product Weight 1006g
Product Dimensions (ODxH / LxWxH) Ø195 x 135mm
Boxed Product Weight 1217g
Boxed Product Dimensions (LxWxH) 165 x 210 x 210mm
Outer Carton Boxed Product Quantity 12 pcs
Outer Carton Dimensions (LxWxH) 435 x 435 x 505mm
