LED driver | 100-700mA | 12 watt | DALI dimmable

This sturdy LED driver has a maximum output of 12W and 100-700mA and is extremely well suited for use with various light sources. In addition, the compact size allows for easy placement of the driver. In addition, this driver offers the ability to communicate with DALI, allowing lighting to be optimized.

Features

• Output voltage 6 ~ 52 V
• Compact size 135*35*20 mm

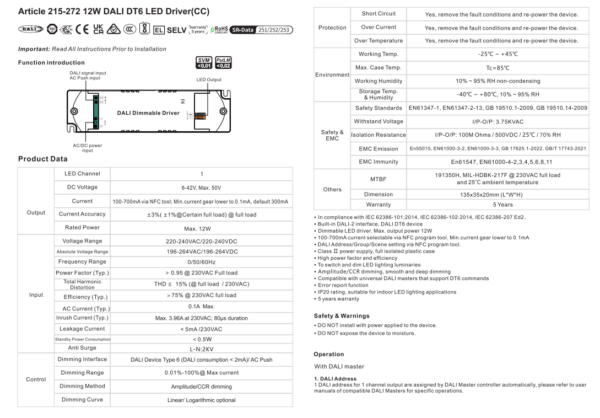

Manual

Technical data: LED driver | 100-700mA | 12 watt | DALI dimmable

• Input voltage200-240V
• Maximum Power12 Watt
• Output current100 – 700 mA, default 300mA and other output current is programmable with  NFC tool
• Output voltage 6 – 52 Volt
• Dimmable Yes
• Protocol DALI dimming range 0,01-100%
• Working temperature-20°C / +45°C
• IP rateIP20
• Length135 mm
• Width35 mm
• Height20 mm
• Cable lengthN/a
• Connection typeTerminal block
• Housing colorWhite
• Maximum temperature housing80°C
• IsolationSELV
• Certification markCE
• Standards-
• Warranty5 years
