eldoLED ECOdrive 150-500mA | 12NA-E1Z0D-NL |12W | DALI

 eldoLED ECOdrive | 12NA-E1Z0D-NL | 150~500mA | 12W | DALI

• Input voltage196-264V
• Maximum Power12 Watt
• Output current150 – 500 mA
• Output voltage27 – 44 Volt
• DimmableYes
• ProtocolDALI
• Power factor>0.95
• Working temperature-20°C / +60°C
• IP rateIP20
• Length128,8 mm
• Width32 mm
• Height42,6 mm
• Connection typeScrew terminal (strain relief)
• Housing colorWhite
• Maximum temperature housing72°C
• IsolationSELV
• Certification markCE, RoHS
• Warranty5 years

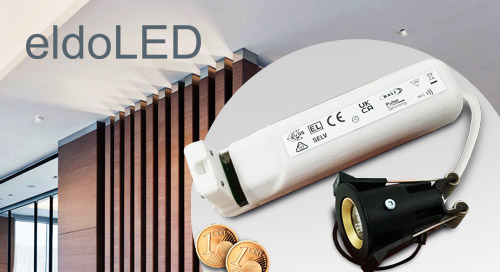

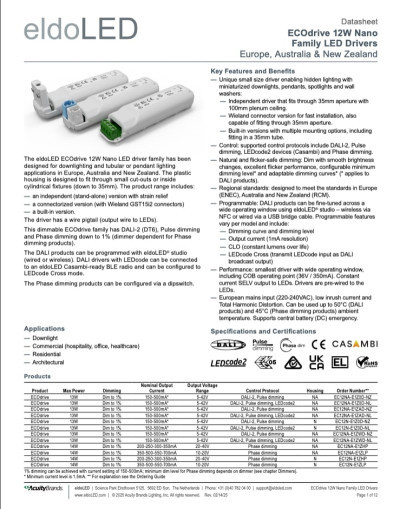

The eldoLED ECOdrive 12W Nano LED driver family has been
designed for downlighting and tubular or pendant lighting
applications in Europe, Australia and New Zealand. The plastic
housing is designed to fit through small cut-outs or inside
cylindrical fixtures (down to 35mm). The product range includes:
— an independent (stand-alone) version with strain relief
— a connectorized version (with Wieland GST15i2 connectors)
— a built-in version.

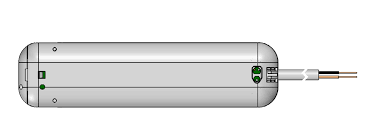

The driver has a wire pigtail (output wire to LEDs).
This dimmable ECOdrive family has DALI-2 (DT6), Pulse dimming

Key Features and Benefits
— Unique small size driver enabling hidden lighting with miniaturized downlights, pendants, spotlights and wall washers:
— Independent driver that fits through 35mm aperture with 100mm plenum ceiling.
— Wieland connector version for fast installation, also capable of fitting through 35mm aperture.
— Built-in versions with multiple mounting options, including fitting in a 35mm tube.
— Control: supported control protocols include DALI-2, Pulse dimming
— Natural and flicker-safe dimming: Dim with smooth brightness changes, excellent flicker performance, configurable minimum
dimming level* and adaptable dimming curves* (* applies to
DALI products).
— Regional standards: designed to meet the standards in Europe
(ENEC), Australia and New Zealand (RCM).
— Programmable: DALI products can be fine-tuned across a wide operating window using eldoLED® studio – wireless via NFC or wired via a USB bridge cable. Programmable features vary per model and include:
— Dimming curve and dimming level
— Output current (1mA resolution)
— CLO (constant lumens over life)
— LEDcode Cross (transmit LEDcode input as DALI broadcast output)
— Performance: smallest driver with wide operating window, including COB operating point (36V / 350mA). Constant current SELV output to LEDs. Drivers are pre-wired to the LEDs.
— European mains input (220-240VAC), low inrush current and
Total Harmonic Distortion. Can be used up to 50°C (DALI
products) . Supports central battery (DC) emergency
