eldoLED ECOdrive NANO 350mA-700mA 3,5-12W | 12NA-E1ZLP | TE dim
7-14 Days
eldoLED ECOdrive NANO 350mA-700mA 3,5-12W | 12NA-E1ZLP | TE dim
19,50 €
Price without 24% VAT: 15,73 €

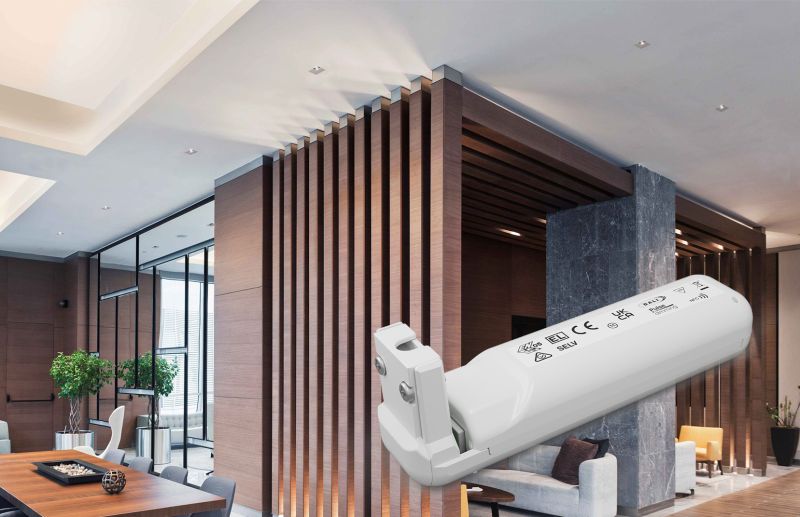

The eldoLED ECOdrive 12W Nano is designed for installations with limited space and fits through 35 mm openings. It is NFC programmable and offers adjustable output current.
With >86% efficiency, low inrush current and operation up to 50°C, this driver is a reliable choice for residential and commercial applications. The durable housing with strain relief and screw terminals ensures safe and easy installation.
Ultra-compact phase-cut dimmable LED driver for constant current applications. Silent, flicker-free dimming to 1% and easy current selection via dipswitch. Fits fixtures with limited space.
Key product features:
• Suitable for constant current: Yes
• Output voltage (V): 10 – 20
• Output current (mA): 350 – 700
• Output power (W): 3,5 – 12
• Phase-cut dimmable: Yes
Technical data: eldoLED ECOdrive | 12NA-E1ZLP | 350~700mA | 12W | TE dim.
- Input voltage220-240V
- Maximum Power12 Watt
- Output current350 – 700 mA
- Output voltage10 – 20 Volt
- DimmableYes
- ProtocolTriac
- Power factor>0.95
- Working temperature-20°C / +45°C
- IP rateIP20
- Length128,8 mm
- Width32 mm
- Height42,6 mm
- Connection typeScrew terminal (strain relief)
- Housing colorWhite
- Maximum temperature housing72°C
- IsolationSELV
- Certification markCE, RoHS
- Warranty5 years
Data
| In stock (Vana-Tartu mnt 79A) | No |
|---|---|
| Brands | |
| Input voltage | |
| Output current | 350 mA, 500mA, 550mA, 700mA |
| Output voltage | |
| Dimmable (adj. brightness) | |
| Protocol | Triac |
| Power factor | |
| IP class | |
| Length (mm) | |
| Width (mm) | |
| Height (mm) | |
| Cable length | N/a |
| Connection type | Terminal block |
| Finish Colour | |
| Working temperature | |
| Certifications | |
| Warranty | |
| Power consumption/Max power | |
| Out of Stock Delivery Time From Supplier | 7-14 days |
