Ground Spot 230V 170mm 28W 3000K 40° | Adj. | Dim.

TRONIX LIGHTING
Out of stock status:

7-14 Days
Add to wishlist
Compare

This 230V ground spot is ideal for ‘heavy’ applications.Ground Spot 230V 170mm 28W 3000K 40° | Adj. | Dim.

232,00 €

Price without 24% VAT: 187,10 €

Add to quote

Description
This 230V ground spotlight is perfect for “heavy duty” applications. The
sturdy, long connecting cable has a PU H07BQ-F jacket. This keeps the spot
(and connection) protected against wear and tear, chemicals and low
temperatures. In short: A ground spot that stands its ground, regardless of
the location.
Features

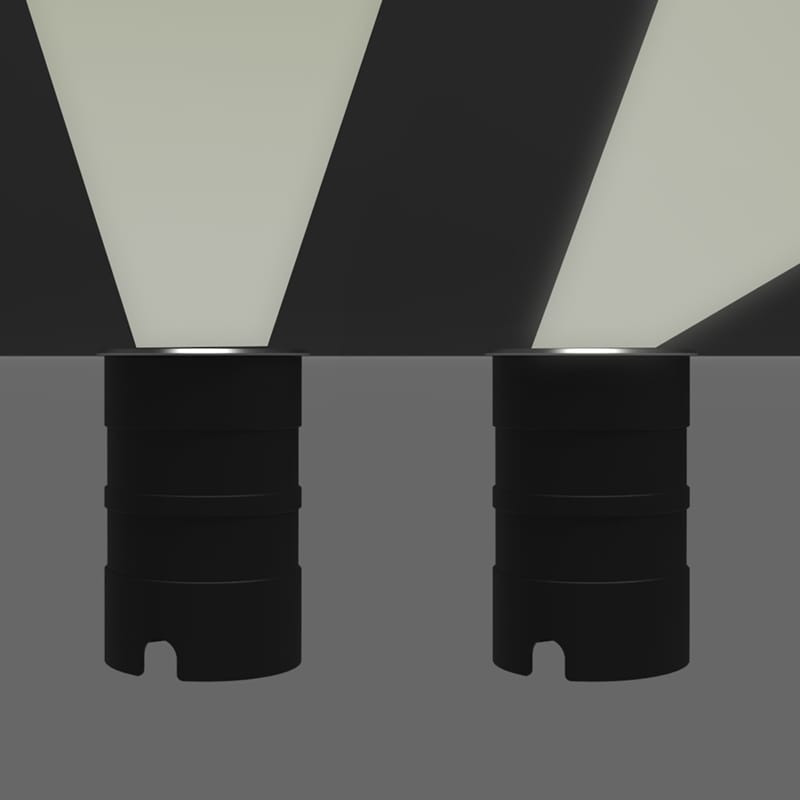

• Tiltable beam up to 22°;
• High quality connection cable (3m) PU, H07BQ-F 3x1mm²;
• IK10 impact resistant for ‘heavy duty’ applications and IP67 certified;
• Equipped with anti-condensation gland for effective pressure equalization between the inside and outside of the housing.

Technical data: Ground spot | 230V | 170mm | 28 watt | 3000K | adj. | dim

  • TypeGround Spot
  • Input voltage220-240V
  • Power28 Watt
  • Luminous flux3298 Lm
  • Color temperature3000K
  • Light colorWarm white
  • LED typeCREE CXA2520
  • DimmableYes
  • Beam angle40°
  • AdjustableYes, 22°
  • IP rateIP67
  • IK rateIK10

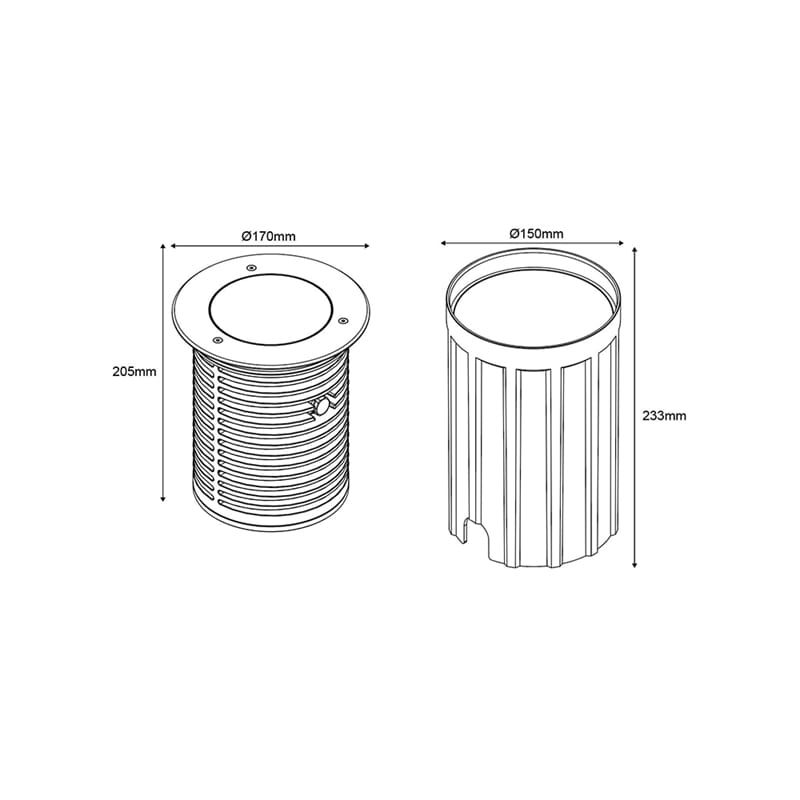

  • DiameterØ 170 mm
  • Mounting holeØ 150 mm
  • Mounting depth233 mm
  • DriverInclusief, KDMH028S0700RC25
  • Cable length300 cm, PU, H07BQ-F 3x1mm²
  • Connection typeStripped wire
  • Housing materialAluminium, stainless steel
  • Housing colorGrey, black
  • Material coverGlass
  • Color coverClear
  • Certification markCE, RoHS
  • LifetimeL70B50 (50.000 uur)
  • Warranty3 years
SKU: TRX-140-093 Category: Brand:

Data

In stock (Vana-Tartu mnt 79A)

No
Brands

Input voltage

Light output- Lumens

Light Color

LEDs count x type

Dimmable (adj. brightness)

Beam angle

Adjustable

Yes, 22°
IP class

Impact Resistance Class

Width (mm)

Mounting hole / cutout (mm)

Recess depth (mm)

Driver

Included, KDMH028S0700RC25
Connection type

Europlug, stripped wire
Finish Colour

Material

Certifications

Lifetime L70

Warranty

Out of Stock Delivery Time From Supplier

7-14 days
Length (mm)
