12,5mm LED HT RGB COB up to temp 90°C 24V 14,4W 5m 480LED/m sauna
7-14 Days

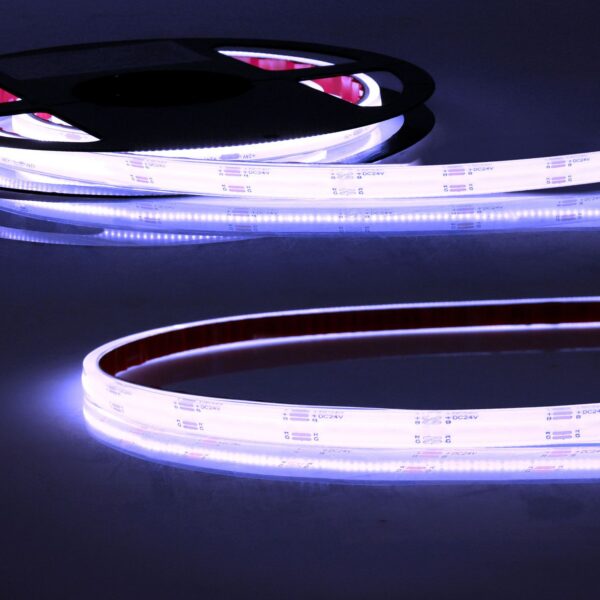

LED HT RGB COB flex stripe for up to 100°C ambient temp., 24V DC, 14,4 W, IP68, 5m roll, 540 LED/m
199,00 €
Price without 24% VAT: 160,48 €
High Temperature Series: LED Flexible Strips for Extreme Heat Conditions
SUITABLE FOR OUTDOOR USE
IP67 to IP68 for constant immersion
360° INSULATED
by silicone encapsulation
HIGH CHIP DENSITY
up to 896 LED/m
HEAT RESISTANT
suitable for ambient temperatures
up to 90°C
Applications
Developed for particularly challenging areas of application: Our LED fl ex stripes from the High Temperature series with silicone encapsulation are absolutely waterproof with a protection class of IP68 and are also extremely heat-resistant.
They are suitable for permanent use in locations with an ambient temperature of up to 90°.
With the included 3M VHB adhesive tape on the back, it can be easily mounted and securely fi xed. Ideal for installation in saunas and wellness areas!
SWIMMING /
INDOOR POOLS
SPA/WELLNESS
AQUARISTICS
MARINE AND
BOAT EQUIPMENT
PARK, GREEN SPACES &
ACCESSES
| Product description | LED HT RGB COB flex stripe for up to 100°C ambient temp., 24V DC, 14,4 W, IP68, 5m roll, 540 LED/m |
|---|---|
| GTIN – EAN | 9009377157837 |
| Features |       |
| Special features | Separation point: 33.33mm with 18 SMD each |Pitch (light point center-center): 1,85mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease the surface before gluing! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Active power | 14,4 W/m |
| Efficiency in lm/W | 0 |
| RGB light source | Yes |
| Permissible ambient temp. | -20°C – 100°C |
| max. ambient temperature in °C | 100 |
| min. ambient temperature in °C | -20 |
| Beam angle | 110° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 540.000000 |
| LED/roll | 2.700,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Enclosed accessories | 4 Endkappen | 10 Montagebügel | 21 Schauben |
| Separation point (mm) | 33.33 mm |
| LED/disconnection point | 18.000000 |
| Pitch SMD (mm) | 1.85 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 450 |
| Width in mm | 12,5 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
Data
| Width (mm) | |
|---|---|
| Working temperature | |
| In stock (Vana-Tartu mnt 79A) | No |
| Input voltage | |
| Beam angle | |
| Lifetime L70 | |
| Length (mm) | |
| Dimmable (adj. brightness) | |
| IP class | |
| Light Color | |
| Power consumption/Max power | |
| Brands | |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
| Protocol | PWM |
