24V LED Strips, Narrow LED strips
6mm LED CRI930 MICRO strip 24V 15W 3000K 1300lm/m 120LED/m 5m
Out of stock status:
7-14 Days
6mm LED CRI930 MICRO strip 24V 15W 3000K 1300lm/m 120LED/m 5m
82,00 €
Price without 24% VAT: 66,13 €
| Product description | LED CRI930 MICRO Linear flex stripe, 24V DC, 15W, IP20, 3000K, 5m roll, 120 LED/m |
|---|---|
| GTIN – EAN | 9009377054716 |
| Features |      |

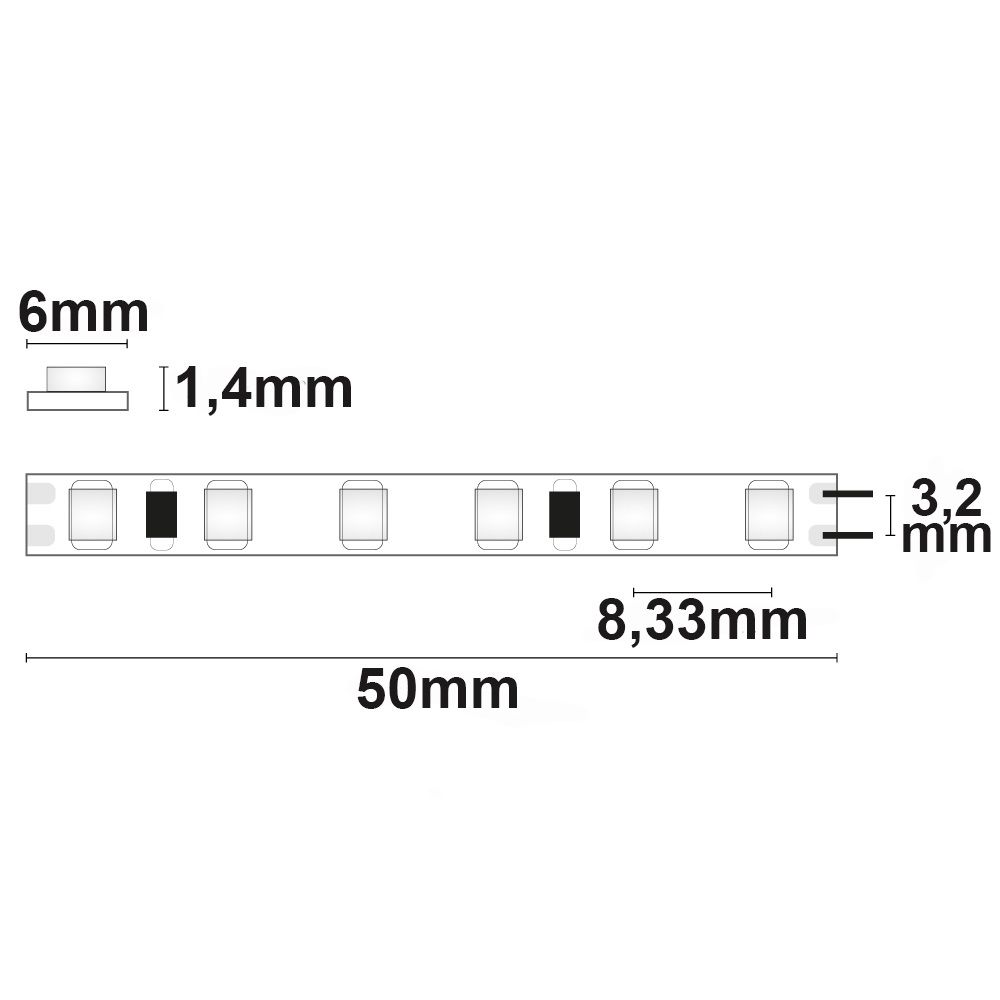

| Special features | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-26 fit | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| Efficiency in LM | 86 |
| Luminous flux in lumen | 1300 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | 0°C – 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| LED chips per metre | 120.000000 |
| LED/roll | 600,00 |
| Properties of connection cable | Connection cable on both sides |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 6.000000 |
| Pitch SMD (mm) | 8.33 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 90 |
| Width in mm | 6,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
Data
| Height (mm) | |
|---|---|
| Dimmable (adj. brightness) | |
| In stock (Vana-Tartu mnt 79A) | No |
| Brands | |
| Light output- Lumens | |
| Light Color | |
| Color Rendering Index | |
| Width (mm) | |
| Working temperature | |
| IP class | |
| Lifetime L70 | |
| Beam angle | |
| Input voltage | |
| Finish Colour | |
| LEDs count x type | |
| Length (mm) | |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
| Power consumption/Max power |
