24V LED Strips, Narrow LED strips
4mm LED CRI940 Micro strip 24V 6W 4000K 620lm/m 240LED/m 5m
Out of stock status:
7-14 Days

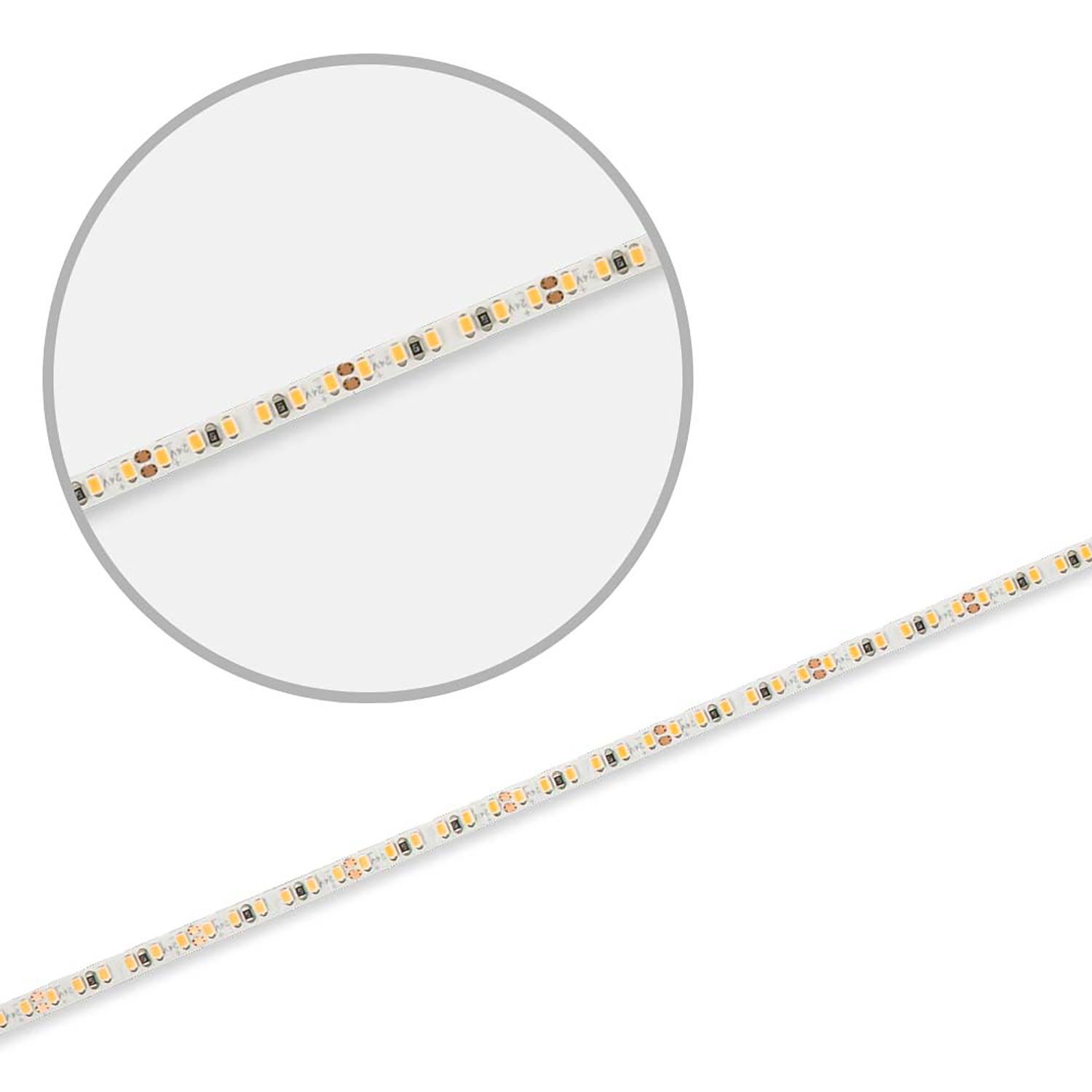

4mm LED CRI940 Micro strip 24V 6W 4000K 620lm/m 240LED/m 5m
94,00 €
Price without 24% VAT: 75,81 €
| Product description | LED CRI940 MICRO Linear flex stripe, 24V DC, 6W, IP20, 5m roll, 240 LED/m |
|---|---|
| GTIN – EAN | 9009377063329 |
| Features |      |

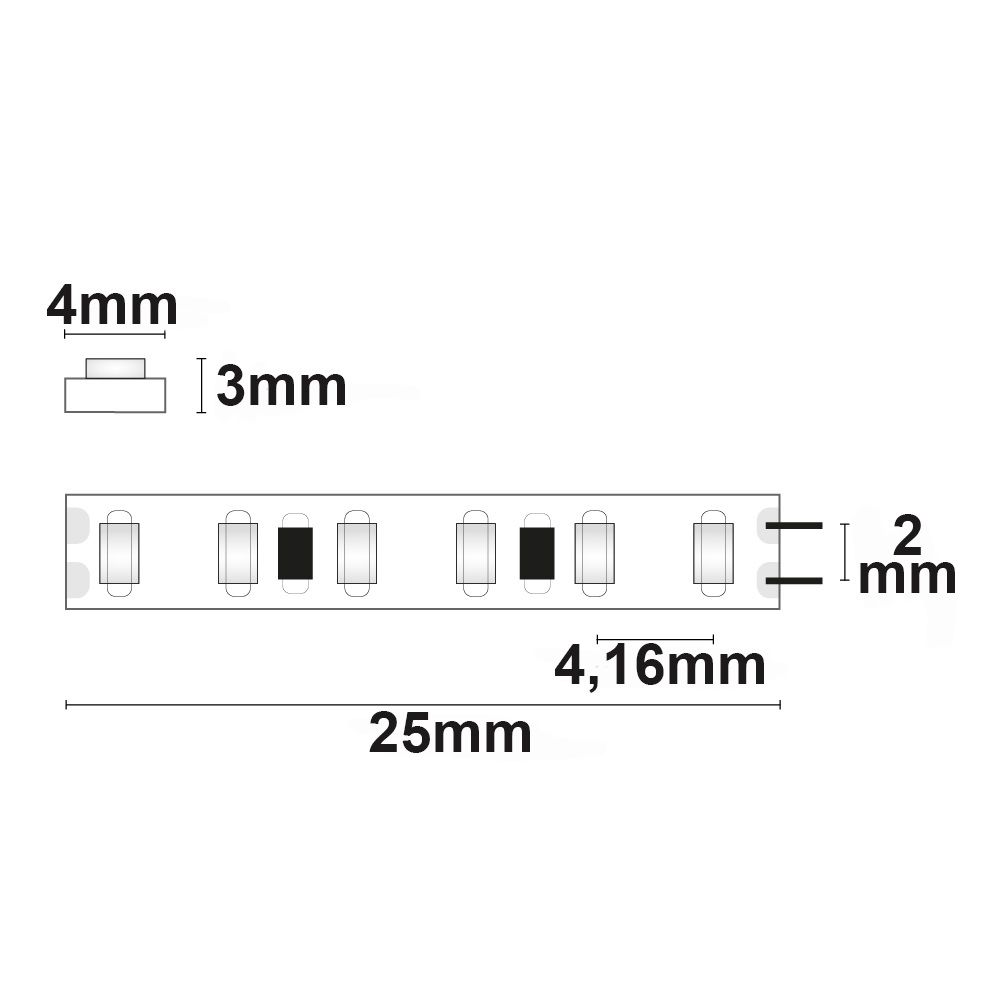

| Special features | Separation point: 25mm with 6 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24V DC |
| Rated power | 6 W/m |
| Active power | 6 W/m |
| Efficiency in LM | 103 |
| Luminous flux in lumen | 620 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| Permissible ambient temp. | -30°C – 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -30 |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| LED chips per metre | 240.000000 |
| LED/roll | 1.200,00 |
| Properties of connection cable | Connection cable on both sides |
| Separation point (mm) | 25.00 mm |
| LED/disconnection point | 6.000000 |
| Pitch SMD (mm) | 4.17 |
| Cooling mass g/m | 45.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 90 |
| Width in mm | 4,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
