LED SYS-68, MINIAMP 24V FAST CONNECT, Reflector & Baffle

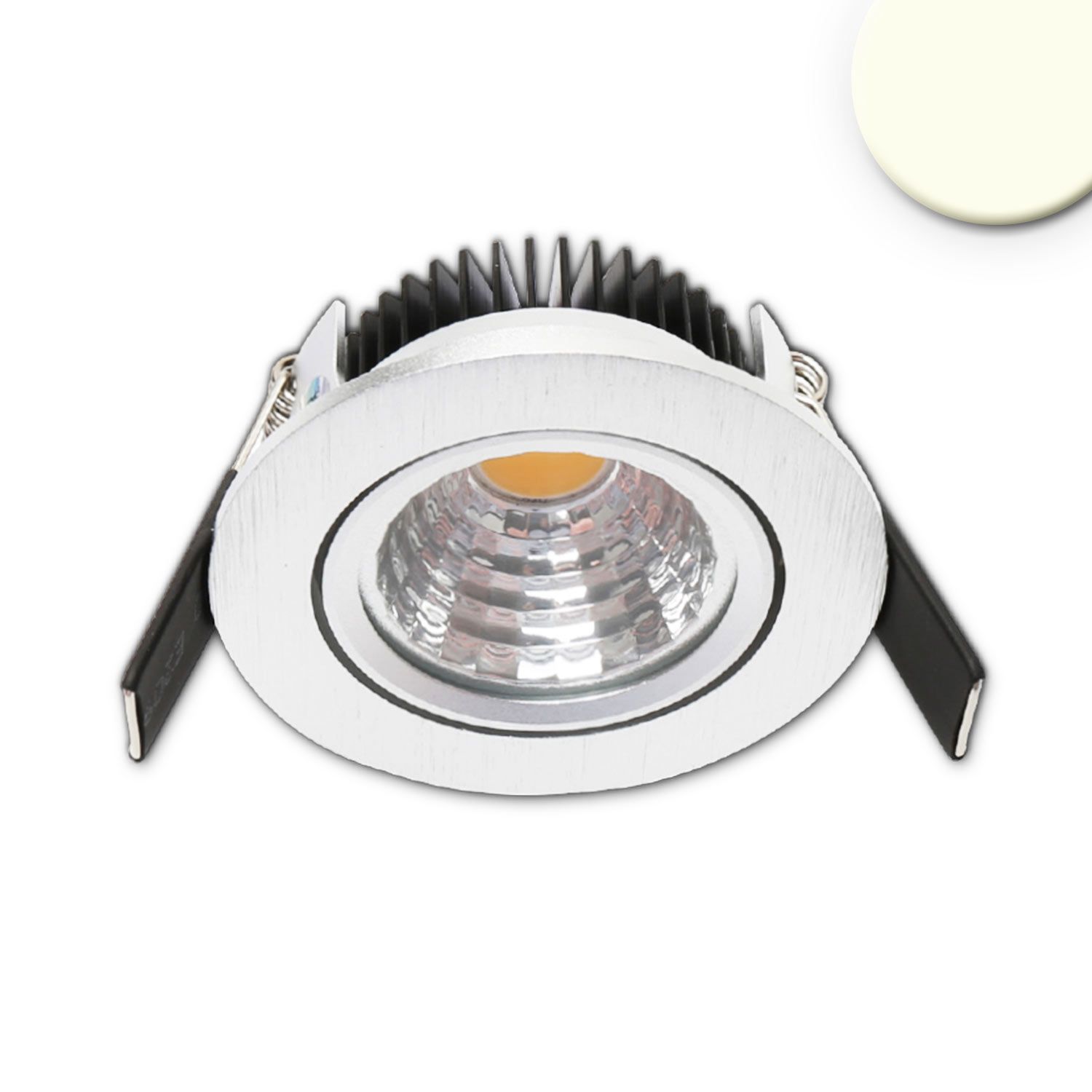

68 MiniAMP alu brushed 5W 24V 2700k, dimmable LED downlight
Out of stock status:
7-14 Days
incl. 100cm long connection cable LED recessed luminaire 68 MiniAMP brushed aluminum 5W 2700K, dimmable, 24V
29,00 €
Price without 24% VAT: 23,39 €
| Product description | LED recessed luminaire 68 MiniAMP brushed aluminum 5W, 24V DC, 2700K, dimmable
NB! Choose 24V transformer for each lamp or one for all group |
|---|---|
| GTIN – EAN | 9009377085642 |
| Features |      |
| Special features | Incl. 100cm connection cable with MiniAMP male plug, wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Rated power | 5 W |
| Active power | 5 W |
| Luminous flux in lumen | 480 lm |
| Color temperature | 2700K |
| CRI Ra | 92 |

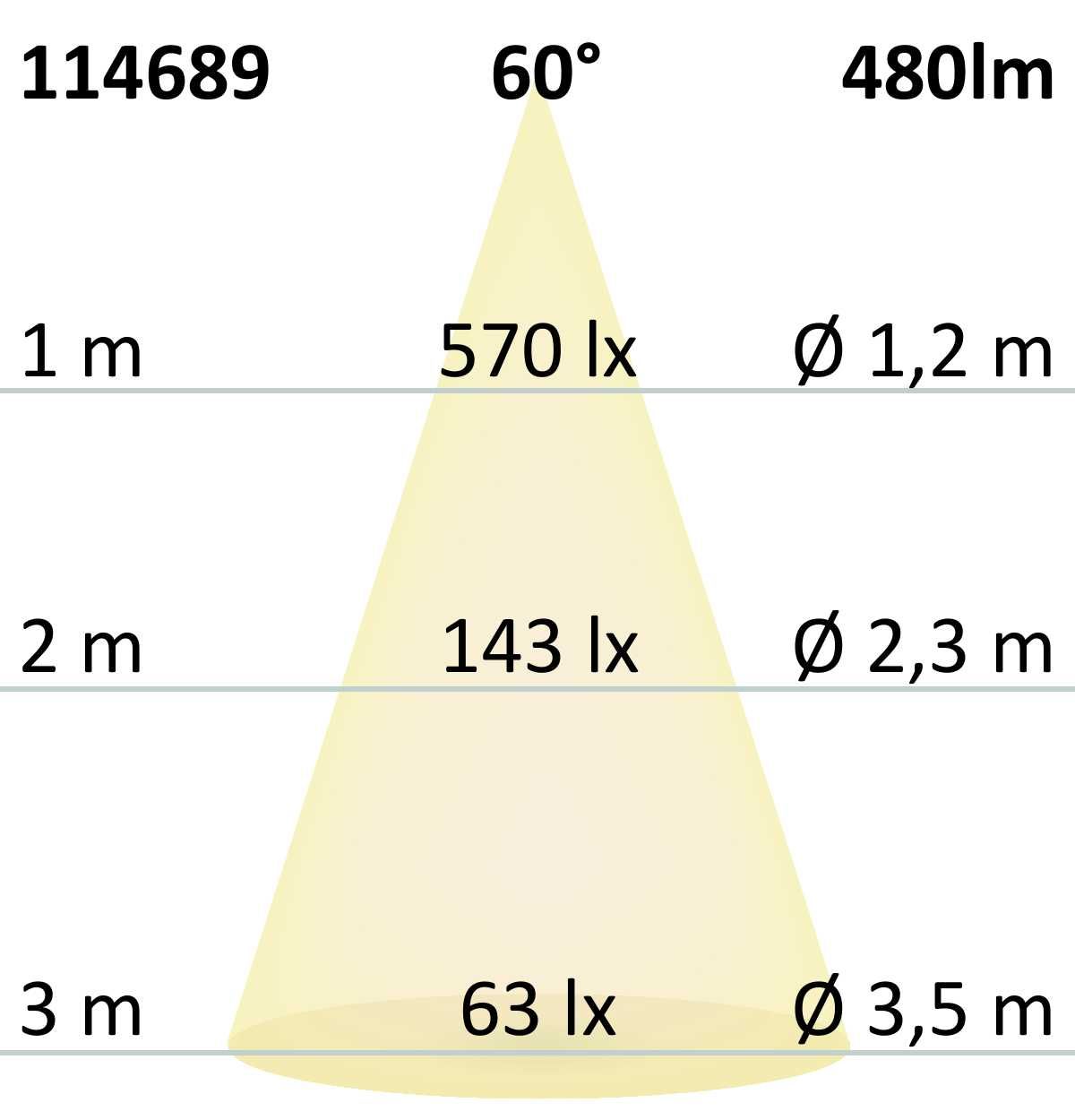

| Beam angle | 60° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP52 |
| Permissible ambient temp. | -20°C – 45°C |
| Housing material | Aluminum |
| Housing color | silver/gray |
| Weight in gramm | 112 |

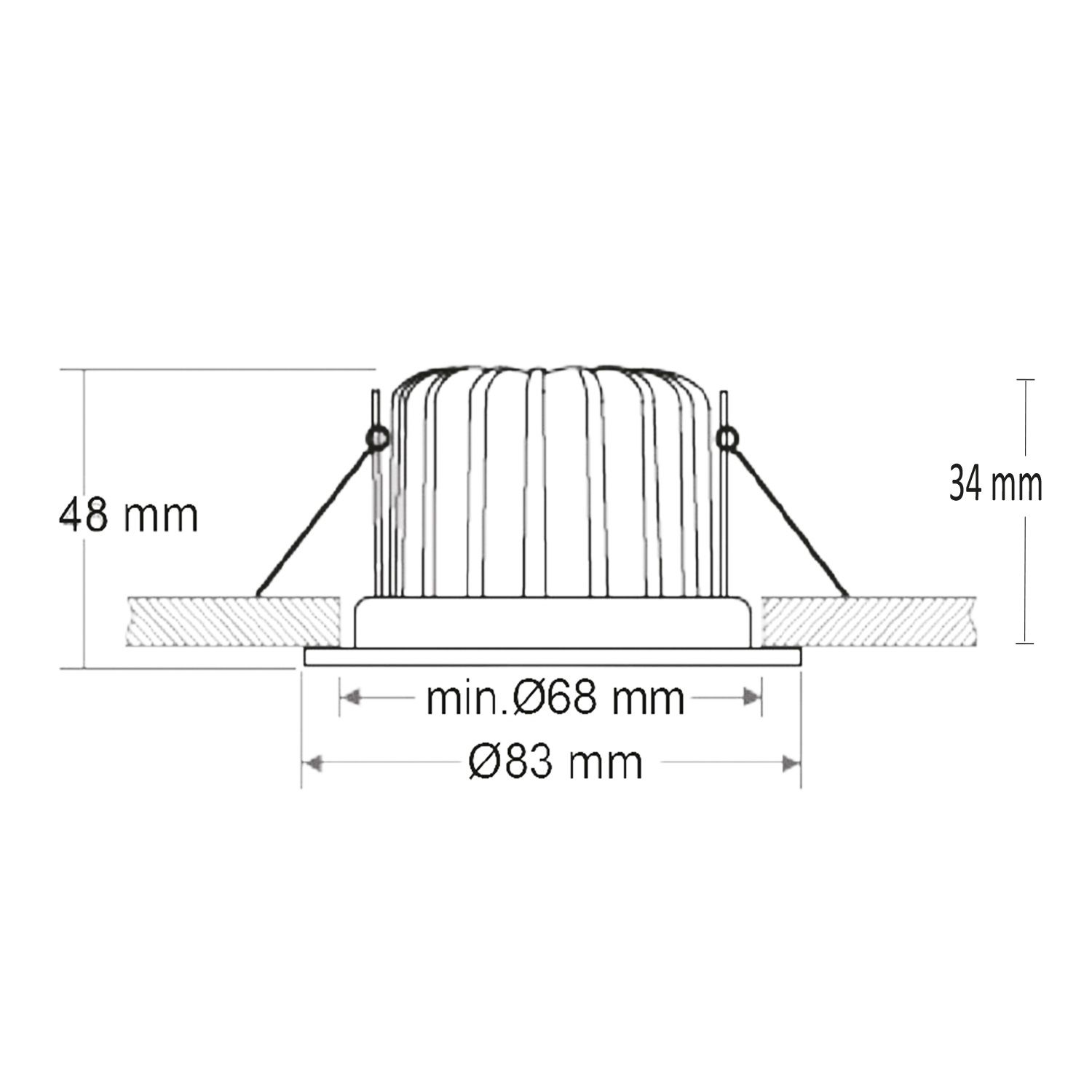

| Height in mm | 35,0 |
| Diameter in mm | 83.00 mm |
| Hole cut-out | 68 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 34 |
| SELV | N |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
| Hole cutout type | Circle |
Data
| LEDs count x type | |
|---|---|
| Input voltage | |
| Beam angle | |
| Lifetime L70 | |
| IP class | |
| Dimmable (adj. brightness) | |
| Color Rendering Index | |
| Width (mm) | |
| Recess depth (mm) | |
| Light Color | |
| Light output- Lumens | |
| Brands | |
| In stock (Vana-Tartu mnt 79A) | No |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
| Power consumption/Max power | |
| Finish Colour |
