LED driver 150-1050mA | eldoLED ECOdrive 20CA-E1Z0D | 20W | DALI

45,00 €

Price without 24% VAT: 36,29 €

Add to quote

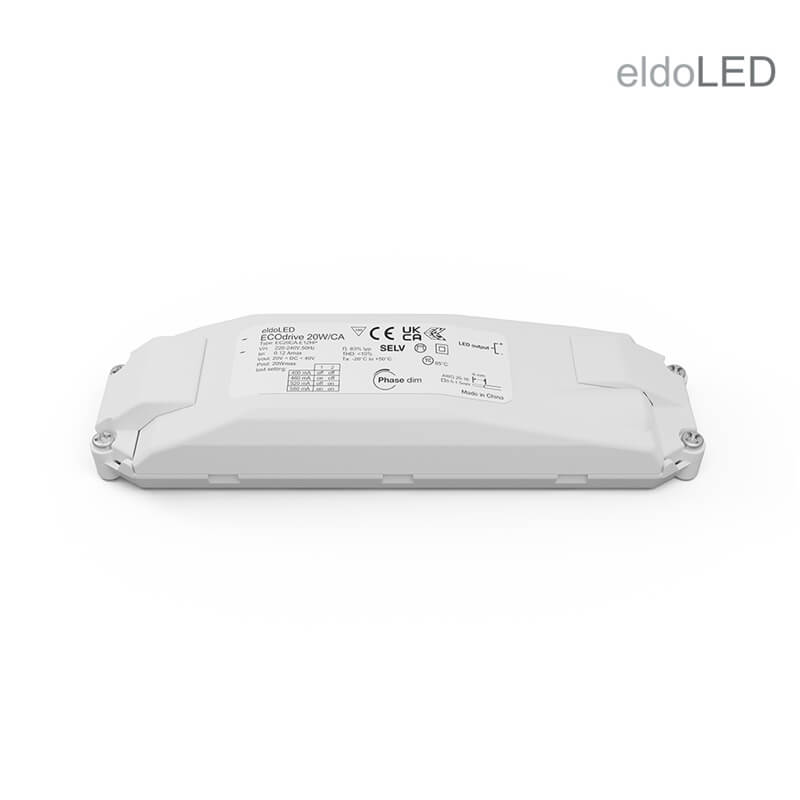

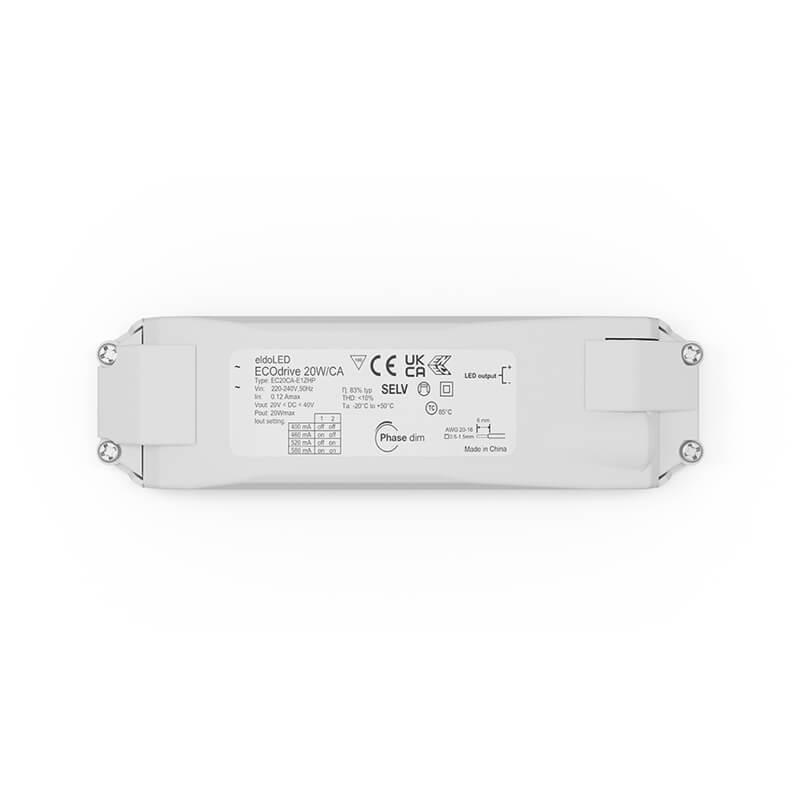

Designed specifically for downlights, this eldoLED ECOdrive LED driver offers a unique combination of adjustable output current within a compact design. This ensures easy and safe installation, as you only need a 45 mm cutout.

Features

• Compact size for easy installation. The driver fits through openings of only 45 mm and even works in ceilings with only 100 mm space.
• Easy programming thanks to the LEDcode interface.
• Flicker-free dimming for a smooth dimming experience from 100% to 1%

Technical data: LED driver | eldoLED ECOdrive 20CA-E1Z0D | 20W | DALI

Input voltage220-240V
Maximum Power20 Watt
Output current150 – 1050 mA
Output voltage2 – 40 Volt
DimmableYes
ProtocolDALI
Power factor>0.95
Working temperature-20°C / +50°C
IP rateIP20

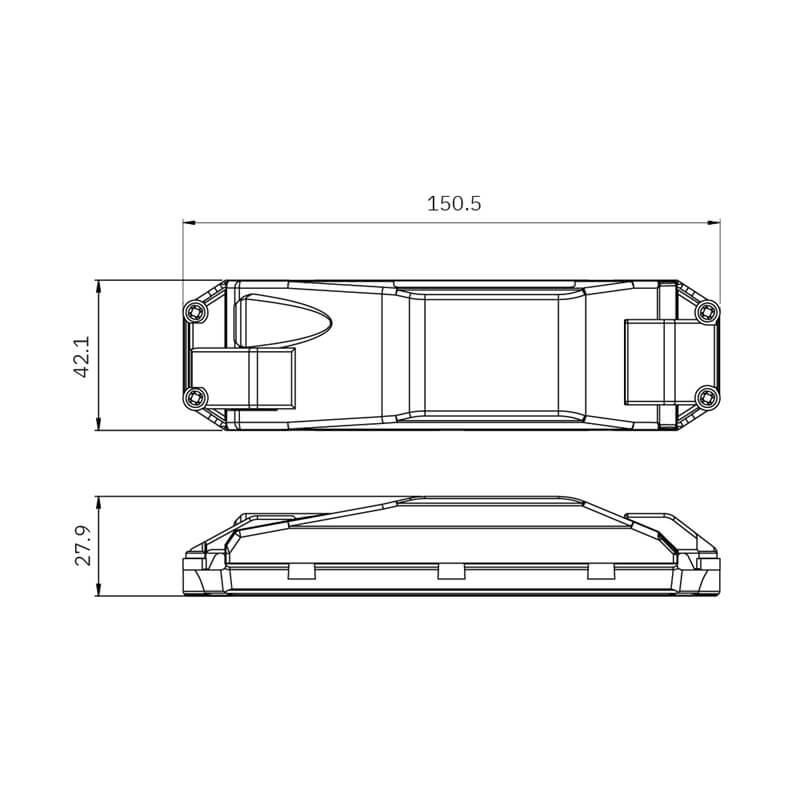

Length150,5 mm
Width42,1 mm
Height27,9 mm
Cable lengthN/a
Connection typeTerminal block
Housing colorWhite
Maximum temperature housing85°C
Certification markCE
Warranty5 years

SKU: TRX-215-604 Categories: CC Drivers for LED, DALI LED lighting

Data

In stock (Vana-Tartu mnt 79A)	No
Brands	eldoLED
Input voltage	220-240V
Output current	150 – 1050mA
Output voltage	2 – 40 Volt
Dimmable (adj. brightness)	Dali
Protocol	DALI
Power factor	>0.9
IP class	IP20
Length (mm)	150
Width (mm)	42
Height (mm)	28
Connection type	Terminal block
Finish Colour	White
Working temperature	-20°C / +50°C
Certifications	CE
Warranty	5 years
Power consumption/Max power	20W
