LED driver 150-1400mA | eldoLED ECOdrive 560/A | 50W | DALI

The ECOdrive LED drivers from eldoLED feature a programmable output (constant current) and dim smoothly down to 1%, with excellent flickerfree performance. Also easy to apply in combination with single color, dimmable LED fixtures on a DALI basis.

Features

• Can be combined with the 214-231 Casambi module (via the LED code input)
• Can be combined with a variety of LED lighting, including single color lighting on DALI
• Output current: 150 – 1400 mA
• Output voltage: 2 – 55 volts

Technical data:

Programmable digital ECOdrive LED driver providing standard LED fixtures with the smoothest flicker-free dimming to 1% light output,
delivering value to any application. The LED driver is compatible with the DALI-2 lighting control protocol, and works seamlessly
together with LED modules, controls and intelligent luminaire elements.

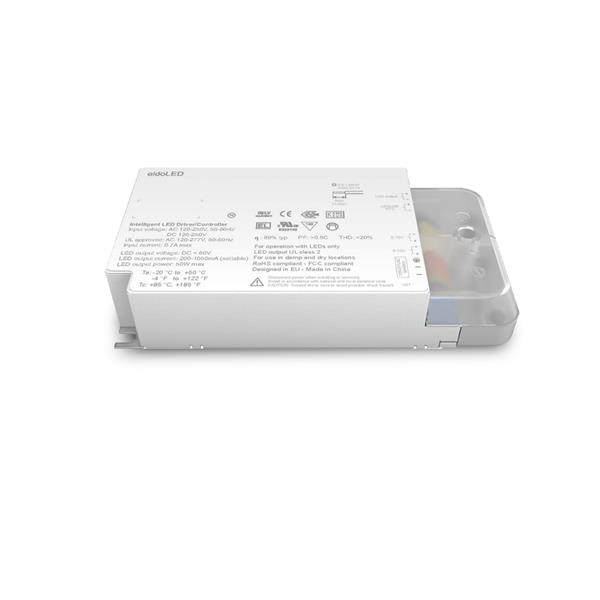

ECOdrive 560/A
Part number (P/N) EC0560A5
Product description ECOdrive, 50W, DALI-2, 1 control channel, constant current, 1x 55V output,
side feed, square metal/plastic
Features & benefits
Natural dimming Dim to 1%, smooth brightness changes, excellent flicker performance,
adaptable dimming curves, configurable minimum dimming level
LEDcode LEDcode2 connects to integrated digital accessories, supports location-based
IoT applications and enables wired and wireless lighting control through
LEDcode peripheral devices
Programmable Fine-tune your driver for any application
Performance Universal input voltage range, low inrush current and total harmonic distortion
(THD), high power factor and efficiency
Camera compatibility Hybrid HydraDrive technology is proven to work in TV studios and security
camera environments
Pulse dimming Different switching and dimming functions are initiated by pressing and holding
the standard mains voltage switch for varying lengths of time

Input characteristics
Nominal input voltage range 120 – 250 VAC (ENEC), 120 – 277 VAC (UL)
120 – 250 VDC
Absolute input voltage range 108 – 305 VAC
Input frequency range 50 – 60 Hz
Maximum input current 0.65A @ 120 VAC
0.36A @ 230 VAC
0.30A @ 277 VAC
Efficiency at full load 87.5%
Power factor at full load > 0.95
THD at full load < 15%
Maximum inrush current < 100mA²s @ 120 VAC
< 100mA²s @ 230 VAC
< 100mA²s @ 277 VAC
Surge protection 2kV differential mode (DM)
2kV common mode (CM)
Maximum standby power < 0.5W
