LED Driver 350mA 9W | Flicker Free | Triac Dimmable

Name: LED Driver 350mA 9W | Flicker Free | Triac Dimmable
SKU: TRX-215-379
Availability: BackOrder

Out of stock status:

7-14 Days

Add to wishlist

Compare

13 – 26 Volt LED Driver 350mA 9W | Flicker Free | Triac Dimmable

22,00 €

Price without 24% VAT: 17,74 €

Add to quote

This flicker-free LED driver has a maximum output of 9W and 350mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks smooth at all times.

Features

• Dimmable on phase cut-off and cut-on
• Output voltage from 13 ~ 26 V

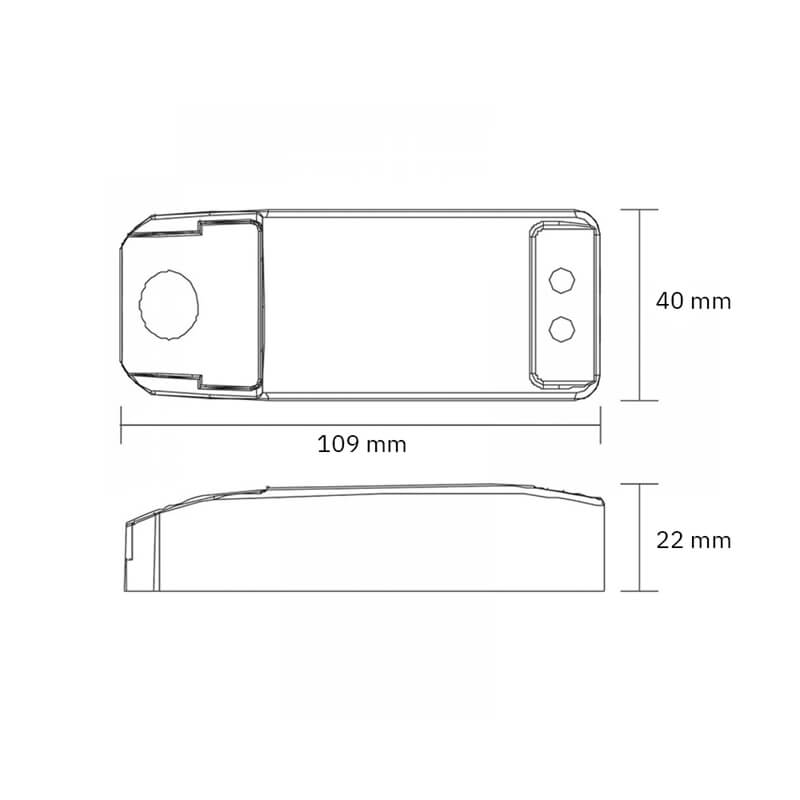

• Compact size 109*40*22 mm

Technical data: LED driver | 350mA | 9 watt | flicker free | trailing edge

Input voltage220-240V
Maximum Power9 Watt
Output current350 mA
Output voltage13 – 26 Volt
DimmableYes
ProtocolTriac
Power factor>0.90
Working temperature-20°C / +50°C
IP rateIP20
Length109 mm
Width40 mm
Height22 mm
Cable lengthN/a
Connection typeTerminal block
Housing colorBlue
Maximum temperature housing80°C
IsolationSELV
Certification markCE
StandardsEN 61347-2-13, EN 55015, EN 61000-3-2 Class C, EN 61547
Warranty5 years

SKU: TRX-215-379 Category: CC Drivers for LED Brand: Tronix

Data

In stock (Vana-Tartu mnt 79A)	No
Brands	TRONIX LIGHTING
Input voltage	220-240V
Max	9 Watt
Output current	200 mA / 250 mA / 300 mA / 350 mA
Output voltage	13 – 26 Volt
Dimmable (adj. brightness)	Yes
Protocol	Dali / Push / Triac / 1-10V
Power factor	>0.9
IP class	IP20
Length (mm)	109 mm
Width (mm)	40
Height (mm)	22
Cable length	N/a
Connection type	Terminal block
Finish Colour	Blue
Working temperature	-20°C / +50°C
Certifications	CB, CCC, CE, ENEC
Warranty	5 years
Out of Stock Delivery Time From Supplier	7-14 days
