LEDSys-90 MiniAMP 10W 24V 3000K CRI92 dimmable (excl. cover) recessed spotlight

Name: LEDSys-90 MiniAMP 10W 24V 3000K CRI92 dimmable (excl. cover) recessed spotlight
SKU: ISO-114881
Availability: InStock

Availability:

In Stock

IP44 LED DOWNLIGHT 83x41mm LEDSys-90 MiniAMP 10W 24V 3000K 775lm CRI92 dimmable (excl. cover) recessed spotlight

28,00 €

Price without 24% VAT: 22,58 €

1 in stock

Product description	LED Recessed spotlight Sys-90 MiniAMP, 10W, 24V DC 3000K, CRI92, dimmable (excl. cover)
GTIN – EAN	9009377091216
Features

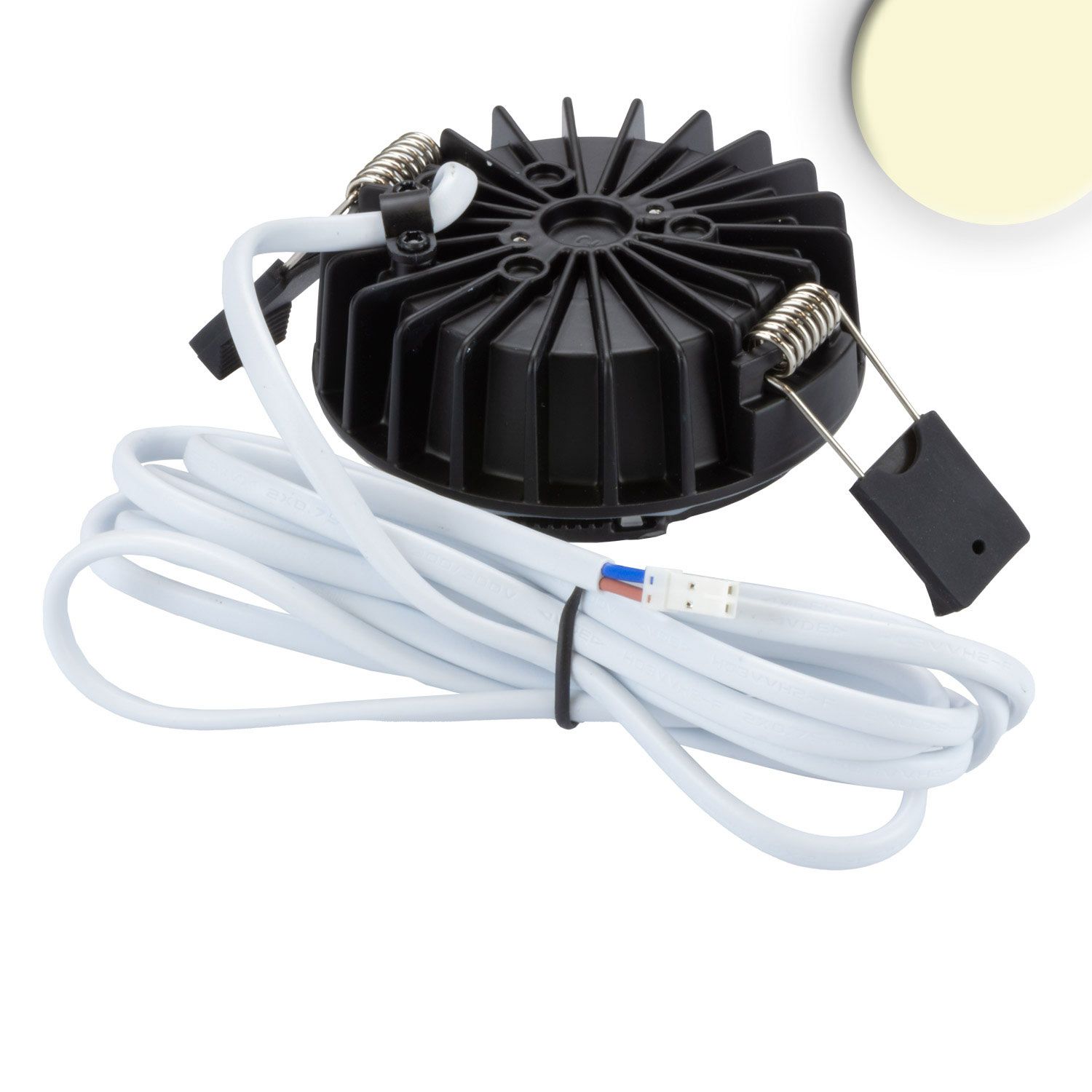

Special features	Incl. 1500mm connection cable with MiniAMP male plug, wire cross-section 0,5mm²
Nominal voltage	24 V DC
Rated power	10 W
Permissible ambient temp.	-20°C – 40°C
min. ambient temperature in °C	-20
max. ambient temperature in °C	40
Active power	9,9 W
Luminous flux in lumen	775 lm
Efficiency in LM	78
Color temperature	3000K
CRI Ra	92

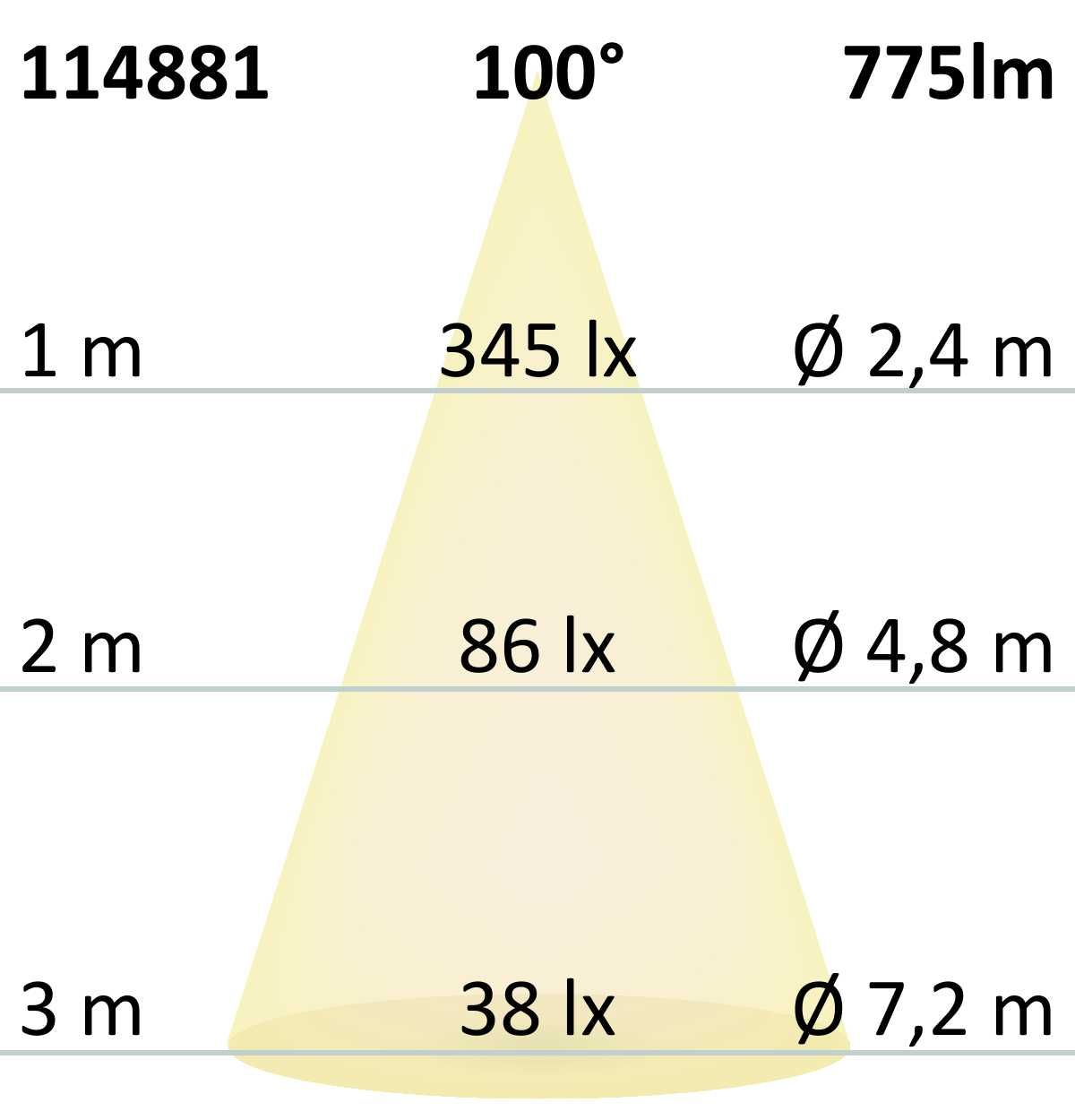

Beam angle	100°
Beam angle type	fixed
Dimmable	Yes
Dimming type	PWM
Protection class	IP44
Housing material	Aluminum
Housing color	black
Weight in gramm	240

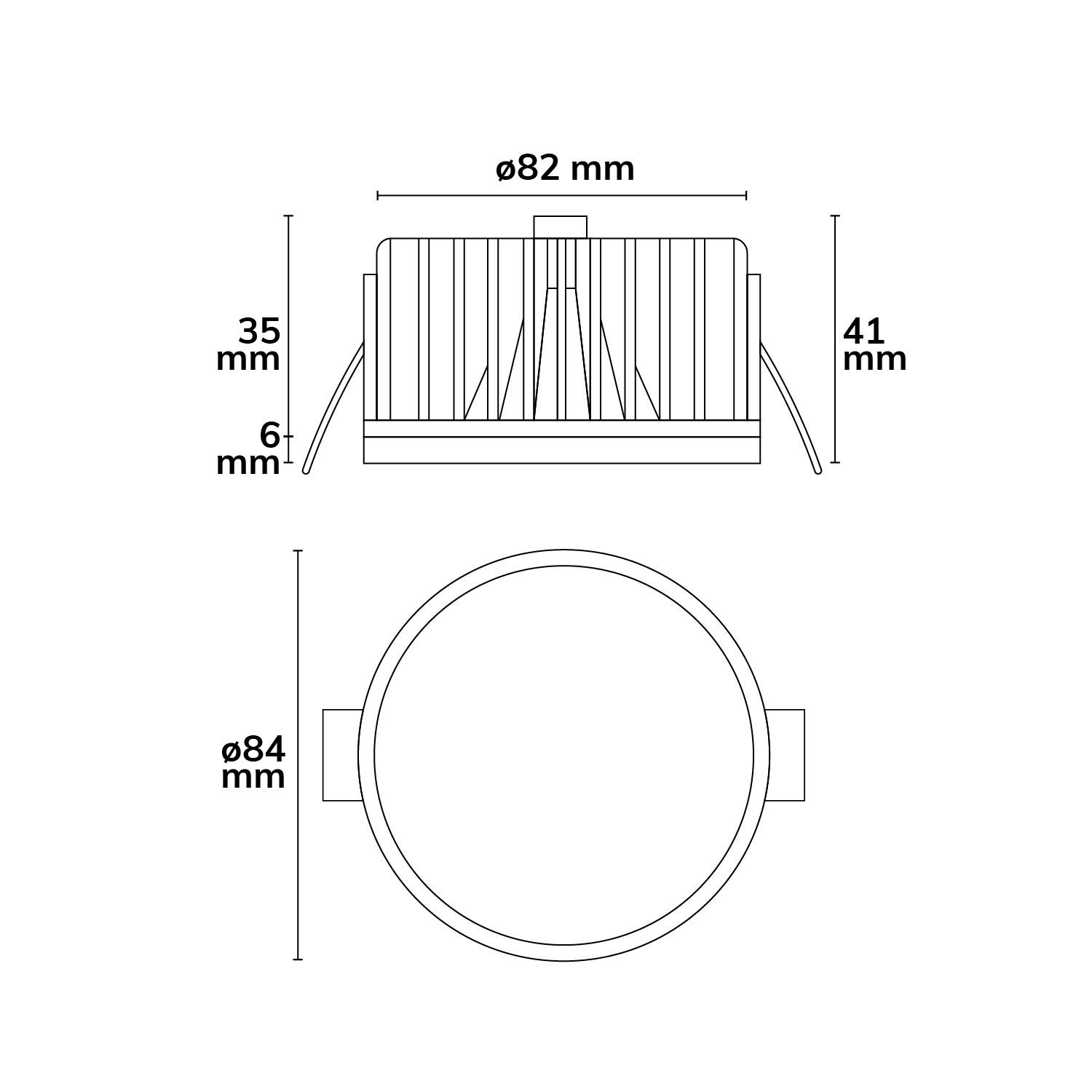

Height in mm	41,0
Diameter in mm	108.00 mm
Hole cut-out	90 mm
Hole cutout type	Circle
Installation depth in mm	35
Protection class	2
ext. Transformer length	0.00
ext. Transformer width	0.00
ext. Transformer height	0.00
Lifetime L70\|B10	53000
Useful life L70\|B50	80000
Useful life L80\|B50 in hours	70000
Guarantee in years	2

Data

Beam angle	100°
Lifetime L70	53 000h
Working temperature	-20° – 40°
IP class	IP44
Dimmable (adj. brightness)	Yes
Color Rendering Index	CRI>92
Recess depth (mm)	35
Light Color	3000K
Light output- Lumens	775lm
Brands	ISOLED
In stock (Vana-Tartu mnt 79A)	Yes
Out of Stock Delivery Time From Supplier	7-14 Days
Power consumption/Max power	10W
Finish Colour	Optional
Mounting hole / cutout (mm)	90
Input voltage	24V DC
Protocol	PWM
