12V LED strips

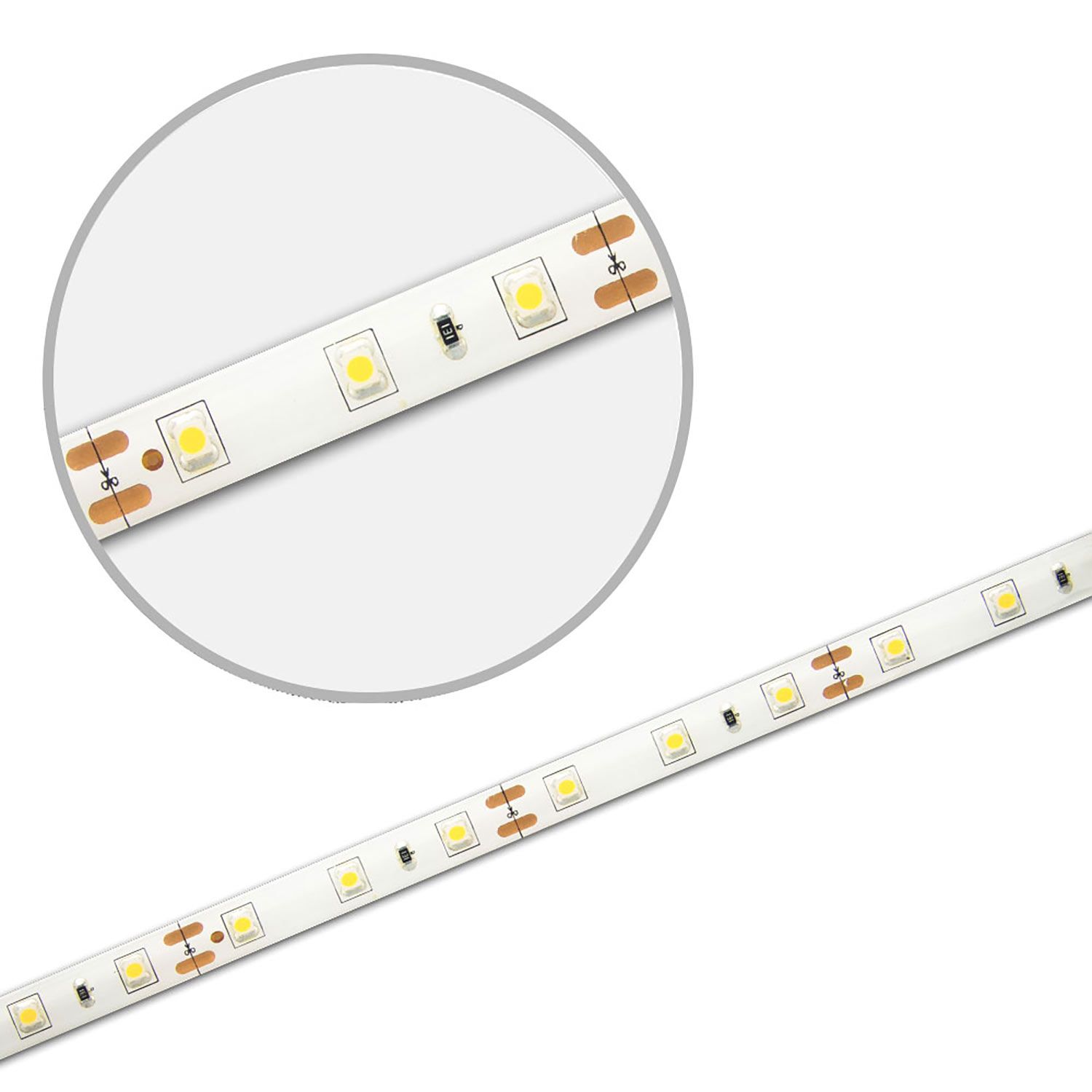

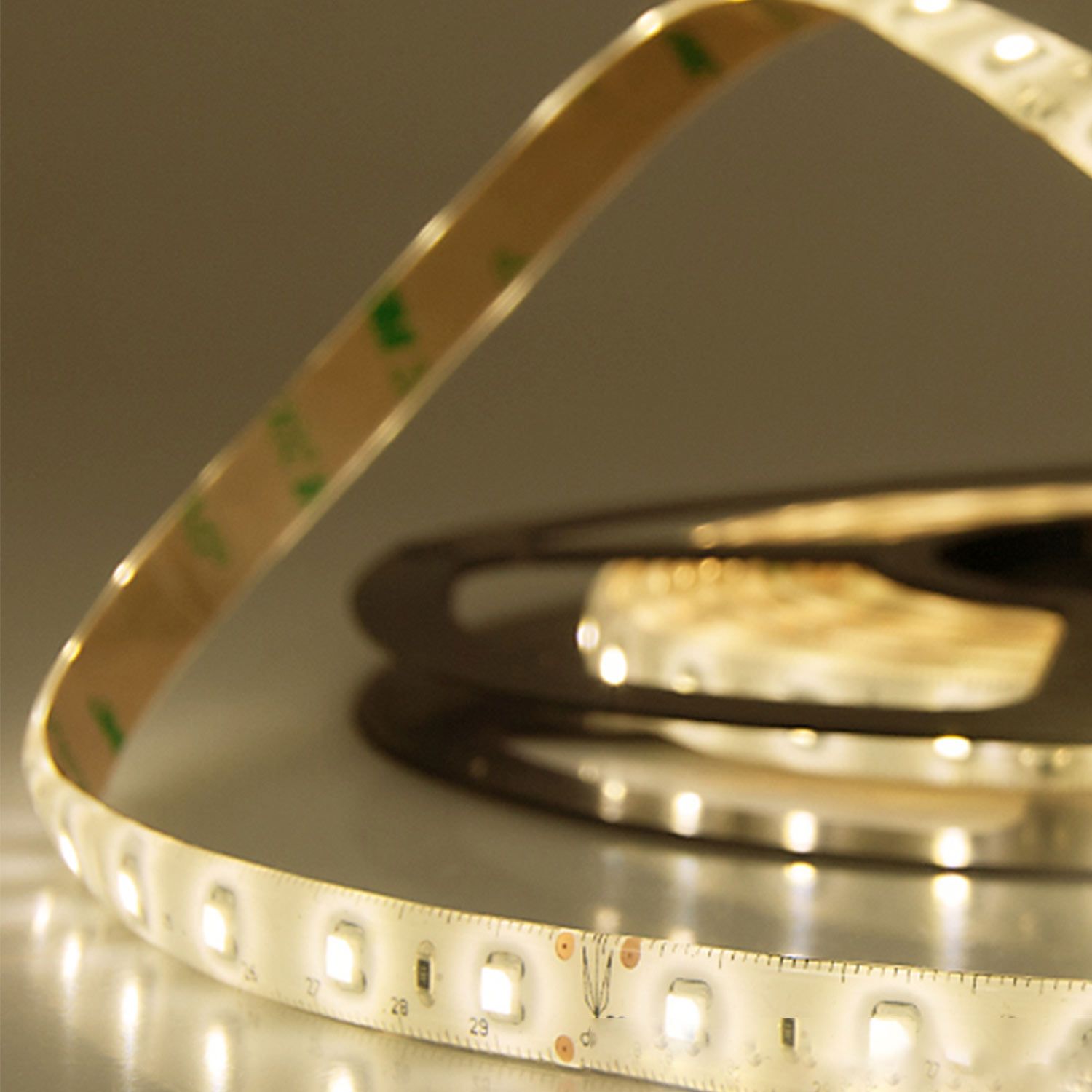

LED SIL830 flex strip 12V 4.8W 450lm/m IP66 3000K warm white, 60LED/m 5m
Out of stock status:
7-14 Days
Separation point: 50mm with 3 SMD each | pitch (chip centre to centre)
37,00 €
Price without 24% VAT: 29,84 €
| Product description | LED SIL830 flex stripe, 12V DC, 4,8W, IP66, 3000K, 5m roll, 60 LED/m |
|---|---|
| GTIN – EAN | 9009377019708 |
| Features |       |
| Description of | It’s a flexible light strip suitable for both indoor and outdoor use. Its beam angle is fixed at 120°. It’s dimmable via PWM. The color temperature is a pleasant 3000 Kelvin, and the housing is white. Its light output is rated at a highly efficient 102 lumens per watt. The strip is made of a flexible copper circuit board and silicone and is protected against insect penetration and strong water jets. Its useful lifespan is an impressive 38,000 operating hours. |
| Special features | Separation point: 50mm with 3 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 7,5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 12V DC |
| Rated power | 4,8 W/m |
| Active power | 4,8 W/m |
| Efficiency in LM | 93 |
| Luminous flux in lumen | 450 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 85 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP66 |
| Outdoor | AND |
| Permissible ambient temp. | -20°C – 40°C |
| Housing material | Silicone |
| Potting material | Silicon |
| LED chips per metre | 60,000000 |
| LED/roll | 300,00 |
| Properties of connection cable | Connection cable on both sides |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 3,000000 |
| Pitch SMD (mm) | 16.67 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 7.50 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 186 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
Data
| Width (mm) | |
|---|---|
| Working temperature | |
| In stock (Vana-Tartu mnt 79A) | No |
| LEDs count x type | |
| Finish Colour | |
| Input voltage | |
| Beam angle | |
| Lifetime L70 | |
| Length (mm) | |
| Dimmable (adj. brightness) | |
| IP class | |
| Color Rendering Index | |
| Light Color | |
| Light output- Lumens | |
| Brands | |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
| Power consumption/Max power |
