7-14 Days
Separation point: 100mm with 6 SMD each | pitch (chip centre to centre
66,00 €
Price without 24% VAT: 53,23 €

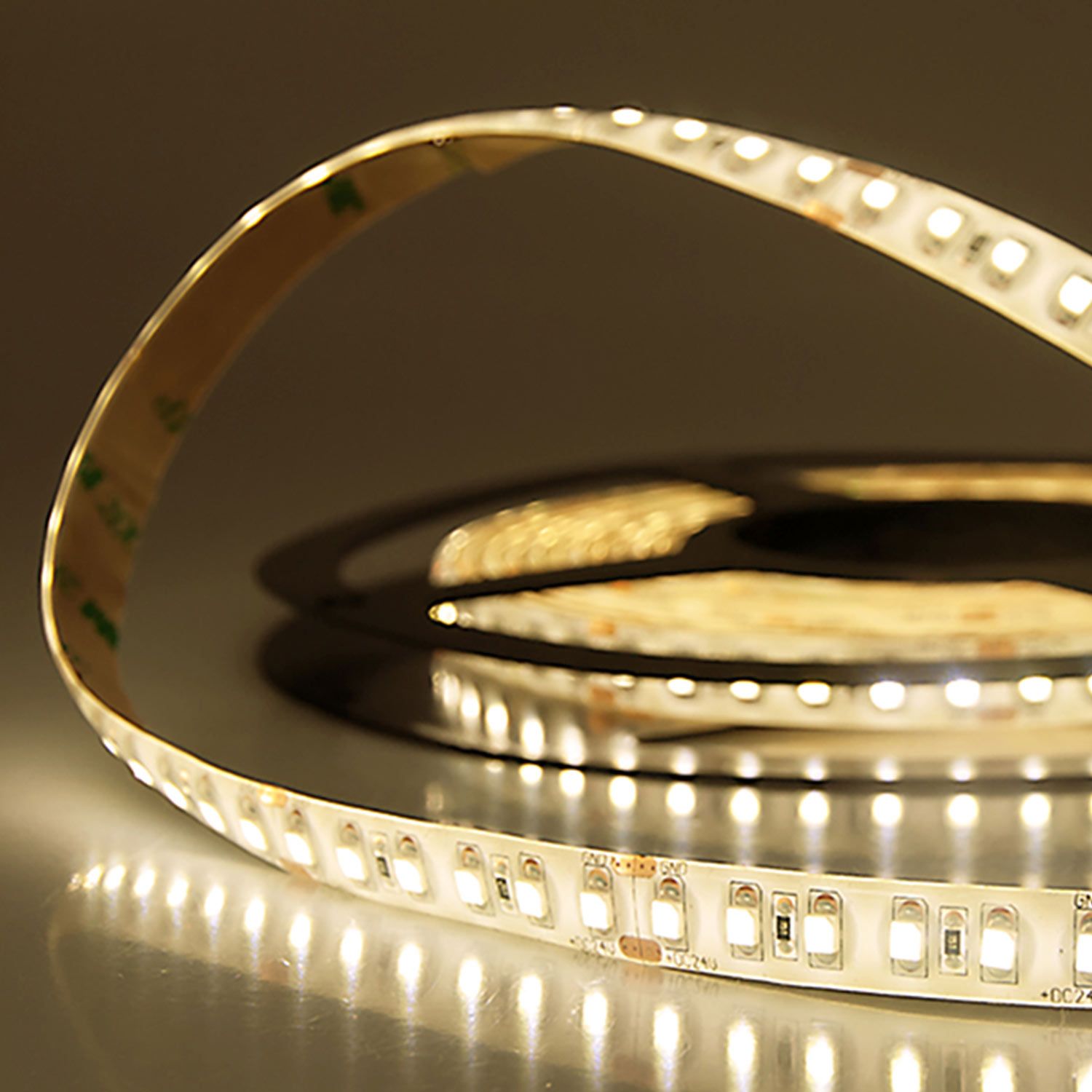

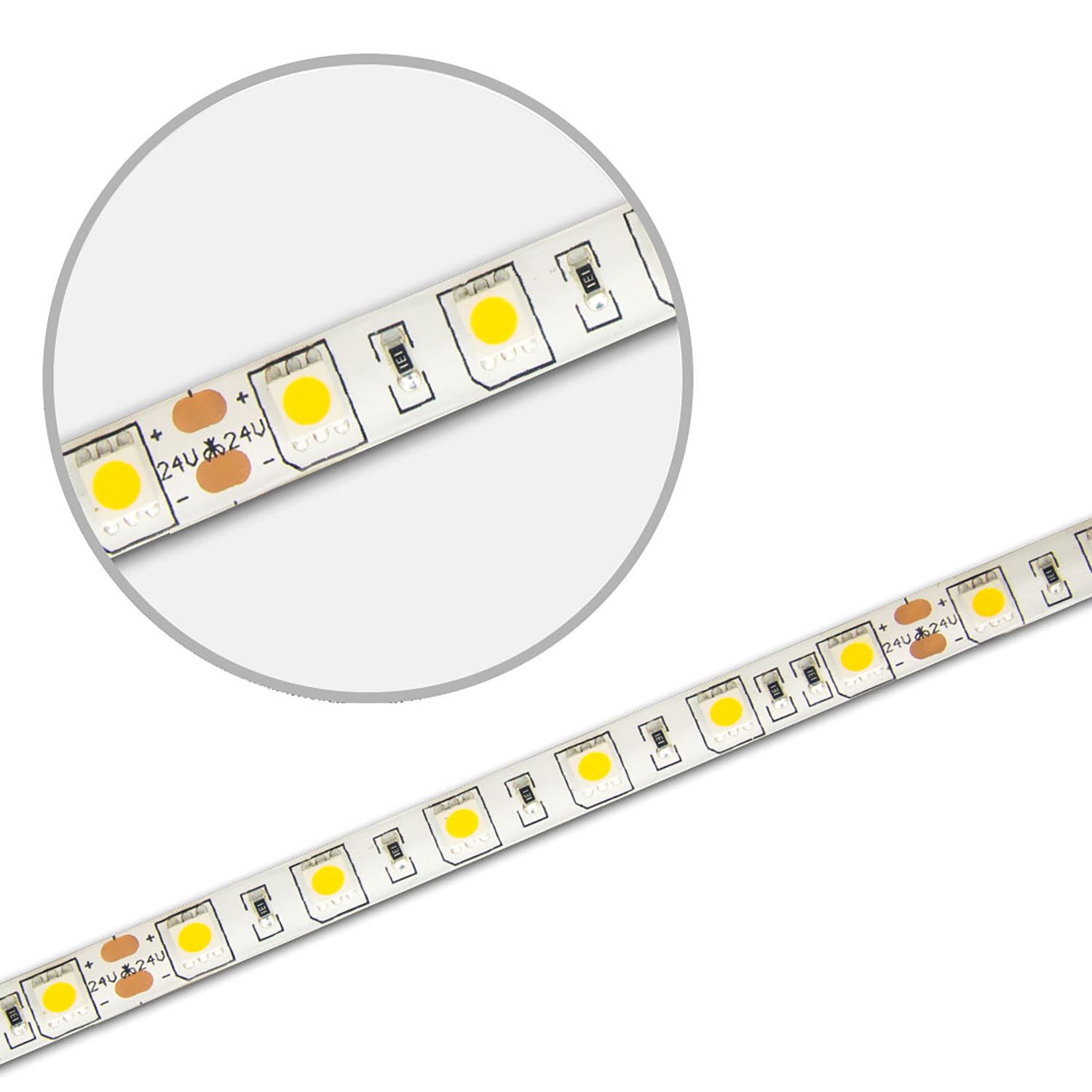

| Product description | LED SIL830 flex stripe, 24V DC, 14,4W, IP66, 3000K, 5m roll, 60 LED/m |
|---|---|
| GTIN – EAN | 9009377019845 |
| Features |       |
| Special features | Separation point: 100mm with 6 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 24V DC |
| Rated power | 14,4 W/m |
| Active power | 14,4 W/m |
| Efficiency in lm/W | 86 |
| Luminous flux in lumen | 1250 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | -20°C – 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 82 |

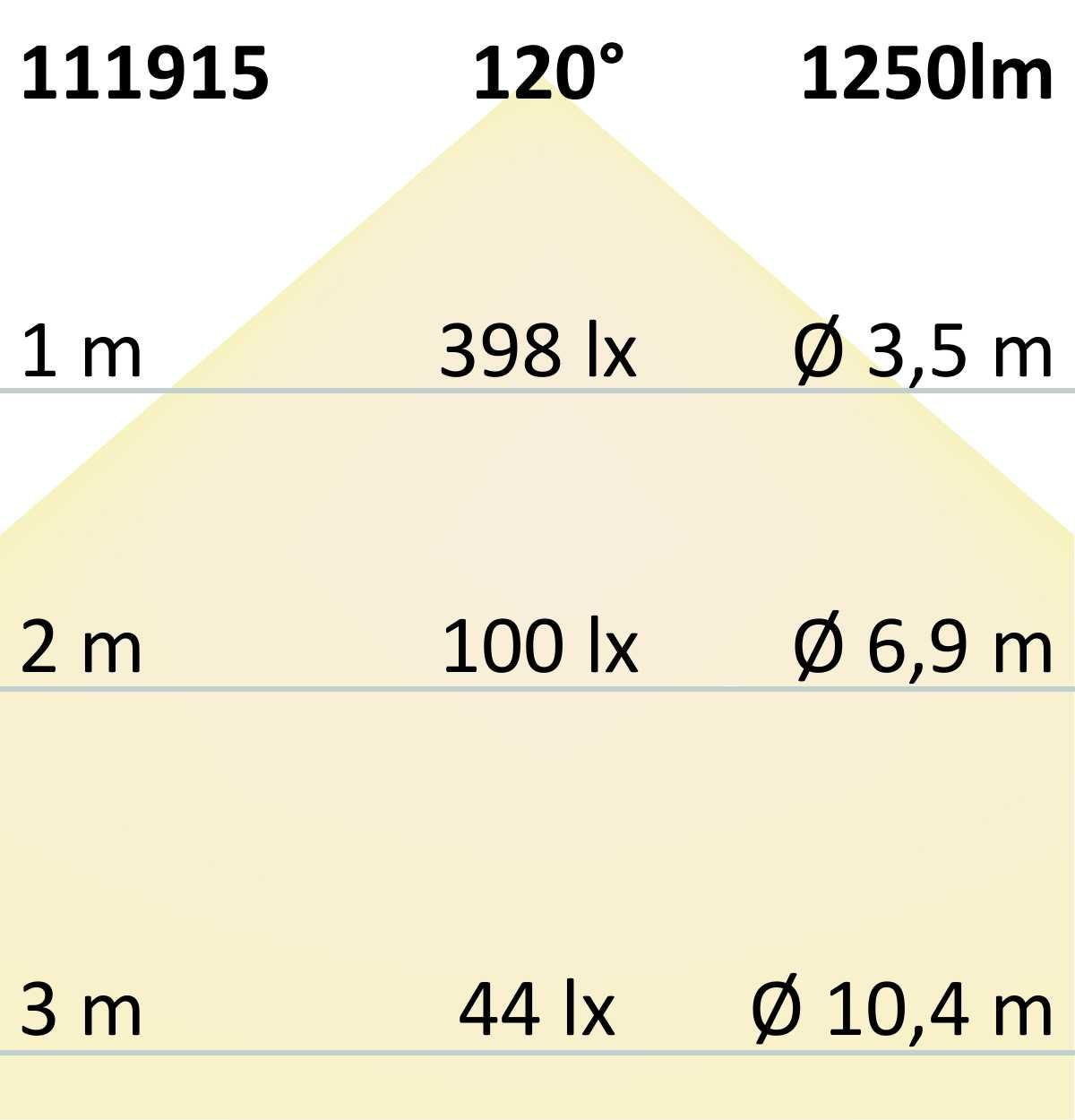

| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP66 |
| Housing material | Silicone |
| Potting material | Silicon |
| LED chips per metre | 60.000000 |
| LED/roll | 300,00 |
| Properties of connection cable | Connection cable on both sides |
| Separation point (mm) | 100.00 mm |
| LED/disconnection point | 6.000000 |
| Pitch SMD (mm) | 16.67 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 218 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Width (mm) | |
|---|---|
| Working temperature | |
| In stock (Vana-Tartu mnt 79A) | No |
| LEDs count x type | |
| Finish Colour | |
| Input voltage | |
| Beam angle | |
| Lifetime L70 | |
| Length (mm) | |
| Dimmable (adj. brightness) | |
| IP class | |
| Color Rendering Index | |
| Light Color | |
| Light output- Lumens | |
| Brands | |
| Out of Stock Delivery Time From Supplier | 7-14 Days |
| Power consumption/Max power |
