PHILIPS Driver | Output Prog. 700 – 1500mA 24-48V | 50W | non dim.

PHILIPSTRONIX LIGHTING
Out of stock status:


PHILIPS Driver | Output Prog. 700 – 1500mA 24-48V | 50W | non dim.

45,00

Price without 24% VAT: 36,29

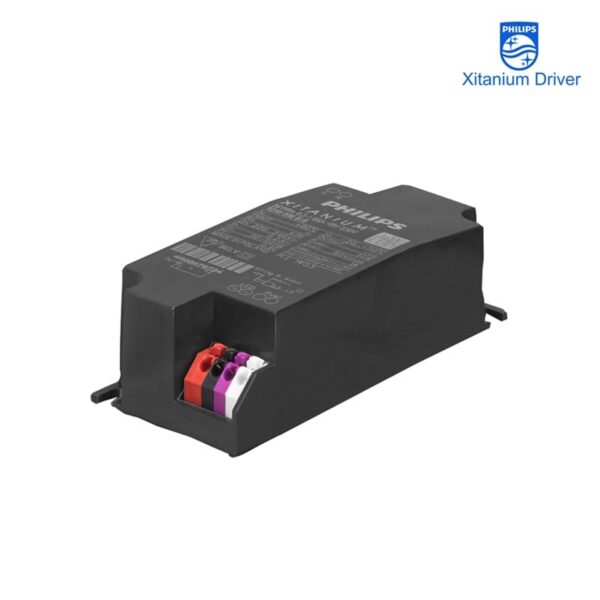

This Philips Xitanium LED driver can be set via SimpleSet in an output of 700mA to 1500mA. SimpleSet is the latest technology from Philips which makes it possible to wireless adjust the LED driver via NFC to a desired output. This means that only one LED driver is needed for multiple applications.

Features

• Easily install the MultiOne Configurator Software.
• Connect the MultiOne SimpleSet Interface and choose the Xitanium LED program configuration.
• Place the LED Driver to be configured on the SimpleSet platform with USB connection (exclusive, available on request).
• The software displays a green check mark to confirm the configuration.
• Didn’t choose the right output? Reprogramming with SimpleSet can easily be done in the same way.

Not in possession of the MultiOne Software? Ask us to configure the SimpleSet drivers for you!

Technical data: Philips driver | output prog. 700 – 1500mA | 50W | non dim

  • Input voltage220-240V
  • Maximum Power50 Watt
  • Output current700 – 1500 mA
  • Output voltage24 – 48 Volt
  • DimmableNo
  • ProtocolN/a
  • Power factor>0.90
  • Working temperature-20°C / +50°C
  • IP rateIP20
  • Length97,2 mm
  • Width43 mm
  • Height30 mm
  • Cable lengthN/a
  • Connection typeTerminal block
  • Housing colorBlack
  • Maximum temperature housing80°C
  • IsolationSELV
  • Certification markCB, CCC, CE, ENEC
  • StandardsIEC61347-1, IEC61000-4-5, IEC61347-1, IEC60598,
  • Warranty5 years
SKU: TRX-215-222 Category:

Data

In stock (Vana-Tartu mnt 79A)

No

Brands

,

Input voltage

Dimmable (adj. brightness)

Protocol

N/a

Power factor

IP class

Length (mm)

Height (mm)

Cable length

N/a

Connection type

Terminal block

Finish Colour

Working temperature

Certifications

Warranty

Power consumption/Max power
