Power Supply 24V 200W Triac Dimmable | Outdoor IP67

24V Power Supply for LED

Power Supply 24V 200W Triac Dimmable | Outdoor IP67

Name: Power Supply 24V 200W Triac Dimmable | Outdoor IP67
SKU: TRX-215-004
Availability: InStock

Availability:

In Stock

Add to wishlist

Compare

249*72*40 mm IP67 dimmable power supply 24V max 200W

110,00 €

Price without 24% VAT: 88,71 €

1 in stock

Add to quote

Extended datasheet

This sturdy LED driver has a maximum output of 200W and 24V and is extremely well suited for use with various light sources. The technologies present provide a smooth, stepless dimming experience from 1 – 100%.

Features

• trailing edge and leading edge
• Output power 2700 ~ 8300 mA

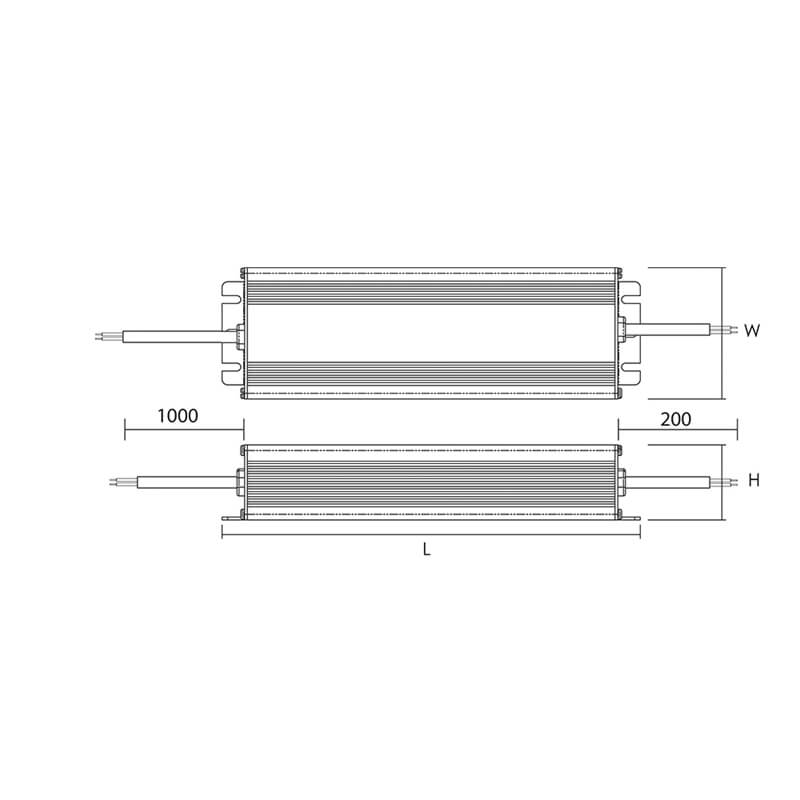

• Compact size 249*72*40 mm

Technical data: Power supply | 24V | 200W | triac dimmable | outdoor

Input voltage 220-240V
Maximum Power 200 Watt
Output voltage 24 Volt
Dimmable Yes
Protoco lTriac
Power factor>0.95
Working temperature-20°C / +50°C
IP rate IP67
Length 249 mm
Width 72 mm
Height 40 mm
Cable length 50 cm
Connection type Stripped wire
Housing color Aluminium
Maximum temperature housing 80°C
Isolation SELV
Certification mark CE
Standards EN 61347-2-13, EN61000-3-2 Class C, EN55015, EN61547
Warranty 5 years

SKU: TRX-215-004 Category: 24V Power Supply for LED Brand: Tronix

Data

In stock (Vana-Tartu mnt 79A)	Yes
Brands	TRONIX LIGHTING
Input voltage	220-240V
Max	200W
Output voltage	24 V DC
Dimmable (adj. brightness)	Yes
Protocol	Triac
IP class	IP67
Length (mm)	249 mm
Width (mm)	72 mm
Height (mm)	40
Cable length	30 cm
Finish Colour	Aluminium
Connection type	Stripped wire
Working temperature	-20 °C to +40 °C
Certifications	EN 61347-2-13, EN61000-3-2 Class C, EN55015, EN61547
Warranty	5 years
Out of Stock Delivery Time From Supplier	7-14 days
