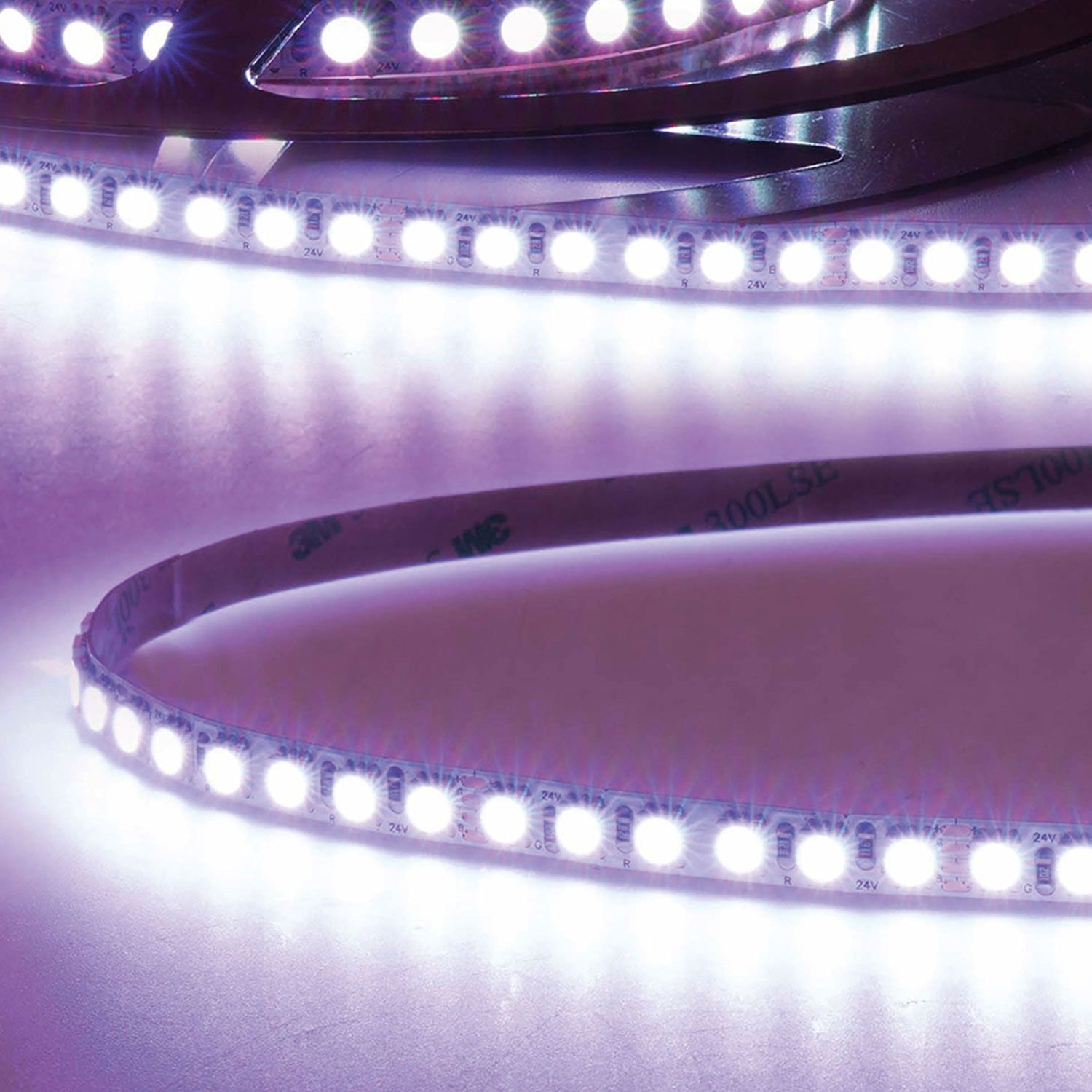

8mm RGB LED strip 24V 12W 120LED/m Micro 5m

Name: 8mm RGB LED strip 24V 12W 120LED/m Micro 5m
SKU: ISO-113599
Availability: BackOrder

Saadavus:

7-14 päeva

132,00 €

Price without 24% VAT: 106,45 €

Product description	LED RGB MICRO flex stripe, 24V DC, 12W, IP20, 5m roll, 120 LED/m
GTIN – EAN	9009377059803
Features
Special features	Separation point: 50mm with 6 SMD each \| Pitch (light point center-center): 8,33mm \| 1 unit (roll) = 5m \| max. flex stripe length per infeed: 5m \| length tolerance + thermal expansion: 1% \| required cooling mass min. 75 gr/m \| incl. 3M 300LSE adhesive tape \| Clean and degrease surface before application! Do not remove again! \| Special feature: connection cable on both sides
Nominal voltage	24 V DC
Rated power	12 W/m
Active power	12 W/m
Efficiency in LM	0
RGB light source	Yes
Permissible ambient temp.	0°C – 40°C
max. ambient temperature in °C	40
min. ambient temperature in °C	0
Beam angle	120°
Dimmable	Yes
Dimming type	PWM
Dimming Specifications	Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer
Protection class	IP20
Outdoor	N
LED chips per metre	120.000000
LED/roll	600,00
Properties of connection cable	cable on both ends
Separation point (mm)	50.00 mm
LED/disconnection point	6.000000
Pitch SMD (mm)	8.33
Cooling mass g/m	75.00 g/m
Max. length per feed (m)	5.00 m
Tape type	3M 300LSE
Weight in gramm	122
Width in mm	8,0
Length in mm	5000,0
Height in mm	2,0
Lifetime L70\|B10	52000
Useful life L70\|B50	78000
Useful life L80\|B50 in hours	68000
Guarantee in years	2

Tootekood: ISO-113599 Kategooriad: 24V LED riba, Kitsad LED-ribad, Värvilised LED ribad

Data

Kõrgus(mm)	2,2
Laius (mm)	8
Pikkus(mm)	5000
Korpuse värv	Valge
Input	24V DC
Valgusvihu laius	120°
Tööiga L70	25 000hrs
Töötemperatuur	-20° – 40°
IP klass	IP20
Dimmerdatav (hämardatav)	Jah
Värvieraldusindeks (CRI)	CRI>92
Valguse toon	RGB
Bränd	ISOLED
Laos (Peetri, Vana-Tartu mnt 79A)	Ei
Tarneaeg (kui toode ei ole Eesti laos)	7-14 päeva
Voolutarve/Max W	12W
