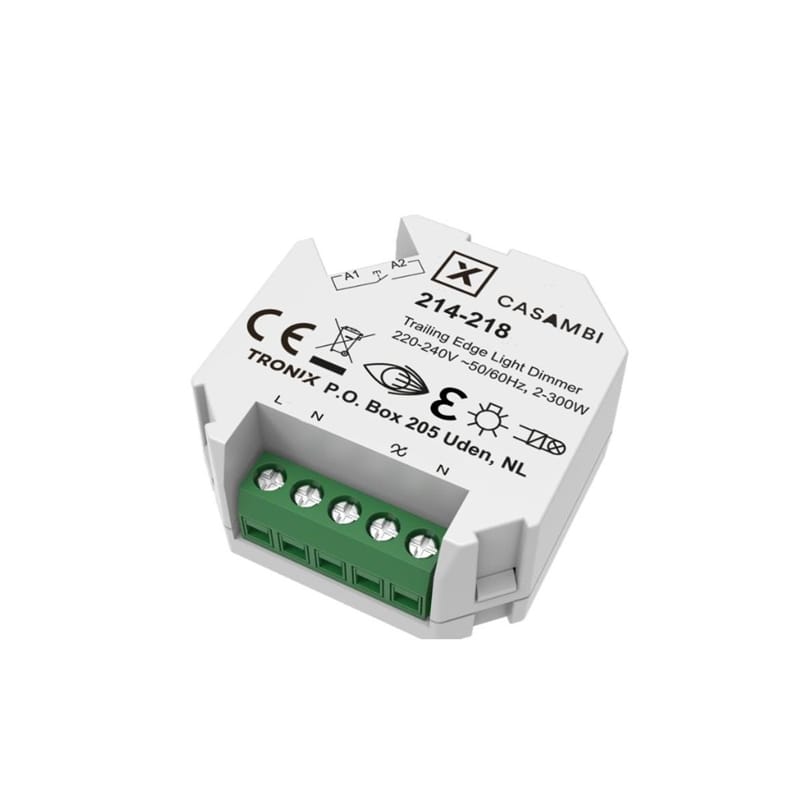

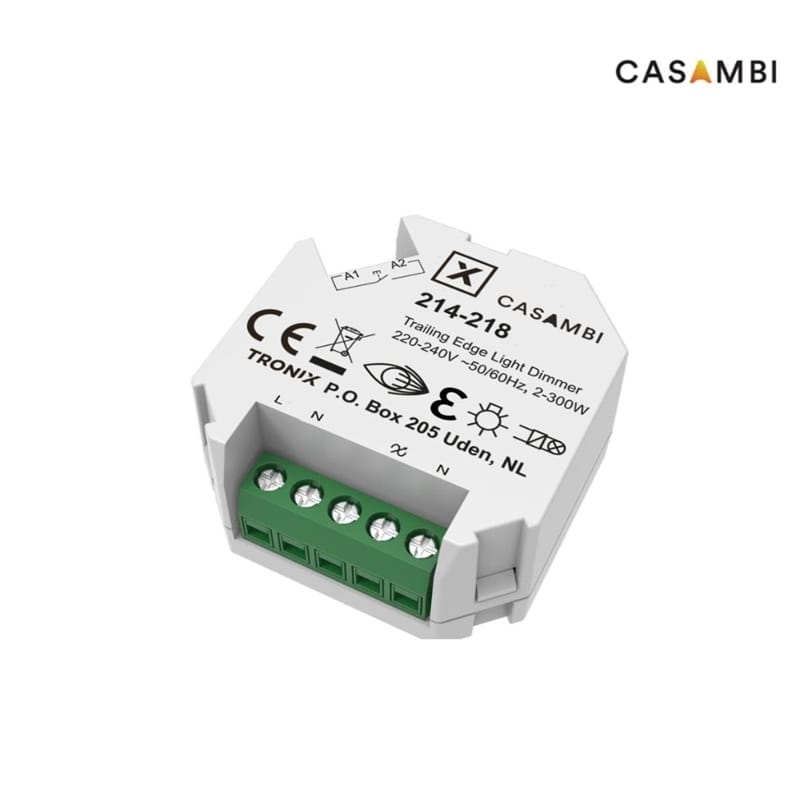

Casambi |push-dim triac dimmer/receiver | 230V | 2-180W | behind switch

Technical specifications: Casambi | Trailing Edge Light dimmer | 230V | 180W | recessed | LV push dim

• TypeControllers Single Color
• Nominal voltage220 – 240V
• Nominal power 180 Watt
• Outgoing current818 mA
• Number of channels1
• ProtocolCasambi
• DimmableYes
• IP classIP20
• Length45 mm
• Width45 mm
• Height22 mm
• ConnectionConnection block
• ColourWhite
• Ambient temperature-20°C / +40°C
• Quality markCE
• Warranty5 years

This trailing-edge dimmer is designed for seamless integration into Casambi networks. With adjustable minimum and maximum brightness, push-dim control, and a fade-in/fade-out function, this dimmer offers precise and convenient light control.

Its compact design allows for installation in a standard flush-mounted box, behind a conventional push button, in a ceiling or in a fixture. The dimmer operates on 220–240 VAC (50/60 Hz) and supports a maximum of 300 W for incandescent bulbs or 180 W for LED lighting (depending on the power factor).

The dimming range is from 0 to 100%, and the housing is IP20-rated and made of  PC material. Dimensions: 45 × 45 × 22 mm. Lifespan: up to 50,000 hours.

Casambi is a wireless lighting control system based on Bluetooth Low Energy (BLE). Lighting is controlled via smartphone, tablet, or wireless switch – without additional wiring or a central controller. Within the self-forming mesh network, functions such as group control, scenes, dimming curves and time schedules can be easily implemented. Thanks to its scalability, Casambi is suitable for both individual rooms and entire buildings.
