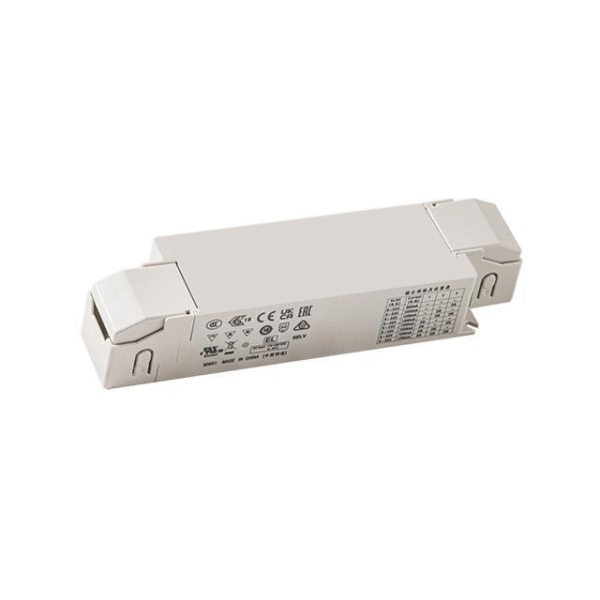

DALI 2+PUSH-DIM LED Driver selectable mA 300mA-1050mA | max 25W
147*40*32mm (L*W*H). Selectable mA, DALI-2 + Push dimming
39,00 €
Price without 24% VAT: 31,45 €
Constant power mode output with multiple mA selectable by dip switch or NFC setting (H-type). Default mA setting is on 700mA
Plastic Housing with class II/2 and PFC design
Flicker free, complying with IEEE1789/ErP
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty
147*40*32mm (L*W*H)
- 100…305V AC
- 141…400V DC
9-54V 300mA max 16,2W
9-54V 350mA max 18,9W
9-54V 400mA max 21,6W
9-50V 500mA max 25W
9-42V 600mA max 25,2W
9-36V 700mA max 25,2W (default)
9-28V 900mA max 25,2W
9-28V 900mA max 25,2W
9-24V 1050mA max 25,2W
- dip switch selectable output current level
- NFC
- PFC
| Safety Standards | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved | |||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load 50%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020, Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 1KV), EAC TP TC 020 | |||
