24V LED riba
15m LED AQUA860 CC 24V 12W IP68 120LED/m
Saadavus:
7-14 päeva
Separation point: 50mm with 6 SMD each | Pitch (chip centre-to-centre)
410,00 €
Price without 24% VAT: 330,65 €

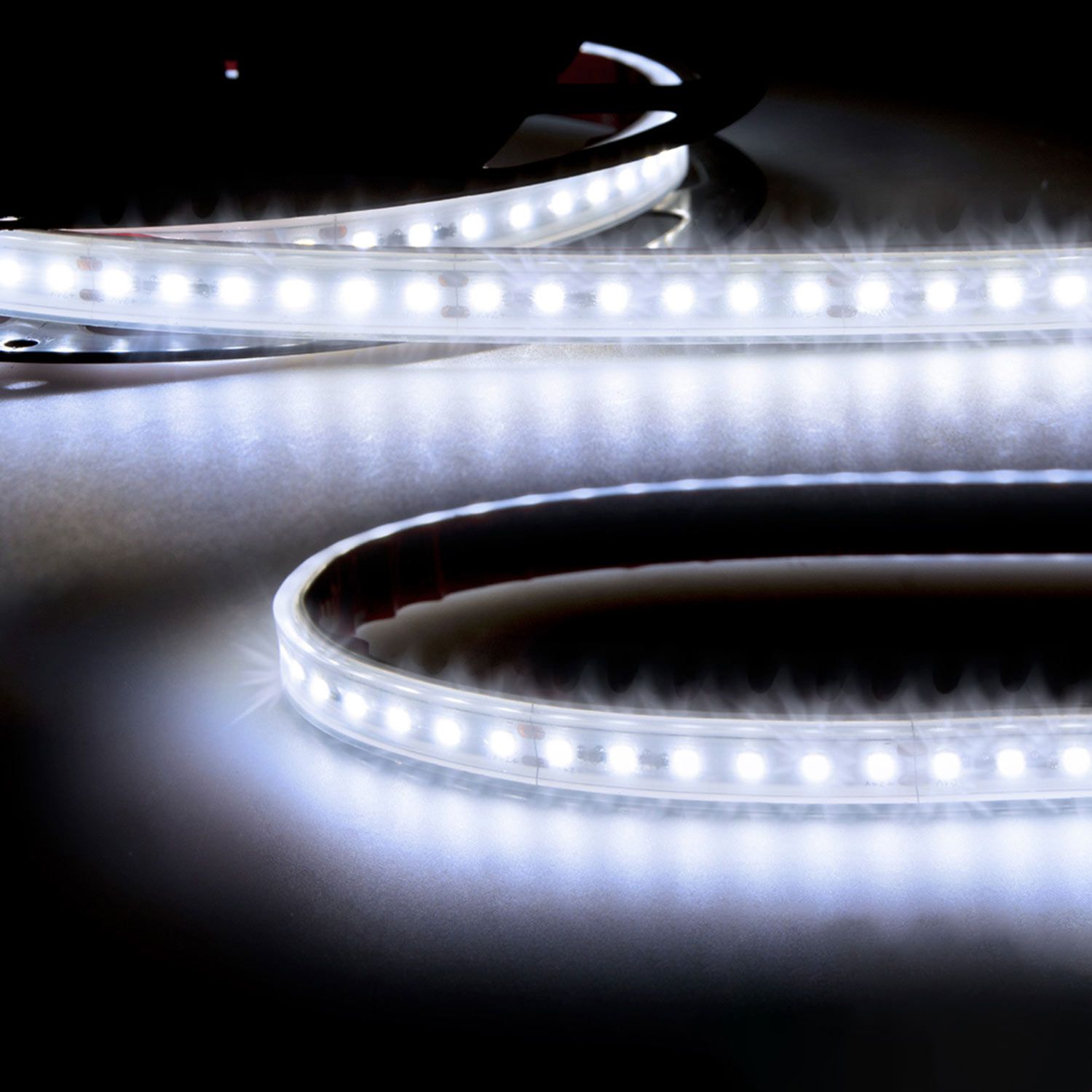

| Product description | LED AQUA860 CC flex stripe, 24V DC, 12W, IP68, 6000K, 15m roll, 120 LED/m |
|---|---|
| GTIN – EAN | 9009377049040 |
| Features |      |

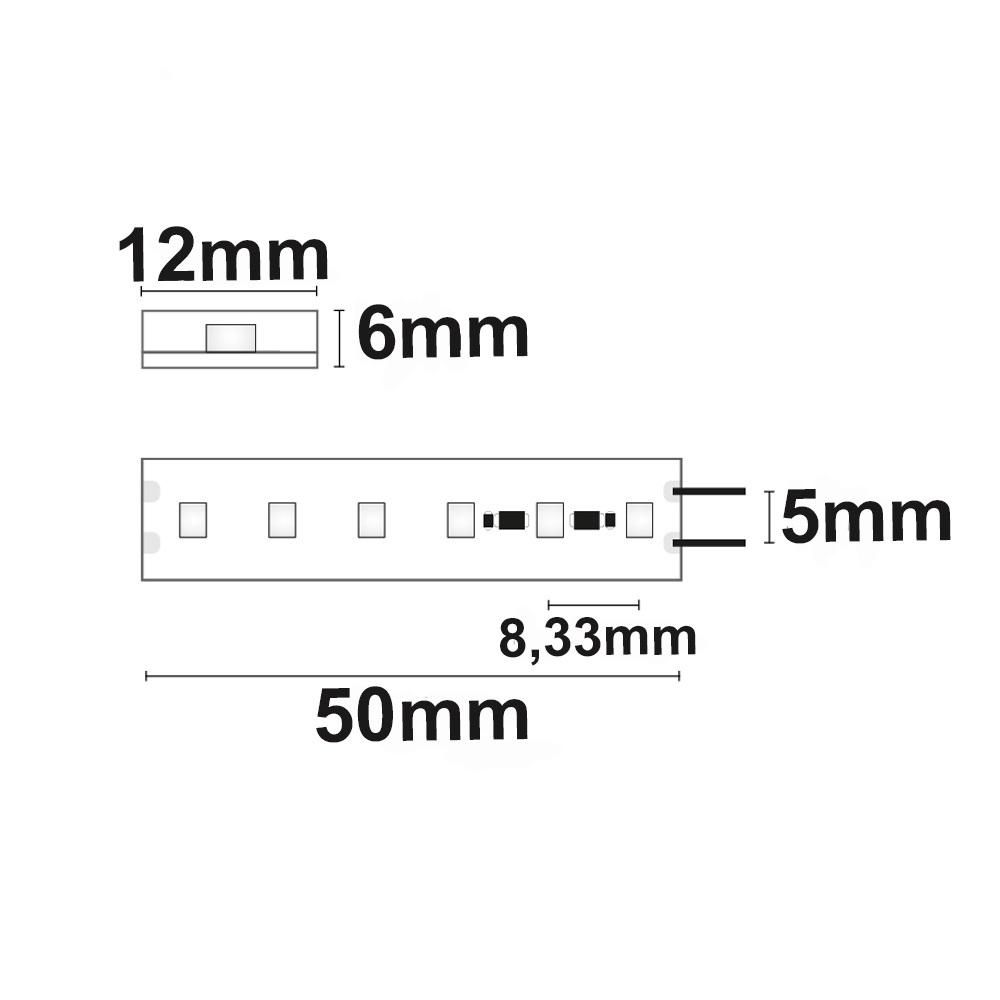

| Special features | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 15m | max. flex stripe length per infeed: 15m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | The connectors of the group fit: O1-212 | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24V DC |
| Rated power | 12 W/m |
| Active power | 11 W/m |
| Luminous flux in lumen | 1300 lm/m |
| RGB light source | No |
| Color temperature | 6000K |
| CRI Ra | 80 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Outdoor | yes |
| Permissible ambient temp. | -20°C – 40°C |
| Housing material | Silicone |
| Potting material | Silicone |
| LED chips per metre | 120.000000 |
| LED/roll | 1.800,00 |
| Properties of connection cable | Connection cable on both sides |
| Matching connectors | O1-212 |

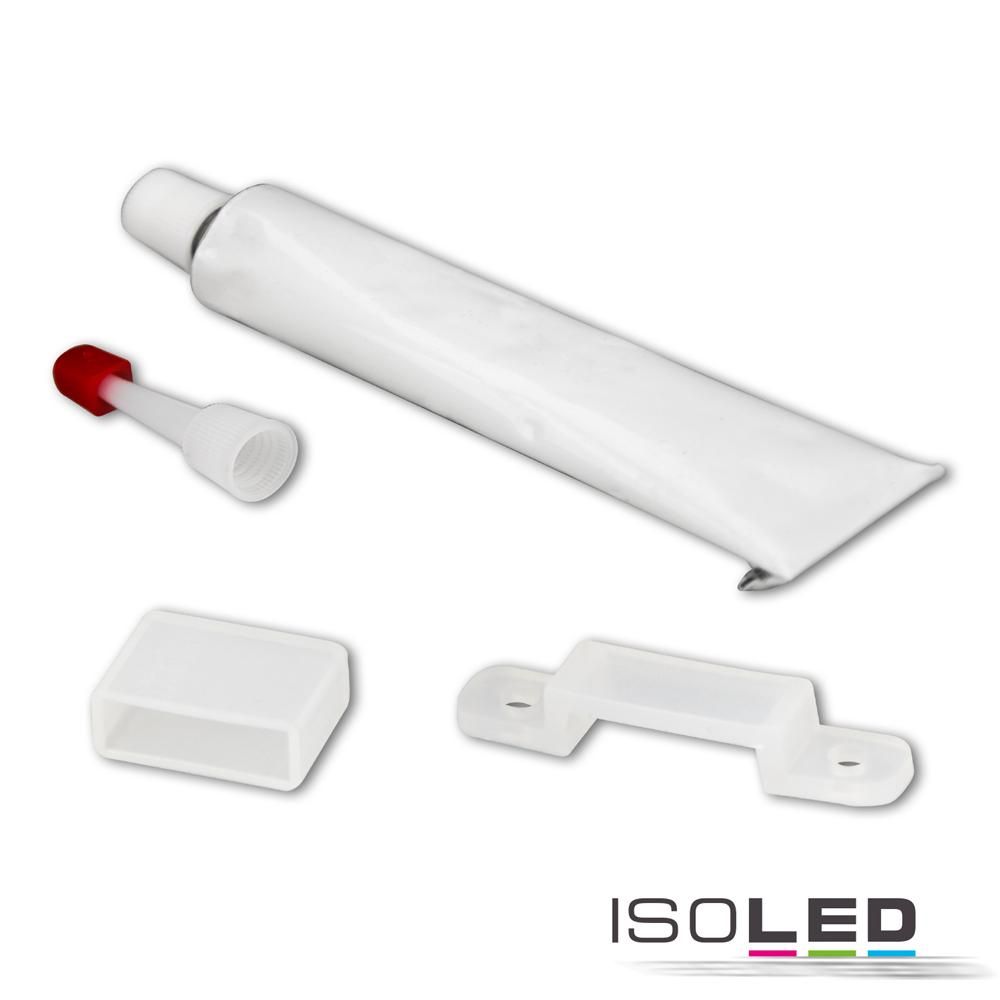

| Enclosed accessories | 4 end caps | 20 mounting brackets | adhesive |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 6.000000 |
| Pitch SMD (mm) | 8.33 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 15.00 m |
| Tape type | 3M 9080A |
| Width in mm | 12,0 |
| Length in mm | 15000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
Data
| Laius (mm) | |
|---|---|
| Töötemperatuur | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| LEDide arv x tüüp | |
| Korpuse värv | |
| Input | |
| Valgusvihu laius | |
| Tööiga L70 | |
| Pikkus(mm) | |
| Dimmerdatav (hämardatav) | |
| IP klass | |
| Värvieraldusindeks (CRI) | |
| Valguse toon | |
| Light output- Lumens | |
| Bränd | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
