24V LED riba, täpivabad COB LED ribad, Värvilised LED ribad
LED COB RGB 24V 14,4W IP20, 5m roll 10mm wide
Saadavus:
7-14 päeva
LED COB RGB 24V 14,4W IP20, 5m roll 10mm wide, cutting unit 50mm
144,00 €
Price without 24% VAT: 116,13 €
| Product description | LED COB RGB Linear flex stripe, 24V DC, 14,4W, IP20, 5m roll, 840 LED/m |
|---|---|
| GTIN – EAN | 9009377148064 |
| Features |    |

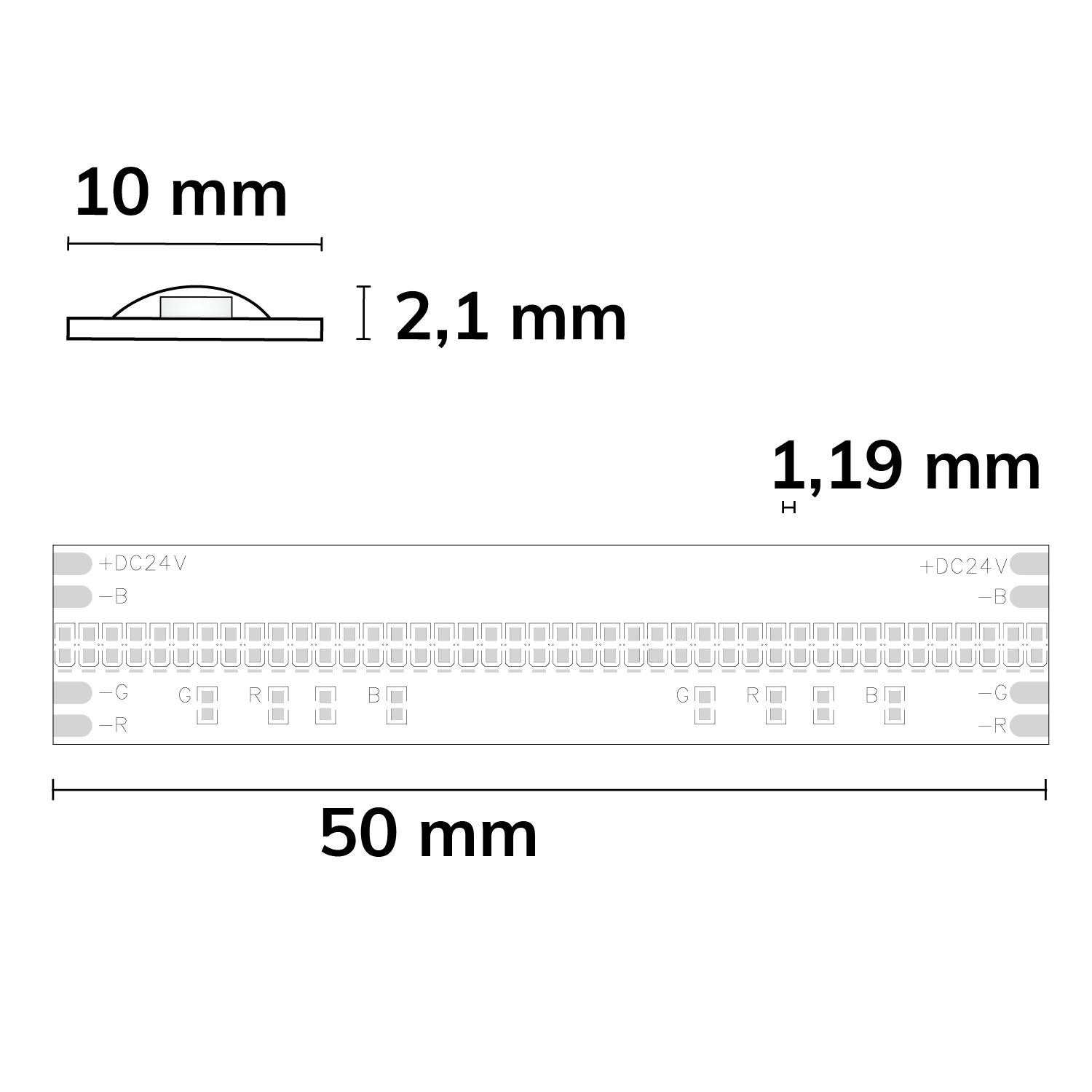

| Special features | Separation point: 50mm with 42 SMD each | Pitch (light point center-center): 1,19mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-410 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14,4 W/m |
| Active power | 14 W/m |
| RGB light source | Yes |
| Beam angle | 120° |
| Dimmable | Yes |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C – 40°C |
| LED chips per metre | 840.000000 |
| LED/roll | 4.200,00 |
| Properties of connection cable | Cable on 1 side |
| Matching connectors | K2-410 |
| Separation point (mm) | 50 mm |
| LED/disconnection point | 42.000000 |
| Pitch SMD (mm) | 1.19 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
Data
| Laius (mm) | |
|---|---|
| Pikkus(mm) | |
| Input | |
| Valgusvihu laius | |
| Tööiga L70 | |
| Töötemperatuur | |
| IP klass | |
| Dimmerdatav (hämardatav) | |
| Valguse toon | |
| Bränd | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
