24V LED riba, TOIDU/KAUPLUSE LED RIBAD

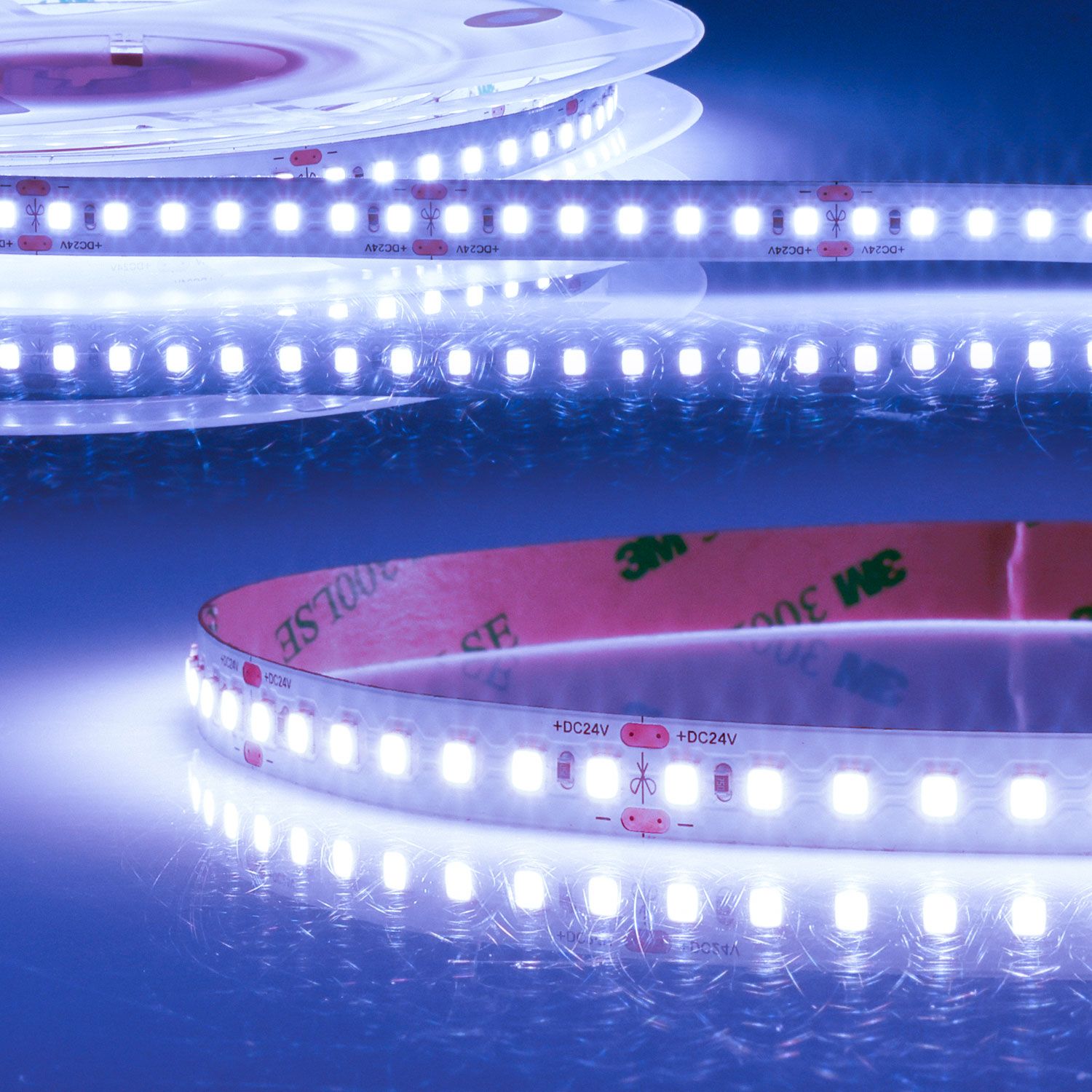

LED CRI Food flex stripe Fish 24V 14,4W, IP20, 5m roll, 140 LED/m
Saadavus:
7-14 päeva
LED CRI Food flex stripe Fish, 24V DC, 14,4W, IP20, 5m roll, 140 LED/m
94,00 €
Price without 24% VAT: 75,81 €
| Product description | LED CRI Food flex stripe Fish, 24V DC, 14,4W, IP20, 5m roll, 140 LED/m |
|---|---|
| GTIN – EAN | 9009377095320 |
| Features |      |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14,4 W/m |
| Active power | 14,4 W/m |
| RGB light source | No |
| Color temperature | 11600K |
| Beam angle | 120° |
| Dimmable | Yes |
| Protection class | IP20 |
| Outdoor | N |
| Permissible ambient temp. | -20°C – 45°C |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 140,000000 |
| LED/roll | 700,00 |
| Properties of connection cable | Cable on one end of the roll |
| Matching connectors | C1-210 / C2-210 / K1-210 / K2-210 |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 7,000000 |
| Pitch SMD (mm) | 7.14 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 3 |
