24V LED riba
LED CRI927 Linear8 strip 24V 15W/m 2700K 1350lm/m 280LED/m 5m
Saadavus:
7-14 päeva
LED CRI927 Linear8 strip 24V 15W/m 2700K 1350lm/m 280LED/m 5m
99,00 €
Price without 24% VAT: 79,84 €

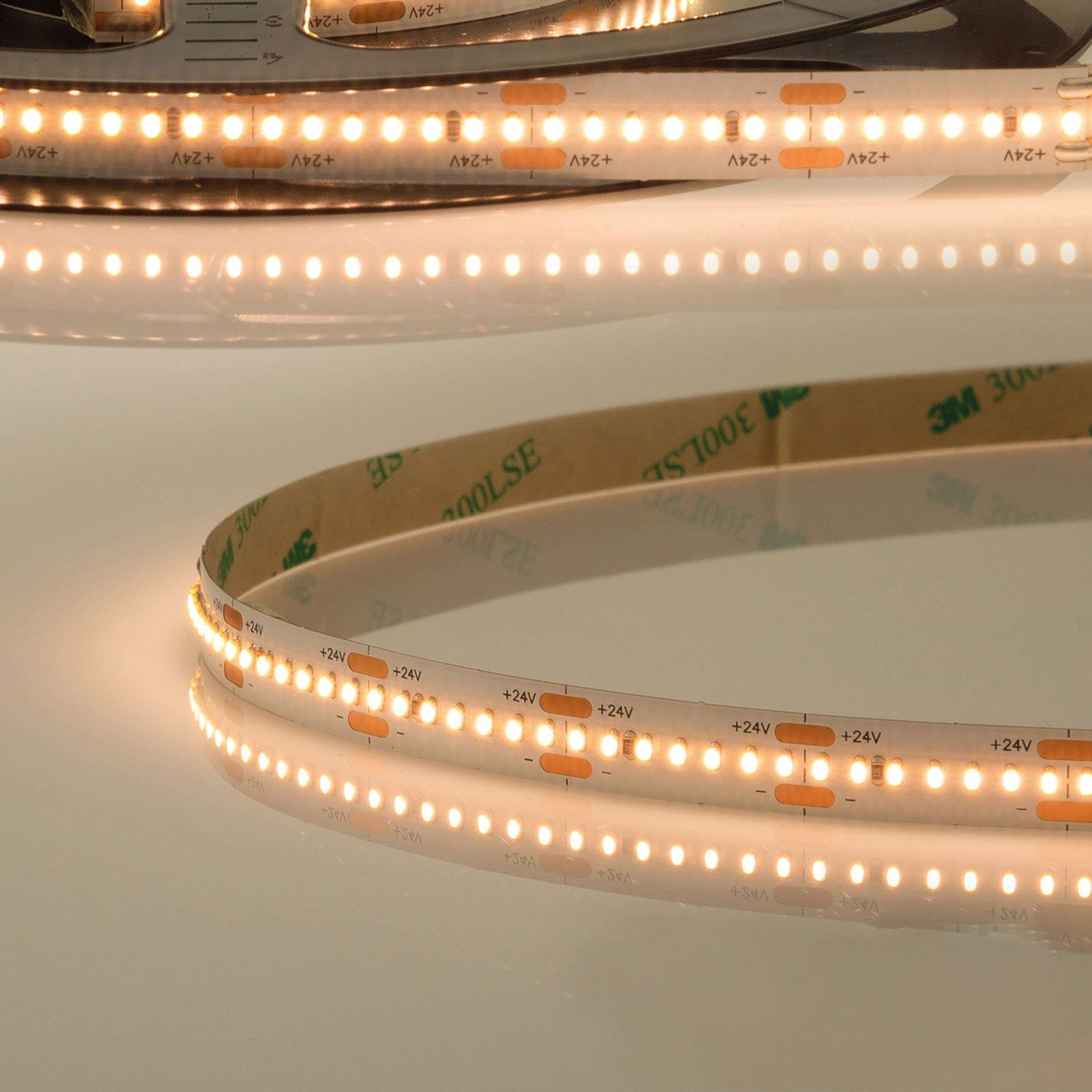

| Product description | LED CRI927 Linear8 flex stripe, 24V DC, 15W, IP20, 2700K, 5m roll, 280 LED/m |
|---|---|
| GTIN – EAN | 9009377086359 |
| Features |      |
| Special features | Separation point: 25mm with 7 SMD each | Pitch (light point center-center): 3,57mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-28 | Special feature: connection cable on both sides |
| Nominal voltage | 24V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| Efficiency in LM | 90 |
| Luminous flux in lumen | 1350 lm/m |
| RGB light source | No |
| Color temperature | 2700K |
| Permissible ambient temp. | 0°C – 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 92 |

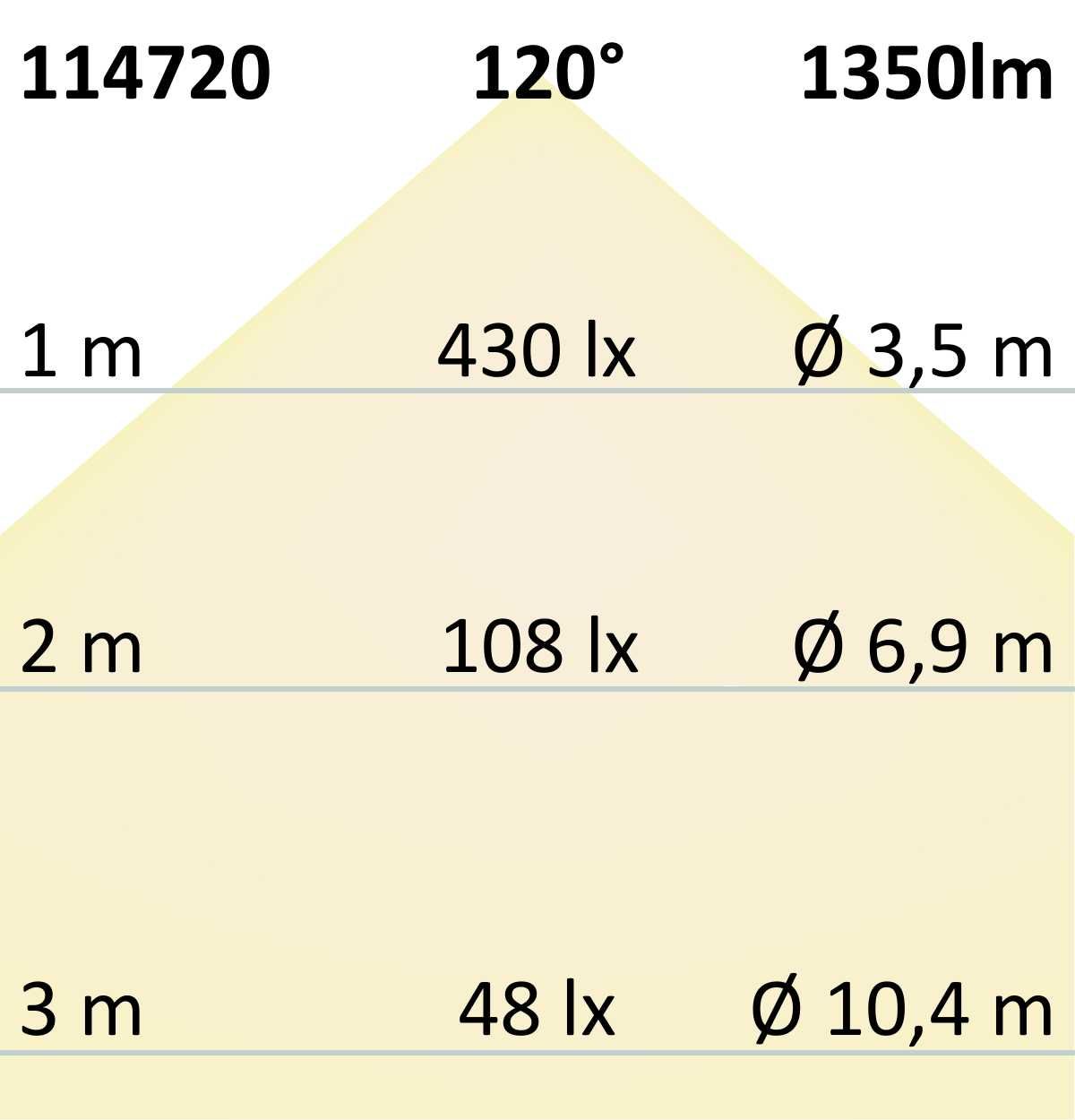

| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| LED chips per metre | 280.000000 |
| LED/roll | 1.400,00 |
| Properties of connection cable | Connection cable on both sides |
| Matching connectors | K2-28 |
| Separation point (mm) | 25.00 mm |
| LED/disconnection point | 7.000000 |
| Pitch SMD (mm) | 3.57 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 100 |
| Width in mm | 8,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
Data
| Kõrgus(mm) | |
|---|---|
| Dimmerdatav (hämardatav) | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| Bränd | |
| Light output- Lumens | |
| Valguse toon | |
| Värvieraldusindeks (CRI) | |
| Laius (mm) | |
| Töötemperatuur | |
| IP klass | |
| Tööiga L70 | |
| Valgusvihu laius | |
| Input | |
| Korpuse värv | |
| LEDide arv x tüüp | |
| Pikkus(mm) | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
