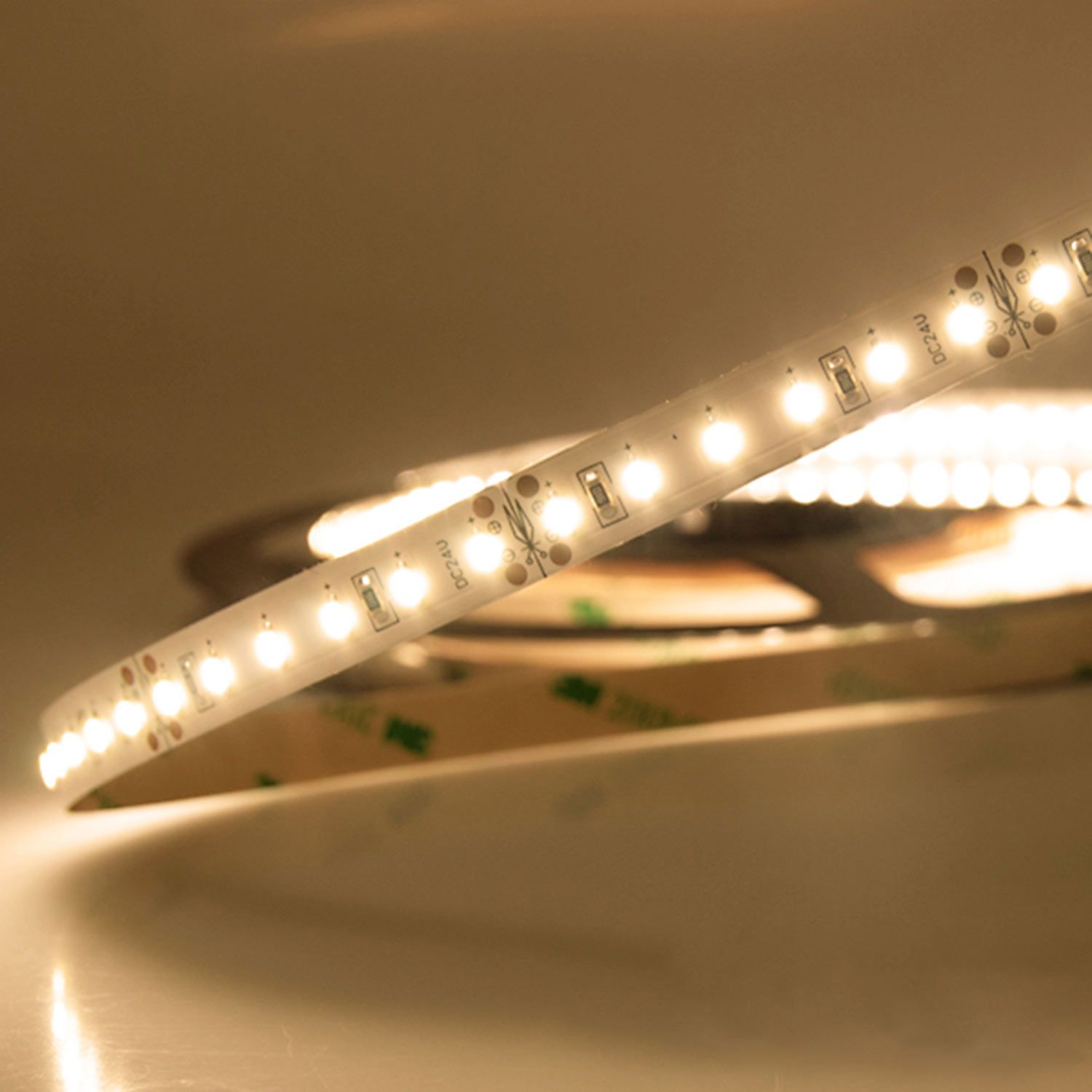

12mm LED HEQ825 strip 24V 16W 1400lm/m 2500K 120LED/m 5m roll
82,00 €
Price without 24% VAT: 66,13 €
| Product name | LED HEQ825 Flexband Classic, 24V DC, 16W, IP20, 2500K, 5m roll, 120 LED/m |
|---|---|
| GTIN – EAN | 9009377019883 |
| Features |      |
| Special features | Cut point: 50mm with 6 SMD LEDs each | Pitch (center-to-center of light spot): 8.33mm | 1 unit (roll) = 5m | Max. flexible strip length per feed: 5m | Length tolerance + thermal expansion: 1% | Required heat sink: min. 75 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before applying! Do not remove once applied! | SPECIAL FEATURE: Connection cable on both ends |
| Nominal voltage | 24 V DC |
| Rated output | 16 W/m |
| Active power | 15 W/m |
| Efficiency in lm/W | 93 |
| Luminous flux in lumens | 1400 lm/m |
| RGB light source | No |
| Color temperature | 2500K |
| permissible ambient temperature | 0°C – 40°C |
| Maximum ambient temperature in °C | 40 |
| Minimum ambient temperature in °C | 0 |
| CRI Ra | 82 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimmart | PWM |
| Dimming specifications | Dimmable via PWM (pulse width modulated DC voltage supply) using a pre-connected controller or dimmable transformer |
| Protection class | IP20 |
| LED chips per meter | 120,000,000 |
| LED/Roll | 600.00 |
| Condition of connecting cable | Connection cable on both sides |
| Cut point (mm) | 50.00 mm |
| LED/Disconnect point | 6,000,000 |
| SMD pitch (mm) | 8.33 |
| Cooling mass g/m | 75.00 g/m² |
| Max. length per feed (m) | 5.00 m |
| Adhesive tape type | 3M 300LSE |
| Weight in grams | 120 |
| Width in mm | 12.0 |
| Length in mm | 5000.0 |
| Height in mm | 1.0 |
| Service life L70|B10 in hours | 52000 |
| Service life L70|B50 in hours | 78000 |
| Service life L80|B50 in hours | 68000 |
| Warranty in years | 2 |
| Kõrgus(mm) | |
|---|---|
| Dimmerdatav (hämardatav) | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| Bränd | |
| Light output- Lumens | |
| Valguse toon | |
| Värvieraldusindeks (CRI) | |
| Laius (mm) | |
| Töötemperatuur | |
| IP klass | |
| Tööiga L70 | |
| Valgusvihu laius | |
| Input | |
| Korpuse värv | |
| LEDide arv x tüüp | |
| Pikkus(mm) | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
