24V LED riba, MINIAMP 24V FAST CONNECT

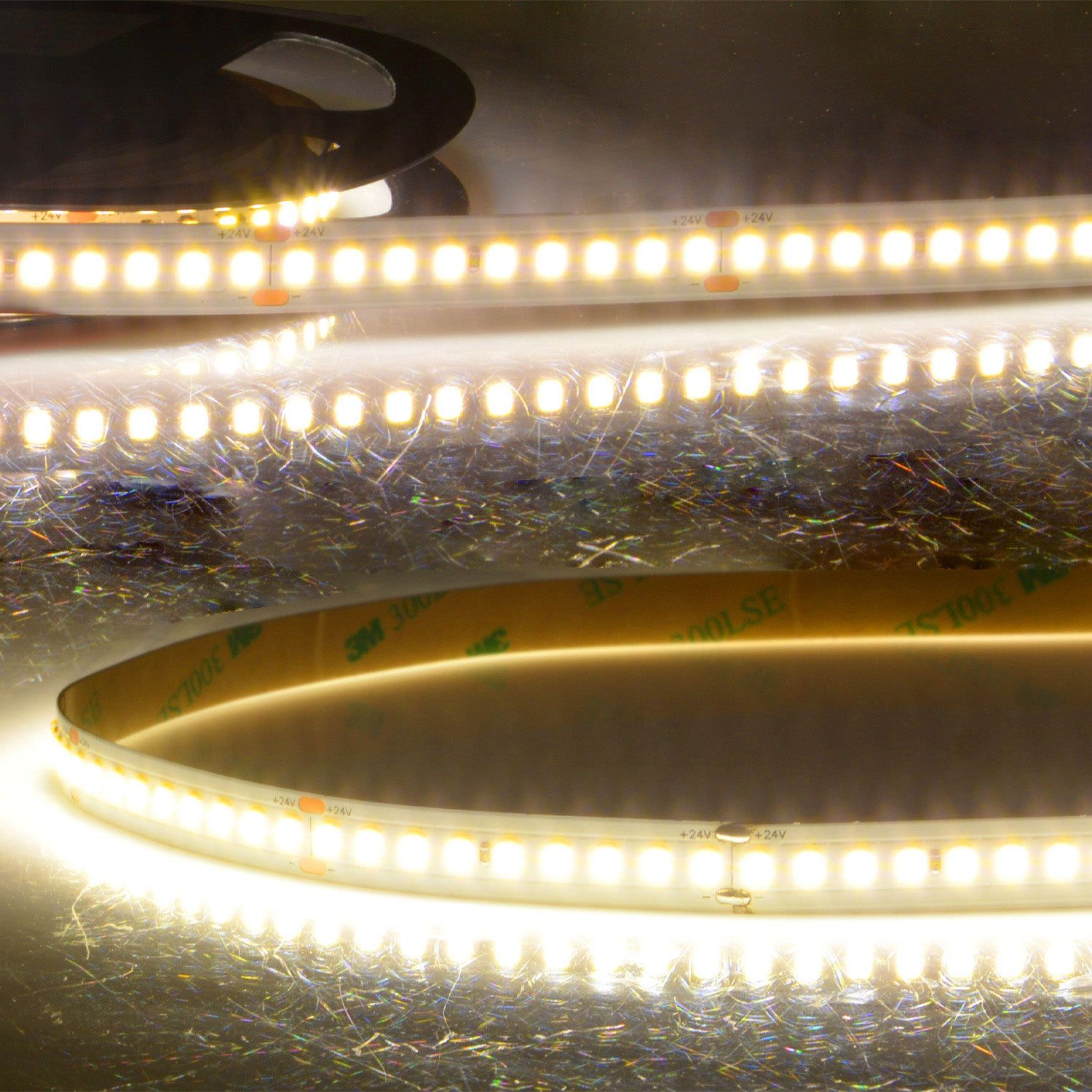

LED HEQ830 1230lm/m 24V 6W 3000K 180LED/m
Saadavus:
7-14 päeva
LED HEQ830 LED 200lm/W 24V DC, 6W 1230lm/m IP20, 3000K, 5m roll, 180 LED/m
94,00 €
Price without 24% VAT: 75,81 €
| Product description | LED HEQ830 LED 200lm/W 24V DC, 6W 1230lm/m IP20, 3000K, 5m roll, 180 LED/m |
|---|---|
| GTIN – EAN | 9009377098536 |
| Features |       |

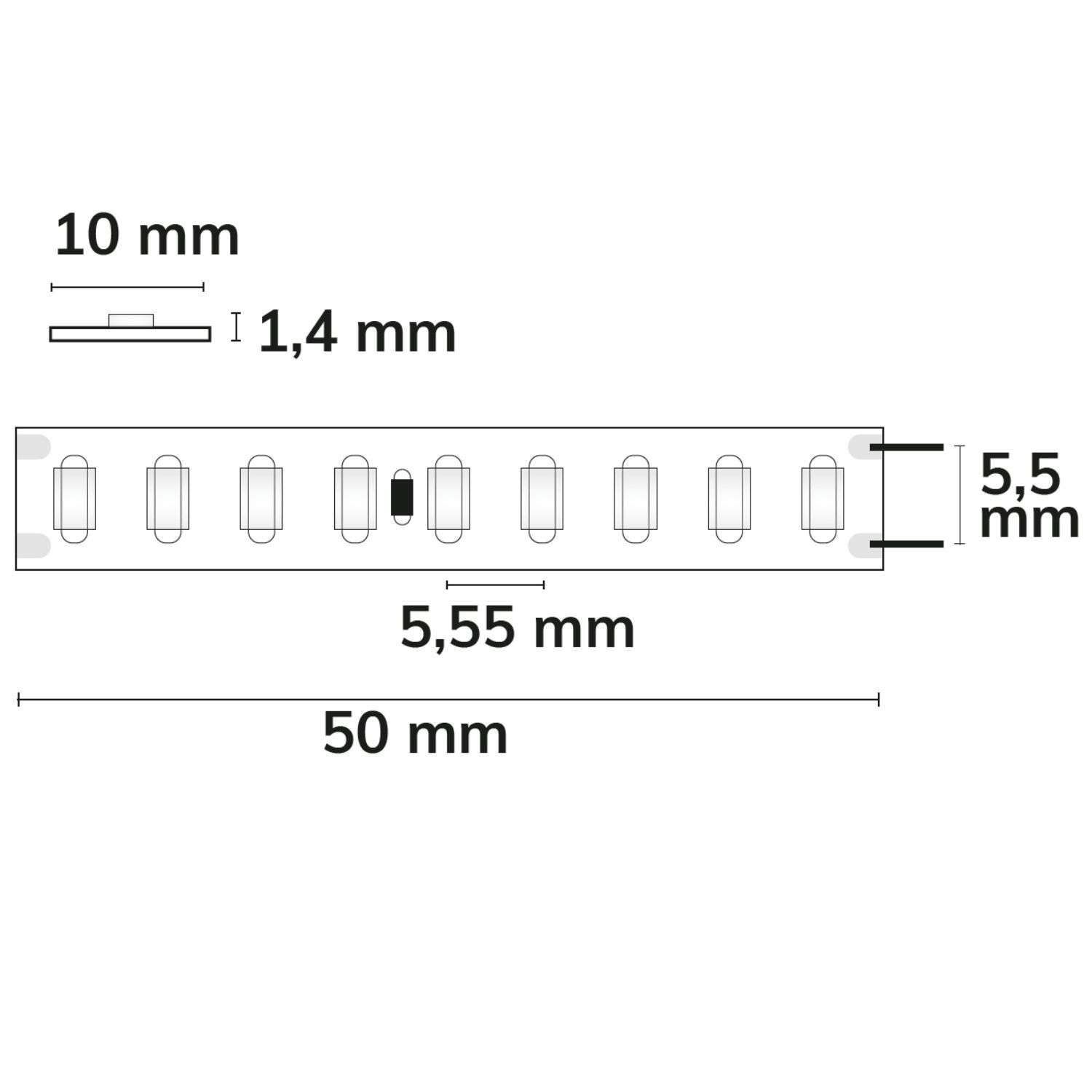

| Special features | Separation point: 50mm with 9 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24V DC |
| Rated power | 6 W/m |
| Active power | 6 W/m |
| Efficiency in LM | 205 |
| Luminous flux in lumen | 1230 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | 0°C – 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 84 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| LED chips per metre | 180.000000 |
| LED/roll | 900,00 |
| Properties of connection cable | Connection cable on both sides |
| Matching connectors | K2-210 |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 9.000000 |
| Pitch SMD (mm) | 5.56 |
| Cooling mass g/m | 45.00 g/m |
| Max. length per feed (m) | 10.00 m |
| Tape type | 3M 9080A |
| Weight in gramm | 120 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
Data
| Kõrgus(mm) | |
|---|---|
| Töötemperatuur | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| Pikkus(mm) | |
| LEDide arv x tüüp | |
| Input | |
| Valgusvihu laius | |
| Tööiga L70 | |
| Laius (mm) | |
| Dimmerdatav (hämardatav) | |
| IP klass | |
| Värvieraldusindeks (CRI) | |
| Valguse toon | |
| Light output- Lumens | |
| Bränd | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
