NB! driver not included! Tronix modules are equipped with a fast connector to connect to a module-extension cable (up to 10 meters), a module-divider (up to 6 pieces), or directly to a Tronix driver.
This makes even the most complicated lighting plans easy to realize!
Specifications
• Excellent color rendering CRI >90
• Perfectly compatible with protocols> DALI, Casambi, Triac, 110V (choose driver accordingly)
• Good heat dissipation and long lifespan
• High quality aluminum with powder coating, or aluminum anodized
Porchlight module: IP44 modules specially designed for porches and overhangs.
Cabinet module: Shallow modules (18,5 mm) for undeep applications such as cabinet shelves or furniture.
Technical data: LED spot | cabinet | 700mA | 2,5W | alu | 3000K
- TypeFurniture Module
- Input current700 mA
- Input voltage3,6V
- Power2,5 Watt
- Luminous flux129 Lm
- Color temperature3000K
- Light colorWarm white
- DimmableYes
- LED typeCREE XP-E
- LED quantity1
- LifetimeL70B50 (30.000 hours)
- CRI value>90
- DriverExcluded
- Power factor>0.90
- Beam angle90°
- AdjustableNo
- IP rateIP44
- MountingRecessed

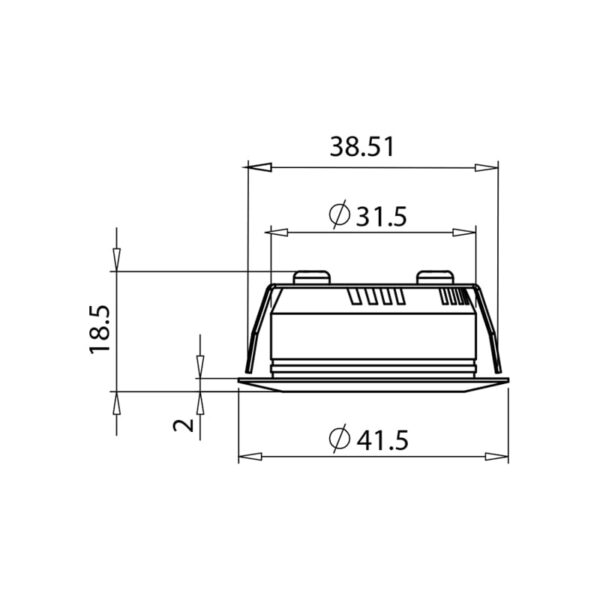

- DiameterØ 41,5 mm
- Mounting holeØ 34 mm
- Mounting depth18,5 mm
- Connection typeModular plug
- Cable length100 cm
- Housing materialAluminium
- Housing colorAluminium
- Certification markCE, RoHS
- Warranty3 years
