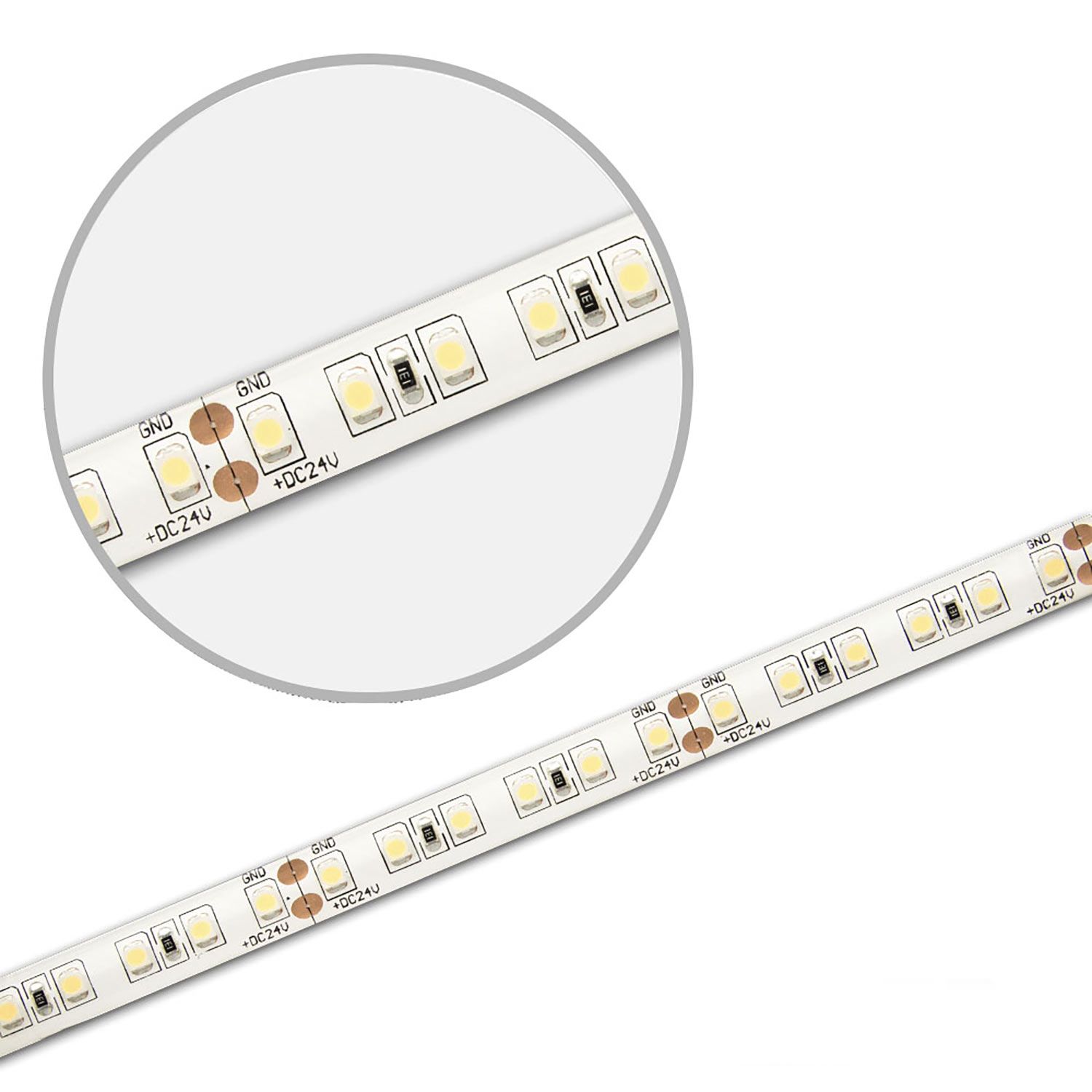

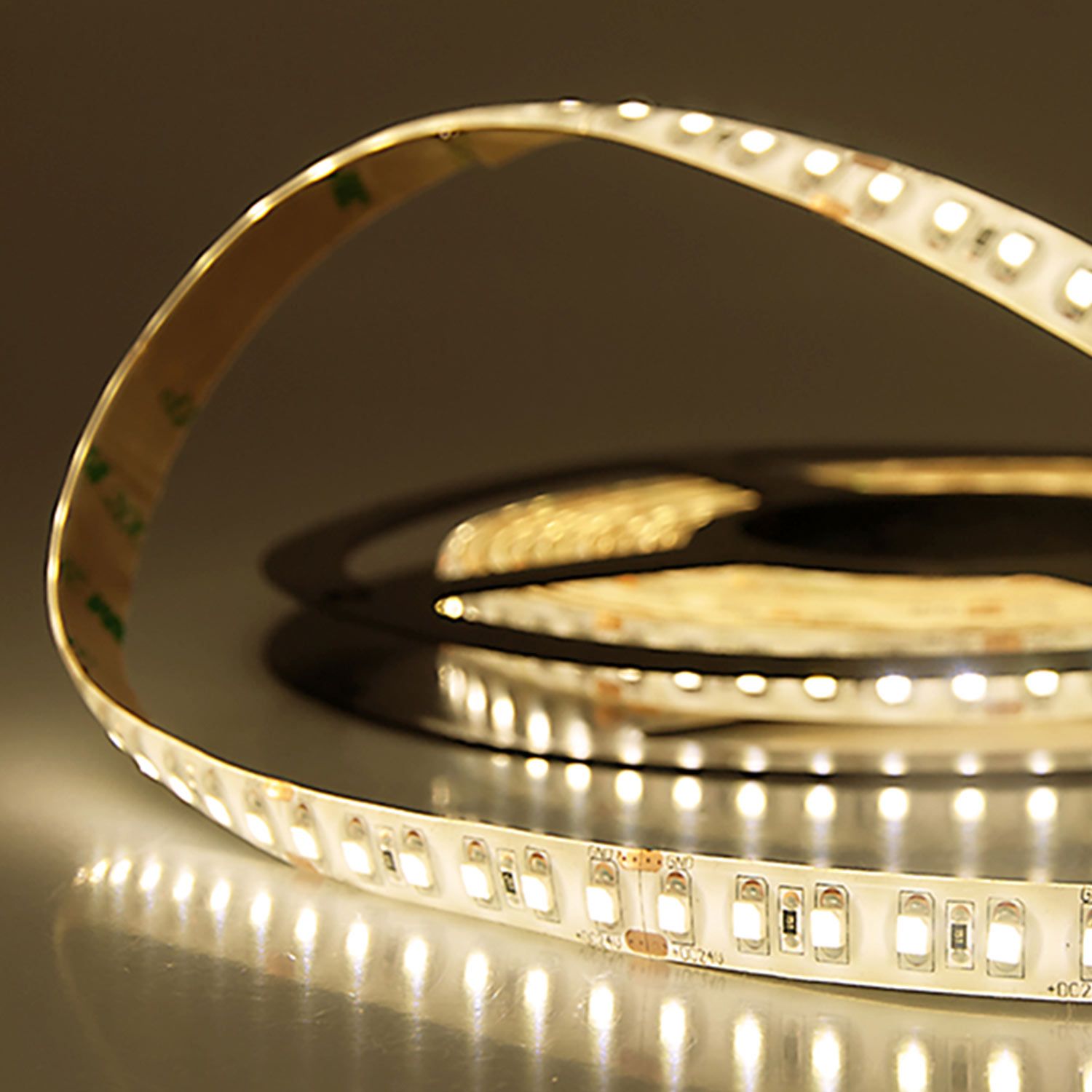

LED SIL830 srip 24V 9.6W IP66 3000K 750lm/m 120LED/m 5m roll
54,00 €
Price without 24% VAT: 43,55 €
| Product description | LED SIL830 flex stripe, 24V DC, 9,6W, IP66, 3000K, 5m roll, 120 LED/m |
|---|---|
| GTIN – EAN | 9009377019746 |
| Features |       |

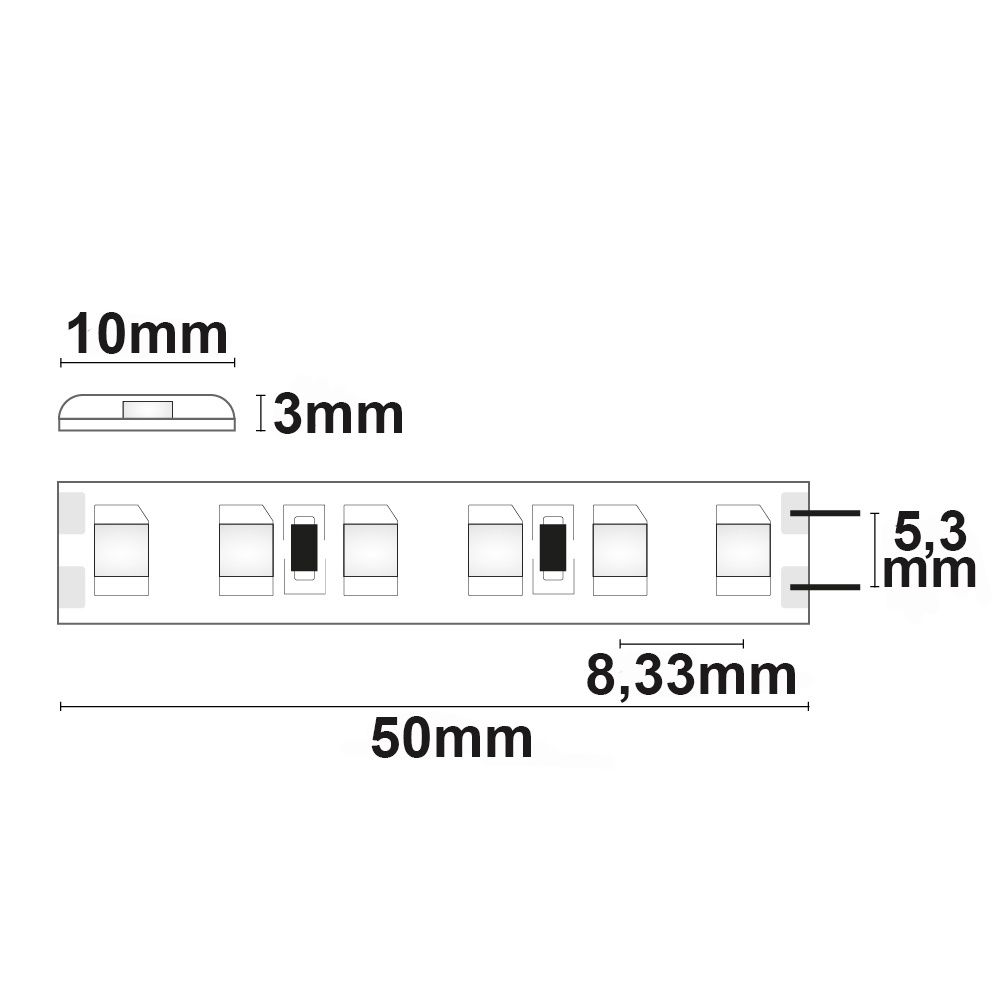

| Special features | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 8m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 24V DC |
| Rated power | 9,6 W/m |
| Active power | 9,6 W/m |
| Efficiency in lm/W | 78 |
| Luminous flux in lumen | 750 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | -20°C – 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 85 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP66 |
| Housing material | Silicone |
| Potting material | Silicon |
| LED chips per metre | 120.000000 |
| LED/roll | 600,00 |
| Properties of connection cable | Connection cable on both sides |
| Separation point (mm) | 50.00 mm |
| LED/disconnection point | 6.000000 |
| Pitch SMD (mm) | 8.33 |
| Cooling mass g/m | 45.00 g/m |
| Max. length per feed (m) | 8.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 196 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Laius (mm) | |
|---|---|
| Töötemperatuur | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| LEDide arv x tüüp | |
| Korpuse värv | |
| Input | |
| Valgusvihu laius | |
| Tööiga L70 | |
| Pikkus(mm) | |
| Dimmerdatav (hämardatav) | |
| IP klass | |
| Värvieraldusindeks (CRI) | |
| Valguse toon | |
| Light output- Lumens | |
| Bränd | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Voolutarve/Max W |
