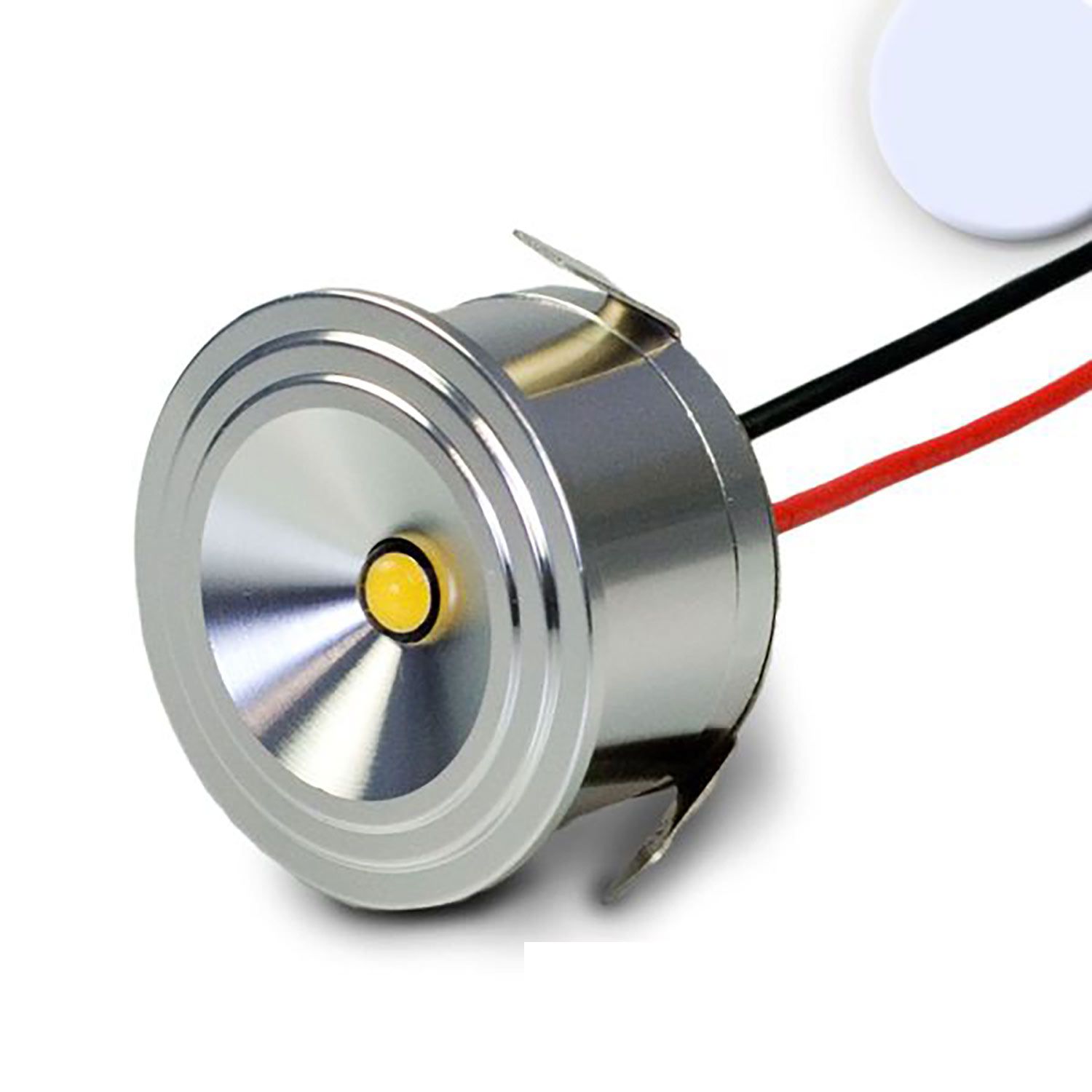

LED spot MINI, MINIAMP 12V FAST CONNECT
LED spot, 1x3W, 12V or 700mA, 100°, cold white
Saadavus:
7-14 päeva
LED 6000K 170lm IP54 30x18mm. incl. Mini-Amp connector, power supply with 12V DC via included Conver
17,00 €
Price without 24% VAT: 13,71 €
| Product description | LED spot, 1x3W, 12V or 700mA, 100°, cold white |
|---|---|
| GTIN – EAN | 9009377008887 |
| Features |   |
| Special features | incl. Mini-Amp connector, power supply with 12V DC via included conversion driver (wired in parallel) or without conversion driver (wired serially in series) via 700mA constant current transformer |
| Nominal voltage | 12 V DC |
| Rated power | 3 W |
| Active power | 2,7 W |
| Luminous flux in lumen | 170 lm |
| Color temperature | 6000K |
| CRI Ra | 80 |

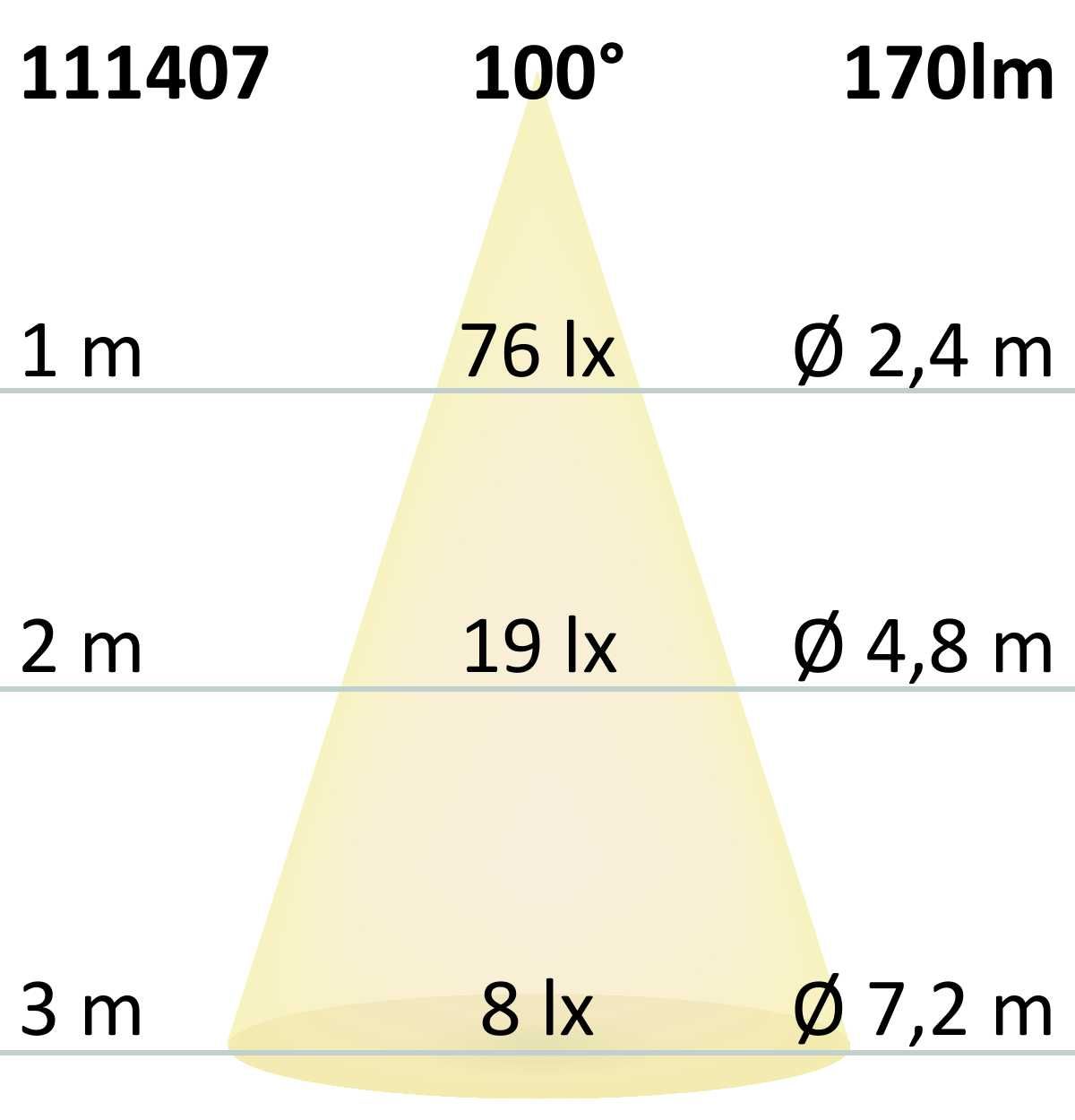

| Beam angle | 100° |
| Beam angle type | fixed |
| Dimmable | No |
| Protection class | IP54 |
| Permissible ambient temp. | -20°C – 40°C |
| Housing material | aluminum |
| Housing color | silver/grey |
| Weight in gramm | 90 |

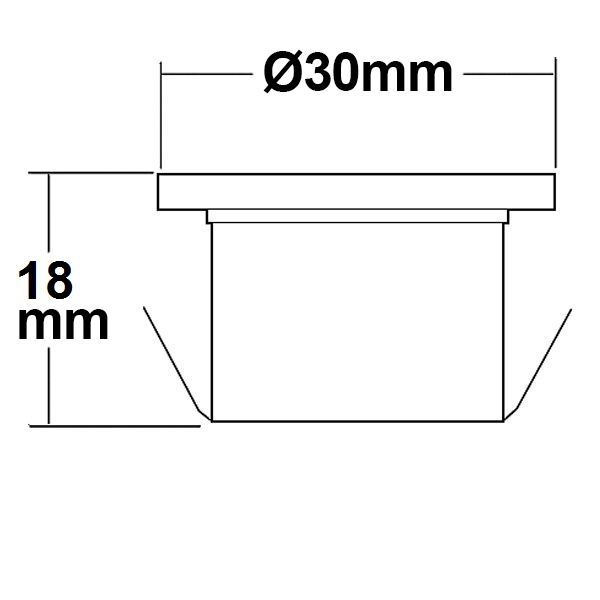

| Height in mm | 18,0 |
| Diameter in mm | 30 |
| Hole cut-out | 26 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 15,1 |
| SELV | N |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 2 |
| Hole cutout type | Circle |
Data
| Kõrgus(mm) | |
|---|---|
| Dimmerdatav (hämardatav) | |
| Laos (Peetri, Vana-Tartu mnt 79A) | Ei |
| Input | |
| Valgusvihu laius | |
| Tööiga L70 | |
| Töötemperatuur | |
| IP klass | |
| LEDide arv x tüüp | |
| Laius (mm) | |
| Värvieraldusindeks (CRI) | |
| Süvistatav osa (mm) | |
| Valguse toon | |
| Light output- Lumens | |
| Voolutarve/Max W | |
| Bränd | |
| Tarneaeg (kui toode ei ole Eesti laos) | 7-14 päeva |
| Korpuse värv |
