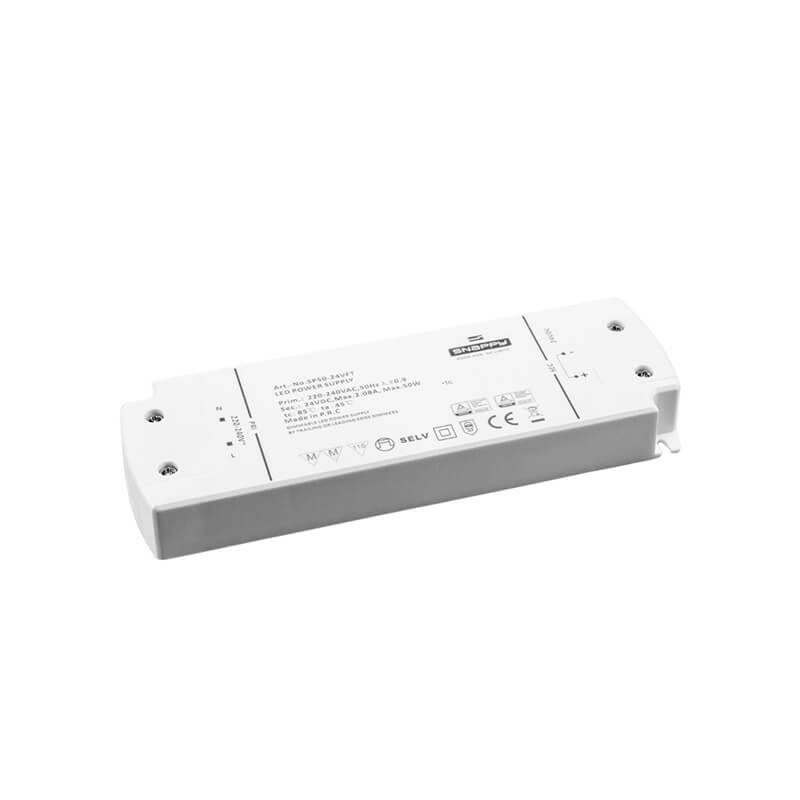

Snappy | SP50-24VFT | 24V | 50W | Triac Dimmable | SELV power supply

Snappy | SP50-24VFT | 24V | 50W | Triac Dimmable | SELV power supply

Saadavus:

Lisa soovide nimekirja

Võrdle

56,00 €

Price without 24% VAT: 45,16 €

Add to quote

Slim SP50-24VFT power supply makes dimming 24V LEDs on a phase cut basis possible. In addition, this LED power supply features up-to-date protection in terms of short circuit, overload and overheating. This ensures a longer lifespan for both the power supply and the LED lamps present.

Features

• Maximum power rating of 50 watts
• Compact design for easy installation
• IP20 certified for indoor use

Technical data: Snappy | SP50-24VFT | 24V | 50W | triac dimmable

Input voltage 220-240V
Maximum Power 50 Watt
Output voltage24 Volt
Dimmable Yes
Protocol Triac
Power factor>0.95
Working temperature-20°C / +50°C
IP rate IP20

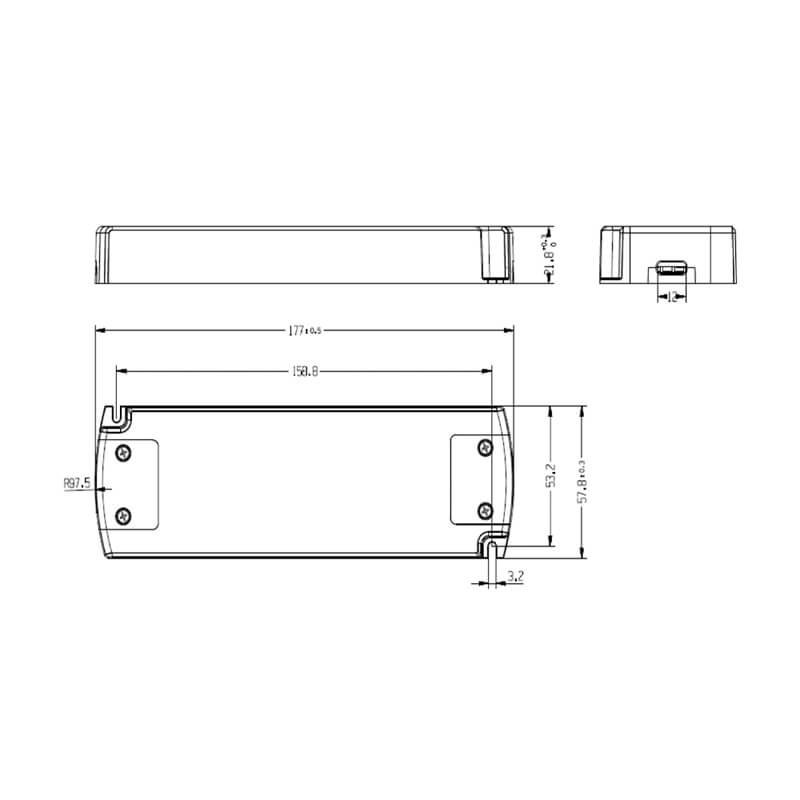

Length 177 mm
Width 57.8 mm
Height 21.8 mm
Cable lengthN/a
Connection typeTerminal block
Housing colorWhite
Maximum temperature housing80°C
Certification markCE
StandardsEN61347-1，EN61347-2-13，EN62384, EN55015，EN61000-3-2，EN61000-3-3，EN61547
Warranty5 years

Tootekood: TRX-215-520 Kategooria: 24V LED trafo Brand: Tronix

Data

Laos (Peetri, Vana-Tartu mnt 79A)	Ei
Bränd	TRONIX LIGHTING
Input	220-240V
Väljundpinge	24 V DC
Dimmerdatav (hämardatav)	Jah
Protocol	Triac
Võimsusfaktor	>0.95
IP klass	IP20
Pikkus(mm)	177
Laius (mm)	57.8 mm
Kõrgus(mm)	21.8 mm
Ühenduse tüüp	Terminal block
Korpuse värv	Valge
Töötemperatuur	-20°C / +50°C
Sertifikaadid	CB, CCC, CE, ENEC
Garantii	5 aastat
Voolutarve/Max W	50W
